HW25 series


Modular Video wall splice processor

Support HDMI VGA Composite USB input, up to 25 screen splicing


Products / Video Wall

Flexible expansion

Support modular design can output a 10-25 screen splicing Video wall.

Multiple interface input

It supports 4 kinds of interface input of HDMI/ VGA/ Composite/ USB.

Mirror function

It has a 180-degree mirror flip function for each display unit.

Picture edge processing

There will be frame gaps between spliced TVs, and the picture after edge processing is not deformed or stretched, and the vision is more natural.

Independent audio

Support 3.5mm port input and output.

USB playback

Support some images, pictures, MP3, TXT files commonly used in USB mobile drives.

Feature

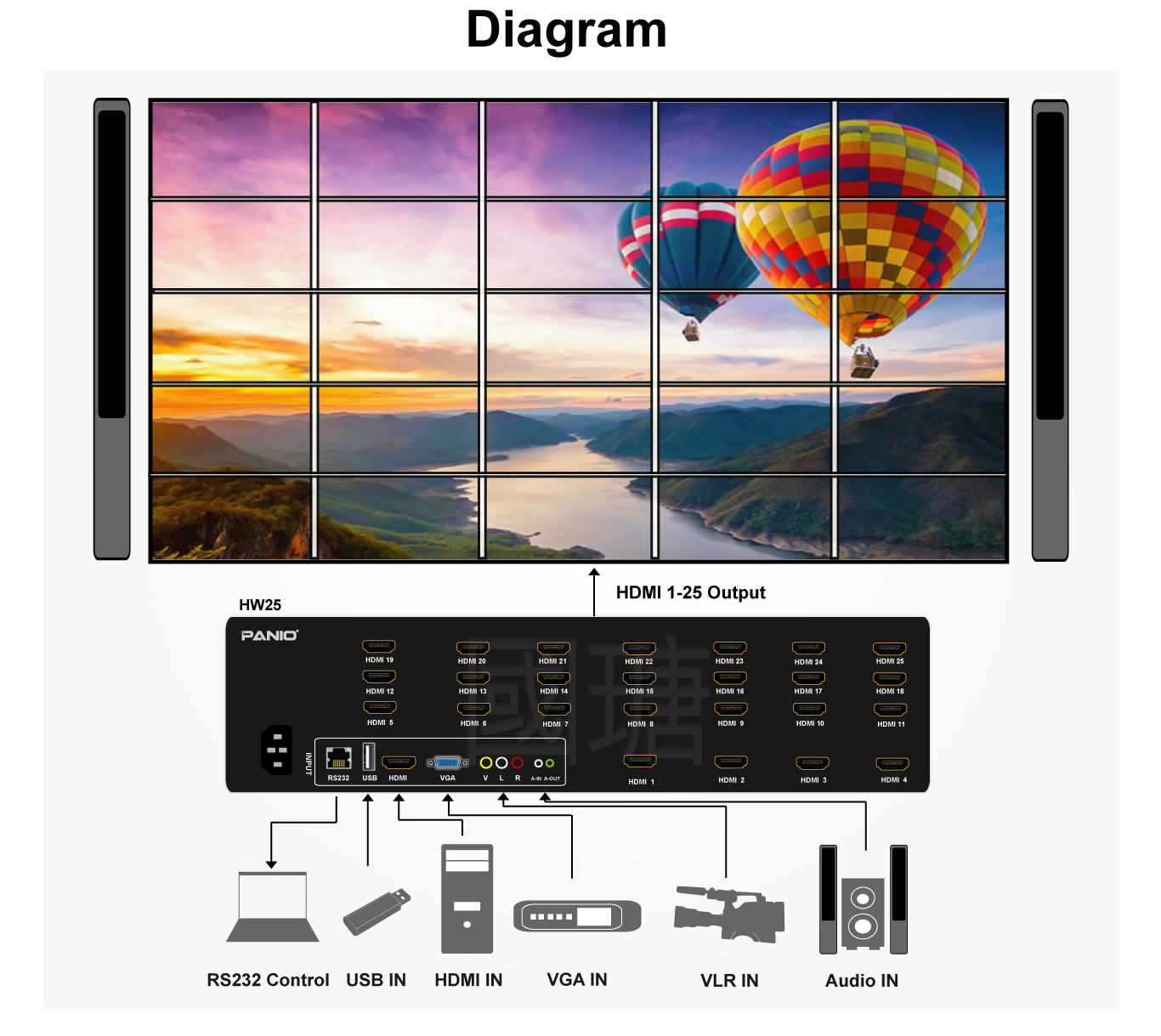

  • Can be flexibly customized 2x5..5x2 5x3 5x4 5x5 up to 25 screen splicing video walls.
  • Supports HDMI/ VGA/ Composite/ USB interface switching input for mixed and matched signals.
  • Support USB2.0 Hub, can connect to USB peripheral devices.
  • Built-in 3.5mm port for external speakers.
  • The input and output resolution can reach up to 1920x1080 60Hz.
  • Support 180°rotation of the screen.
  • It can be controlled by remote control / buttons / RS-232.
  • Support video loop playback, pause, fast forward, program menu and other functions.
  • Pure hardware design, plug and play, no need to install additional software.

Specification

Model Name HW25 series
Input port 1 x VGA + 3.5mm, support 640 x 480 85HZ to 1920 x 1200 60HZ
1 x HDMI, support 1920 x 1080P 60Hz
1 x Composite, automatically detects NTSC, PAL or SECAM format
1 x USB2.0, can be connected to a mobile drive, supports some images, pictures, MP3, TXT files commonly used in USB mobile drives
Output port Customize 10 to 25 HDMI signal output; support 1920 x 1080P 60HZ, 1280 x 720 60HZ
1 x 3.5mm
Control mode 1. Infrared remote control 2. RS-232 control 3. Panel buttons
Cable length The input and output can each be connected with up to 5 meters of wire
Power supply AC 110V-240V 50/60HZ power input
Dimensions 440 x 283 x 88mm (LxWxH)
Item Weight 2.5Kg

Note:

  • If you need to rotate 90 270 degrees, please purchase a rotator separately.
  • Due to shipping safety considerations, the remote control battery not provided.
  • Please use certified cables to connect the signal.
  • It is not recommended to serially switcher, distributor, converter, and so on that has not been certified by the factory.
  • To maintain the signal quality, if you need to extend the signal, please use a signal extender.

Package Contents

  • 1 X HW25
  • 1 X Remote control (Battery not provided)
  • 1 X Power cord
  • 1 X User manual
