CDH01_W


8K High-Speed DP⇄HDMI Bi-directional Converter

With Audio Extraction, HDR Support & EDID Management


Products / Converter

Dual-Interface Auto-Recognition

Intelligent detection for 4 conversion modes: DP→DP, DP→HDMI, HDMI→DP, HDMI→HDMI – flexible for all display setups.

Ultra-High Resolution

Supports up to 8K@30Hz (DP input) and 4K@120Hz (DP output), 4K@60Hz for HDMI sources – stunning visual clarity.

Multi-Format Audio Extraction

Extracts audio to Optical (S/PDIF) or 3.5mm L/R, supporting LPCM 7.1CH, Dolby TrueHD & DTS-X for immersive sound.

Comprehensive HDR Support

Compatible with HDR, HDR10, HDR10+, Dolby Vision & HLG – restores authentic colors and dynamic details.

Advanced EDID Management

Built-in TV/2.0CH/5.1CH modes for seamless audio-visual synchronization and device compatibility.

Compact Metal Design

90×72×20mm size, 166g weight with efficient heat dissipation and IEC 61000-4-2 ESD protection.

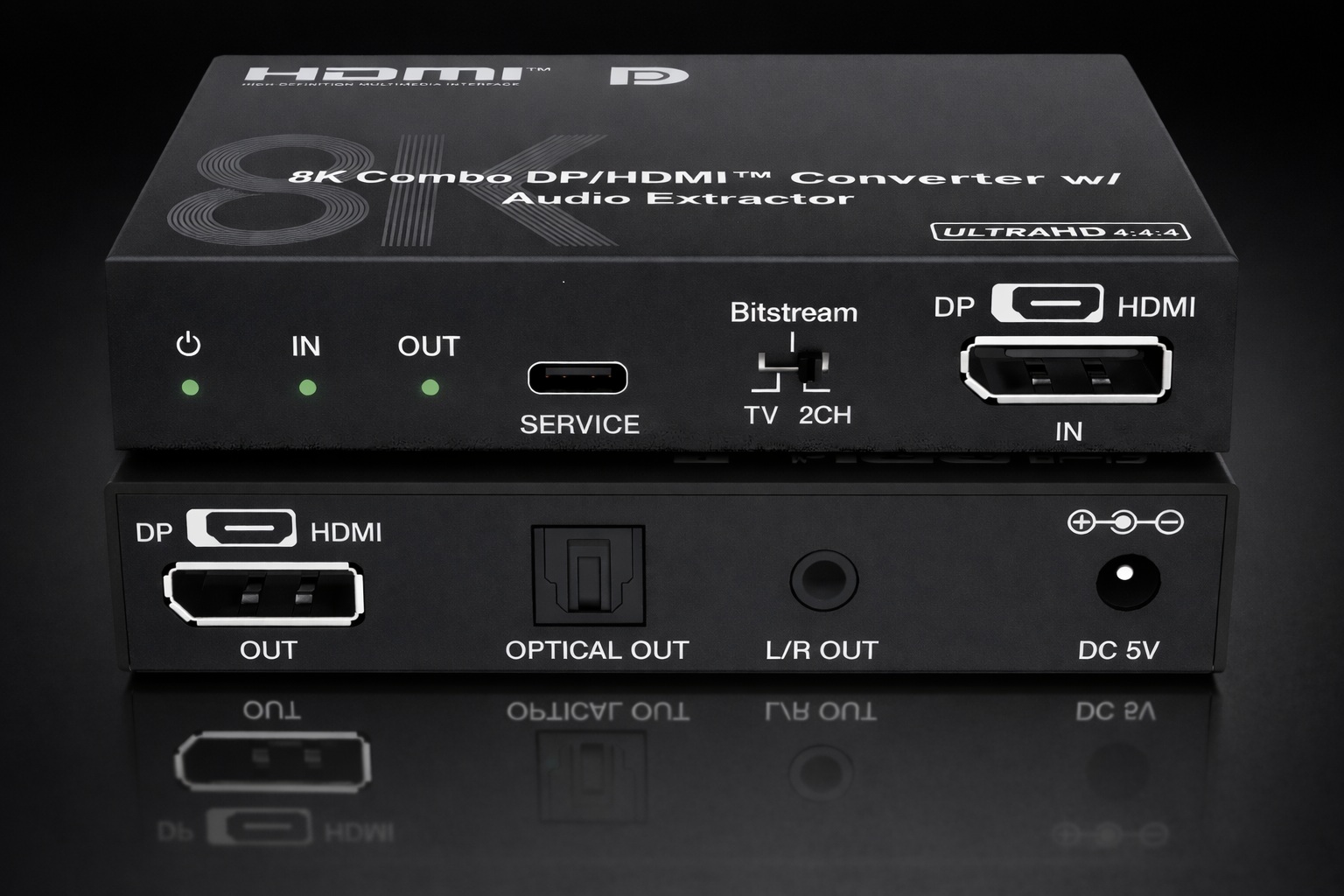

8K High-Speed DP⇄HDMI Bi-directional Converter with Audio Extraction – PANIO CDH01_W
Features
  • Bi-directional conversion with auto-recognition: Seamlessly switches between DP and HDMI interfaces for four flexible modes, eliminating the need for multiple converters.
  • Ultra-high bandwidth performance: DP supports 32.4Gbps (8K@30Hz input), HDMI output up to 48Gbps, ensuring stable transmission of high-resolution content without lag or distortion.
  • Compliant with industry standards: Meets HDMI 2.0b (input)/2.1b (output), DisplayPort 1.4 ALT Mode, and HDCP 2.3/2.2/1.x for wide compatibility with modern AV devices.
  • Professional audio solutions: Extracts high-quality audio from DP/HDMI sources to optical or analog outputs, supporting premium formats for home theaters and professional studios.
  • Advanced EDID management: Three adjustable modes (TV/2.0CH/5.1CH) ensure perfect synchronization between audio and video devices, resolving compatibility issues.
  • Robust protection features: Built-in ESD protection (±8kV air-gap, ±4kV contact discharge) and surge protection compatibility to safeguard sensitive electronic components.
  • Wide color support: Covers RGB, YCbCr 4:4:4/4:2:2 color spaces with 8/10/12-bit depth, delivering true-to-life color reproduction for professional and entertainment use.
  • Low power consumption: Max 2.4W power draw with DC 5V/1A input, energy-efficient for long-term operation in various environments.
  • Easy installation: Plug-and-play design with clear port labeling, compatible with certified high-quality DP/HDMI cables (HDMI ≥18Gbps recommended for 8K/4K transmission).
  • Versatile application scenarios: Ideal for home theaters, professional studios, multimedia conference rooms, and any setup requiring high-resolution signal conversion with audio extraction.
  • Firmware update support: USB-C SERVICE port allows for easy firmware upgrades to enhance functionality and compatibility with future devices.
  • CEC pass-through: Supports CEC functionality for seamless control of connected devices with a single remote, simplifying user operation.

Specifications

Model Name CDH01_W
Compliance Standards HDMI 2.0b (Input) / HDMI 2.1b (Output), DisplayPort 1.4 ALT Mode, HDCP 2.3 / 2.2 / 1.x
Video Bandwidth HDMI Input: 18Gbps; HDMI Output: 48Gbps; DisplayPort: 32.4Gbps
Supported Resolution DP Input → DP/HDMI Output: Up to 7680x4320p @24/25/30Hz (8K@30Hz) or 4K@120Hz; HDMI Input → DP/HDMI Output: Up to 4096x2160p @24/25/30/50/60Hz
Color Space & Depth RGB, YCbCr 4:4:4 / 4:2:2; 8/10/12-bit depth
Audio Specifications DP/HDMI: LPCM 7.1CH, Dolby TrueHD, DTS-X, ATMOS, DTS-HD Master Audio; Extraction: Optical (S/PDIF), 3.5mm L/R Analog
HDR Support HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Port Configuration Input: 1×DP/HDMI IN (Dual-interface integrated); Output: 1×DP/HDMI OUT, 1×Optical (S/PDIF), 1×3.5mm L/R Audio; Control: 1×SERVICE (USB-C for Firmware updates)
Physical Specs Material: Metal Chassis; Dimensions: 90(W)×72(D)×20(H) mm; Weight: 166g
Power Requirements Input: DC 5V/1A; Max Consumption: 2.4W
Conversion Modes DP→DP (8K@30Hz), DP→HDMI (8K@30Hz), HDMI→HDMI (4K@60Hz), HDMI→DP (4K@60Hz)

Important Notes

  • Use surge protection equipment to prevent damage from voltage spikes or static electricity.
  • For stable 8K/4K transmission, use certified high-quality DP/HDMI cables (HDMI ≥18Gbps bandwidth).
  • Do not hot-swap cables: Turn off all devices before connecting or disconnecting to avoid circuit damage.
  • Only use the original DC 5V/1A power adapter provided; avoid humid or high-temperature environments.
  • Select EDID mode matching your audio equipment: "Bitstream" for 5.1CH, "2CH" for stereo, or "TV" for display sync.
  • When using HDMI ports, insert the cable into the HDMI-side of the integrated port as marked on the device.

Package Contents

  • 1 x CDH01_W Dual-Interface Bi-directional Converter
  • 1 x DC 5V/1A Power Adapter
  • 1 x User Manual (English)
