CH1610K


4K 60Hz 16x16 Matrix Switch & Video Wall Controller

Supports True 4K 60Hz Ultra HD Visuals


Products / Matrix Switch + Video Wall

16x16 Matrix Video Wall Controller

Seamless 16-Screen Video Wall Integration | Supports 16 Input Sources

Multifunctional AV Signal Processor

Elevate Your Visual Experience with Professional-Grade Video Wall & Matrix Switching Solutions.

Ultra-Fast Seamless Switching

Enjoy instant signal switching with advanced technology — 0-second fast display with no black screen interruptions. Ideal for control rooms, exhibitions, and home theaters.

Ultra High 4K 60Hz Resolution

Delivers crystal-clear image quality with support for resolutions up to 4K 60Hz, ensuring superior visual clarity for any application.

Synchronized Video Wall & Single-Screen Display

Example: Simultaneous playback across 7 independent displays and a 3x3 video wall — totaling 16 synchronized screens.

Independent Audio Output

Supports up to 16 independent 3.5mm audio outputs for flexible external speaker integration.

External Audio Input

Each input channel is equipped with a built-in 3.5mm audio port, allowing 16 independent external audio inputs for seamless HDMI signal integration.

Dual RS-232 Control Interface

Equipped with dual RS-232 ports for reliable and flexible control of matrix switchers, video walls, and other compatible devices.

Remote 10-Key Scene Hotkeys

Simplify remote control into 10 functional buttons via TCP/IP or RS232 protocols for fast multi-scene invocation.

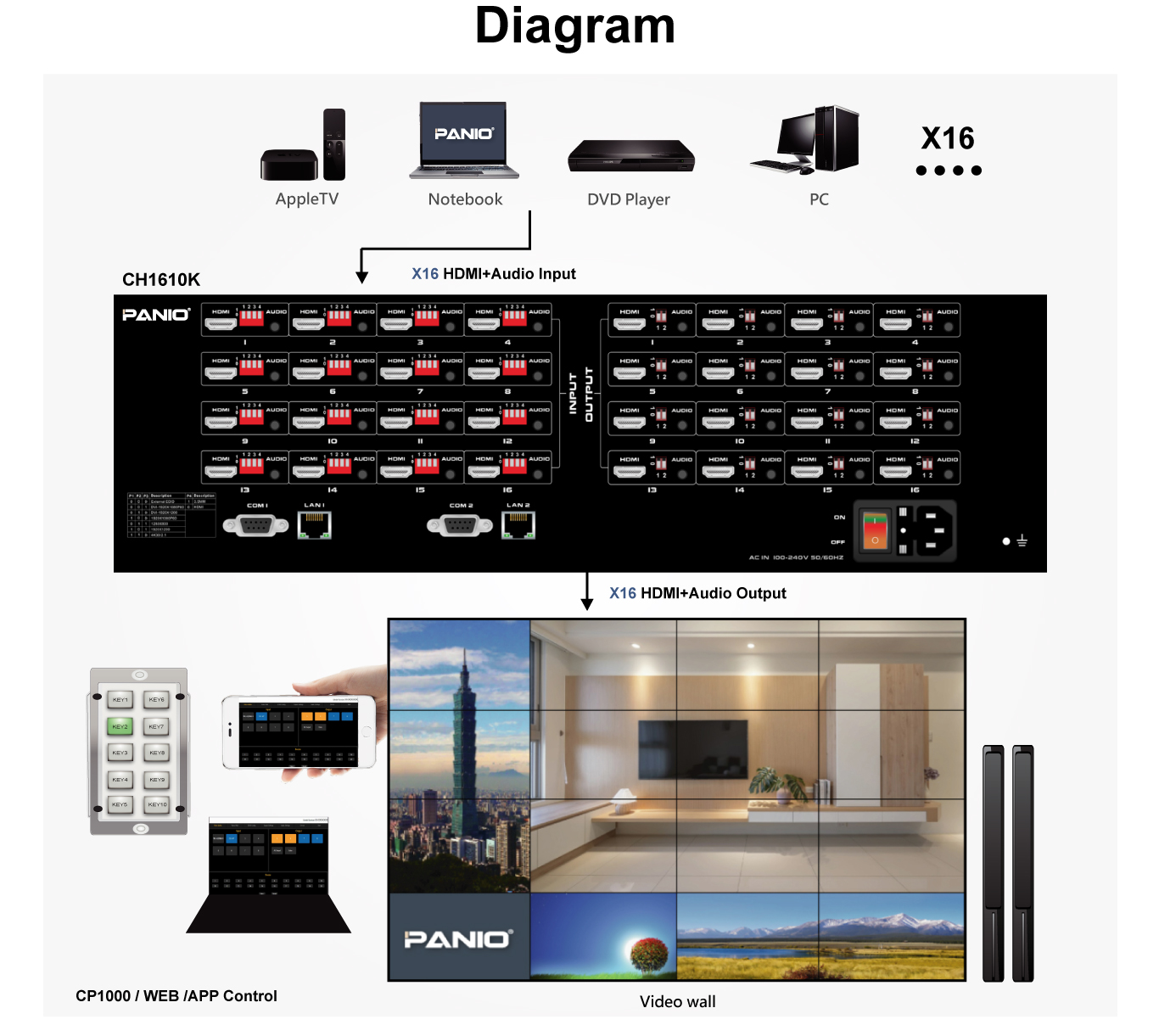

4K Quick Matrix switch with video wall
Feature
  • Elevate Your Visual Experience with a 16-Screen Matrix Video Wall Controller.
  • Seamless Matrix Switching with 16 HDMI + Audio Inputs for Flexible Signal Management.
  • Supports Stunning 4K 60Hz Ultra HD Resolution with Full Backward Compatibility.
  • Fully Compatible with HDMI 2.0 and HDCP 2.2 / 1.4 Standards.
  • Enjoy Instant, 0-Second Seamless Switching — No Black Screens, Real-Time, Smooth Transitions.
  • Supports Multi-Screen Video Wall Splicing and Independent Single-Screen Playback.
  • Built-in EDID Processing on Each Input Channel — Effectively Eliminates Common Display Issues Such as Flickering, Resolution Errors, and No Signal Output.
  • Supports Independent Audio Input and Output for Flexible, Professional-Grade Sound Integration.
  • Easily manage remote control via TCP/IP or RS-232, with 10 programmable shortcut keys for instant scene switching.
  • Multiple Control Methods Available — Infrared Remote, TCP/IP Network Control, RS-232 Serial Command, and Dedicated Mobile App.
PANIO 4K

Specification

Model Name CH1610K
Input 16 x HDMI, 16 x 3.5mm
Output 16 x HDMI, 16 x 3.5mm
Input resolution The maximum resolution is 3840x2160 @60Hz, backward compatible.
Stitching output resolution Output resolution: 4K 60Hz\ 4K 30Hz\ 1080P\ 720P\ 1366 x 768 60Hz
Color depth 8 10 12bit
Color space YCbCr, RGB
The video transmission distance (Max.) HDMI Cable Connection Length Restriction: 10 Meters Maximum (Input + Output)
Control method Remote control, TCP/IP, RS-232, Button, APP, 10-Key Remote Scene Shortcut
Power AC 110V-240V 50/60HZ
Dimensions 482 x 306 x 134mm (LxWxH)
Weight 4.5Kg

Note:

  • For optimal signal transmission, use a certified 4K 60Hz high-speed HDMI cable.
  • Using non-certified serial switchers, distributors, or converters may cause compatibility issues, signal degradation, or equipment failure.
  • The remote control battery is not included to comply with shipping safety regulations.
  • To ensure optimal system compatibility, please contact us before using this device with other equipment.
  • The total cable length for combined input and output should not exceed 10 meters. For longer distances, we recommend using an optical HDMI cable for extension.

Package Contents

  • 1 X CH1610K
  • 1 X 10-Key Remote Scene Shortcut
  • 1 X Power cord
  • 1 X Remote control (Battery not provided)
  • 1 X RS-232 Cable
  • 1 X Rack Accessories
  • 1 X User manual
