CH1620K_B


16x16 4K 60Hz HDMI 2.0 Matrix Switcher

Supports audio in & out, 2×RS232, TCP/IP, APP control


Products / Matrix Switch

4K 60Hz Resolution Support

Delivers 3840×2160 60Hz resolution with YUV 4:4:4 color space, 18Gbps bandwidth, and compatibility with HDR, HLG, and Dolby for exceptional visual quality.

APP Control

Enables remote control via dedicated apps for both Android and iOS devices, ensuring convenient and intuitive operation.

Dual RS-232 Cascading Control

Integrated dual RS-232 interfaces enable bidirectional control of downstream devices or cascaded systems through industry-standard serial communication protocols.

Web UI Control

Supports TCP/IP connectivity; remote operation is achievable via a web browser through the integrated Web UI.

Dedicated Audio De-embedding

Features a 3.5mm audio output port for seamless connection to external speakers.

External Audio Embedding

Equipped with a 3.5mm audio input for embedding external audio signals into HDMI streams, allowing audio overlay on silent video content.

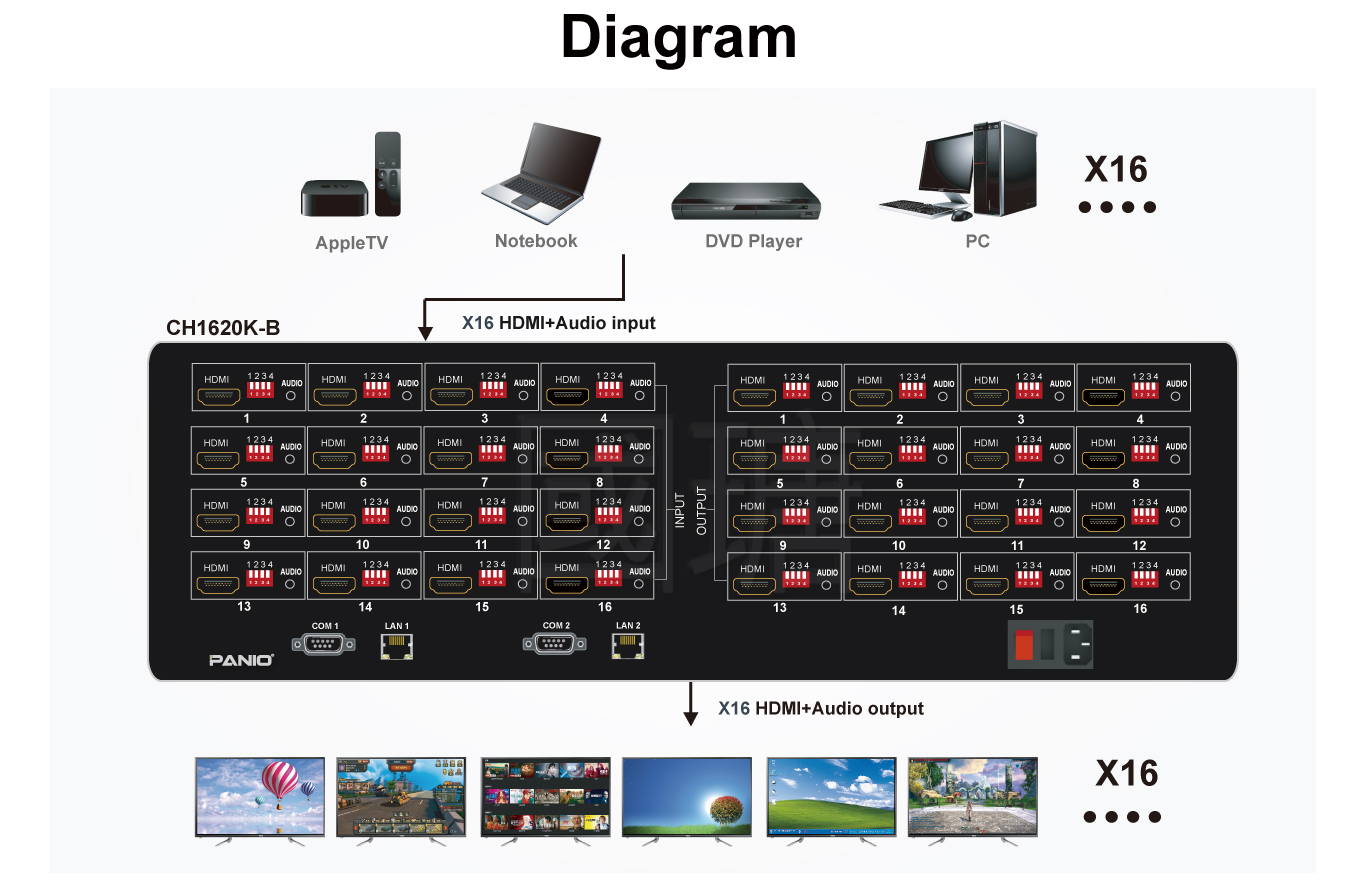

16x16 4K 60Hz HDMI 2.0 matrix switch
Feature
  • Supports 4K@60Hz resolution with YUV 4:4:4 color space, 18Gbps bandwidth, HDR, HLG, and Dolby.
  • Compliant with HDMI 2.0 and HDCP 2.2 standards.
  • Each output supports 4K-to-1080P down-conversion, ensuring seamless display when 4K and 1080P signals are used concurrently.
  • Independent manual EDID management for each individual port.
  • Integrates 3D image frame rate doubling restoration, adjacent pixel repetition, and 3D deinterlacing processing to deliver enhanced image quality.
  • Equipped with dual RS-232 ports and dual RJ-45 ports to provide versatile control options.
  • Adopts a quad-core, quad-link chipset with a maximum processing rate of 32Gbps.
  • Automatic data storage protection during power loss and automatic memory restoration upon power resumption.
  • Supports audio embedding and independent audio de-embedding output.
  • Integrated load protection mechanism to minimize the risk of equipment damage.
  • Supports remote control, TCP/IP, RS-232, front-panel button control, and APP-based control.
  • 19-inch rack-mount compatible for easy installation and system integration.
16x16 4K 60Hz HDMI 2.0 matrix switch

Specification

Model Name CH1620K_B
Input port 16×HDMI (Type A Female), 16×3.5mm audio input
Output port 16×HDMI (Type A Female), 16×3.5mm audio output
Video resolution (Max) Supports up to 4K@60Hz (YUV 4:4:4), backward compatible with lower resolutions.
Color depth 48/36/30/24-bit
Control Interface 1×RS-232 Male, 1×RS-232 Female, 1×RJ-45 (TCP/IP)
Protocol standard Compliant with HDMI 2.0, EDID management, HDCP 2.2
Control mode Front-panel button, remote control, 2×RS-232, TCP/IP, iOS/Android APP
Cable length Maximum 5 meters for both input and output HDMI cables. For longer distances, an HDMI extender is recommended.
Power supply AC 110V-240V 50/60Hz (Universal Power Input)
Power consumption 34W (Maximum)
Dimensions 482×405×138mm (L×W×H)
Item Weight 13 kg

Note:

  • For optimal signal integrity, use a certified 4K@60Hz HDMI 2.0 cable.
  • To ensure system stability, avoid using uncertified third-party devices (e.g., switchers, splitters, converters).
  • Ensure operational reliability by using the OEM-certified power adapter provided.
  • Before integrating this device with other equipment, consult our support team to avoid potential compatibility issues.
  • In compliance with shipping safety regulations, batteries are not included with the remote control.
  • Ensure the total length of input and output HDMI cables does not exceed 10 meters. For longer distances, use an optical HDMI cable.

Package Contents

  • 1×CH1620K_B Main Unit
  • 1×Remote Control (Batteries not included)
  • 1×Power Cord
  • 1×User Manual
