CH2116K_W


4K@60Hz 1×16 HDMI Splitter (HDMI 2.0b, 18Gbps, HDCP 2.2)

Uncompressed 4K60 4:4:4 distribution with HDR, HD audio, and 32-mode EDID management


Products / HDMI Splitter

1×16 Simultaneous HDMI Distribution

Distributes one HDMI source to 16 HDMI displays in sync. Designed for professional deployments requiring consistent multi-display output.

True 4K60 4:4:4 with 18Gbps Bandwidth

Supports up to 4K2K@50/60Hz 4:4:4 with 594MHz / 18Gbps uncompressed video transmission for sharp details and smooth playback.

Full HDR Compatibility

Compatible with HDR, HDR10, HDR10+, HLG, and Dolby Vision to enhance contrast and color performance across modern displays.

HD Audio Pass-Through

Supports LPCM 2.0/5.1/7.1, DTS-HD, Dolby TrueHD, DTS, Dolby-AC3, and DSD for high-fidelity audio distribution.

Advanced EDID Management (32 Presets)

Built-in 32 EDID preset modes via a 5-pin EDID DIP switch, covering common 4K/1080p/3D and multi-channel audio profiles. Also supports EDID copy and PC control mode to minimize compatibility issues.

Industrial-Grade ESD Protection & Metal Chassis

Designed for stable operation with ESD protection (±8kV air, ±4kV contact) and a durable metal enclosure for improved heat dissipation—ideal for 24/7 applications.

Ideal for Pro AV Installations

Well-suited for command & control rooms, digital signage, classrooms/auditoriums, meeting rooms, post-production studios, hotels, and exhibitions.

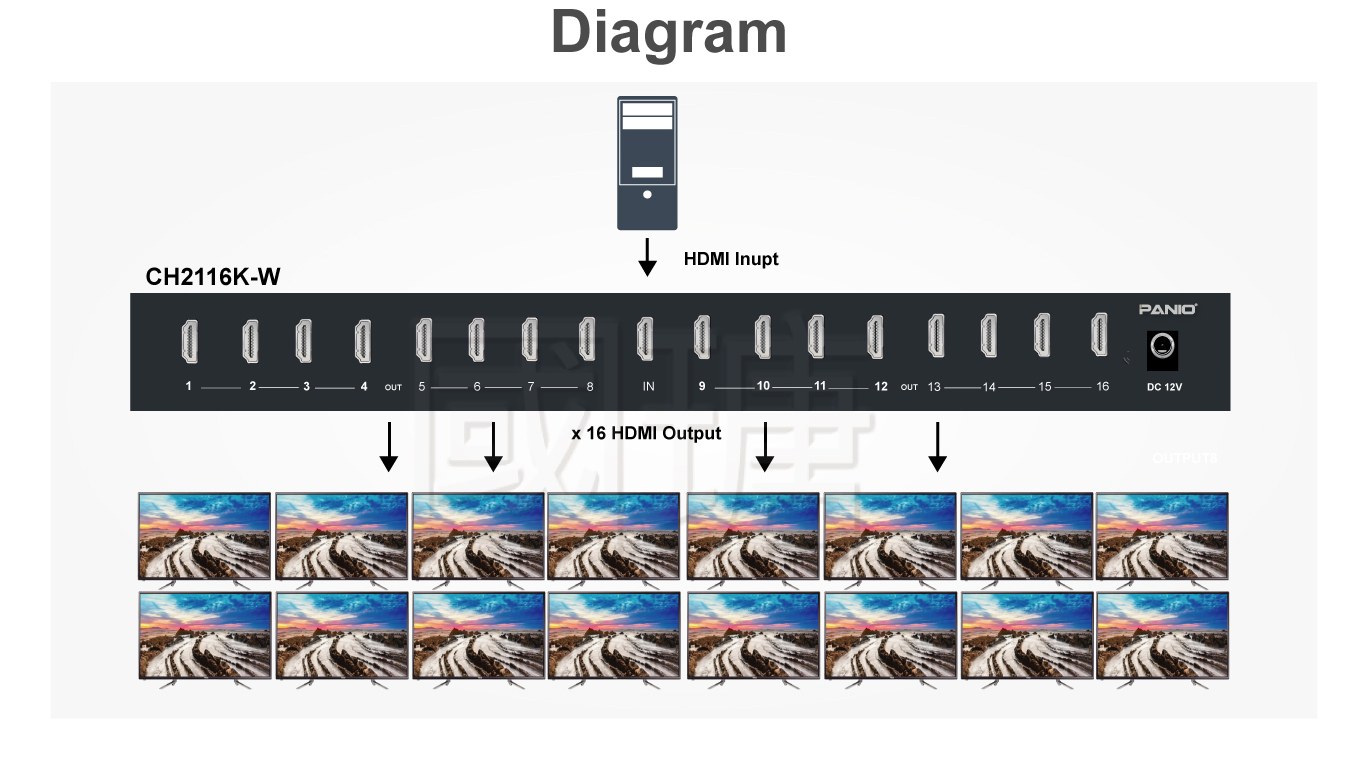

CH2116K_W 1x16 HDMI splitter for multi-display 4K distribution
Features
  • 1×16 HDMI distribution: one input to sixteen synchronized outputs.
  • Compliant with HDMI 2.0b, HDCP 2.2/1.x, and DVI 1.0.
  • Up to 4K2K@50/60Hz 4:4:4 resolution; backward compatible with lower resolutions (e.g., 1080p).
  • 594MHz / 18Gbps uncompressed video bandwidth for smooth, detailed output.
  • HDR support: HDR / HDR10 / HDR10+ / HLG / Dolby Vision.
  • HD audio pass-through: LPCM 2.0/5.1/7.1CH, DTS-HD, Dolby TrueHD, DTS, Dolby-AC3, DSD.
  • Multi-mode EDID management with 32 preset EDID modes via 5-pin DIP switch (also supports EDID copy and PC control mode).
  • Industrial ESD protection: ±8kV (air) / ±4kV (contact).
  • Firmware upgradable via SERVICE micro USB port.
  • Low power consumption: 12W, with a locking DC power adapter for secure installation.
  • Metal chassis for better heat dissipation and long-term reliability.
  • Designed for fast deployment: plug-and-play operation and easy rack/field installation.

Specifications

Item CH2116K_W
Standards HDMI 2.0b, HDCP 2.2/1.x, DVI 1.0
Video Bandwidth 594MHz / 18Gbps (uncompressed)
Max Resolution Up to 4K2K@50/60Hz 4:4:4
Color Depth 8/10/12-bit (1080p@60Hz);
8-bit (4K@60Hz YUV 4:4:4);
8/10/12-bit (4K@60Hz YCbCr 4:2:2 / 4:2:0)
Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDR HDR, HDR10, HDR10+, HLG, Dolby Vision
Audio LPCM 2.0/5.1/7.1CH, DTS-HD, Dolby TrueHD, DTS, Dolby-AC3, DSD, Dolby 5.1, DTS 5.1
Ports 1 × HDMI IN (Type-A, 19-pin, female)
16 × HDMI OUT (Type-A, 19-pin, female)
1 × DC 12V power input
1 × 5-pin EDID DIP switch
1 × SERVICE micro USB (firmware upgrade)
ESD Protection Human Body Model: ±8kV (air), ±4kV (contact)
Chassis Metal (black)
Dimensions (L × W × H) 300 × 100 × 28 mm
Weight 900 g
Power AC 100–240V 50/60Hz input, DC 12V/2.5A output (locking adapter, CE/FCC/UL), 12W
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 20% to 90% RH (non-condensing)

Installation Notes

  • Use high-quality HDMI cables to ensure stable 4K signal transmission, especially for high-frequency links.
  • For best reliability, use the included DC 12V/2.5A locking power adapter and ensure it is firmly secured.
  • Adjust EDID via the DIP switch according to your source/display requirements. Power off devices before switching EDID modes, then reboot to apply.
  • Avoid dusty, oily, corrosive, flammable, high-temperature, condensation, vibration, or impact environments. Keep ventilation unobstructed.
  • Do not hot-plug HDMI or power cables while powered on. Always power off equipment before connecting/removing cables.
  • Do not disassemble the unit. Contact qualified service personnel for repair.

Package Contents

  • 1 × CH2116K_W 4K@60Hz 1×16 HDMI Splitter (main unit)
  • 1 × DC 12V/2.5A Power Adapter (locking type)
  • 1 × Multi-language User Manual (Traditional Chinese / English)
