PANIO CH214K_W

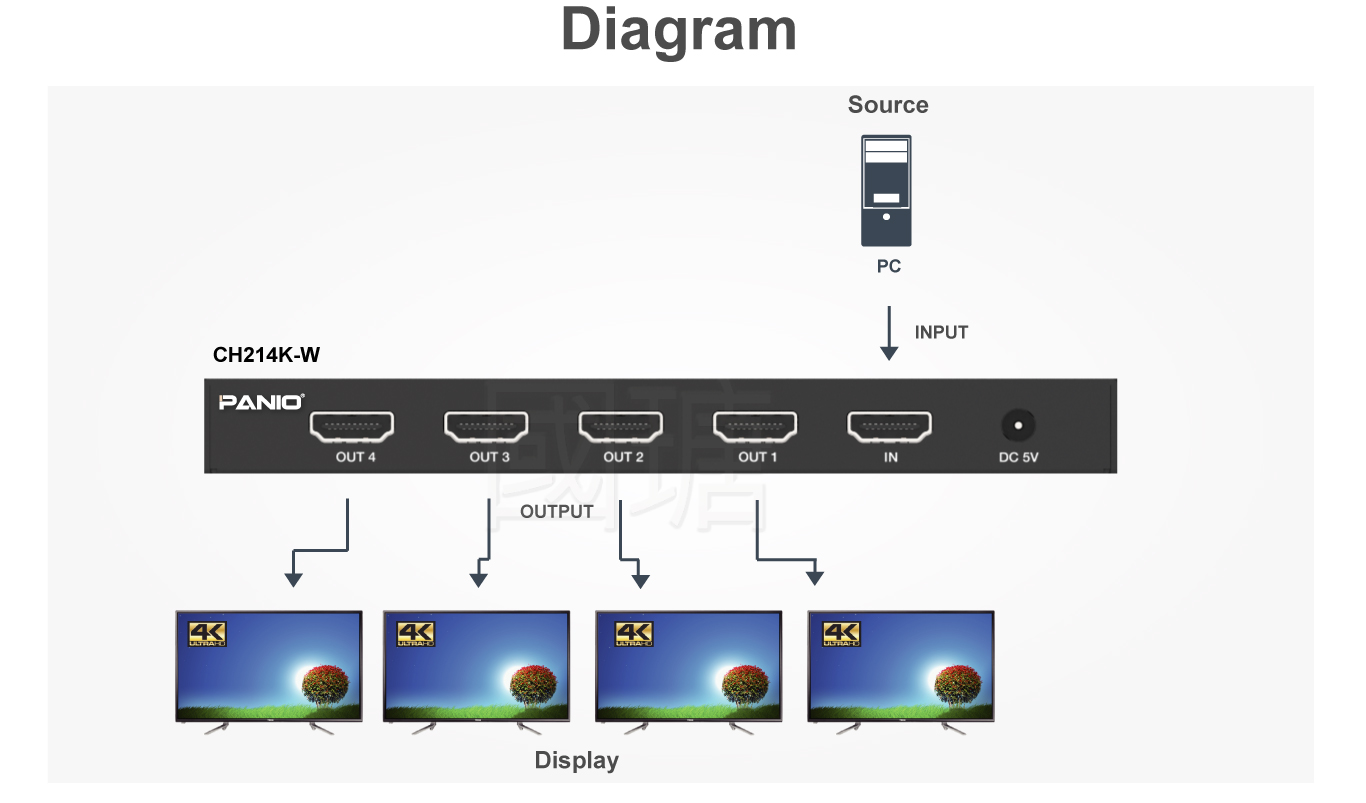

4K 60Hz 18Gbps 1×4 HDMI Splitter
Ultra HD Multi‑Display Signal Distribution
Products / HDMI Splitter
Supports up to 4K@60Hz 4:4:4 resolution with 18Gbps bandwidth, accurately restoring true colors and fine image details.
Fully supports the latest standards for high-definition content protection and compatibility.
Features STD and TV EDID modes for consistent signal adaptation across all connected displays.
Supports LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio.
High-quality metal shell with ESD protection and rational design for easy installation and durability.
Compact size and user-friendly design for easy placement on desktops or installation.
| Model Name | CH214K_W 1×4 HDMI Splitter |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolutions | 480i~1080p50/60Hz, 4K@24/30Hz, 4K@60Hz 4:4:4 |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Audio Formats | LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio |
| ESD Protection | Human Body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |

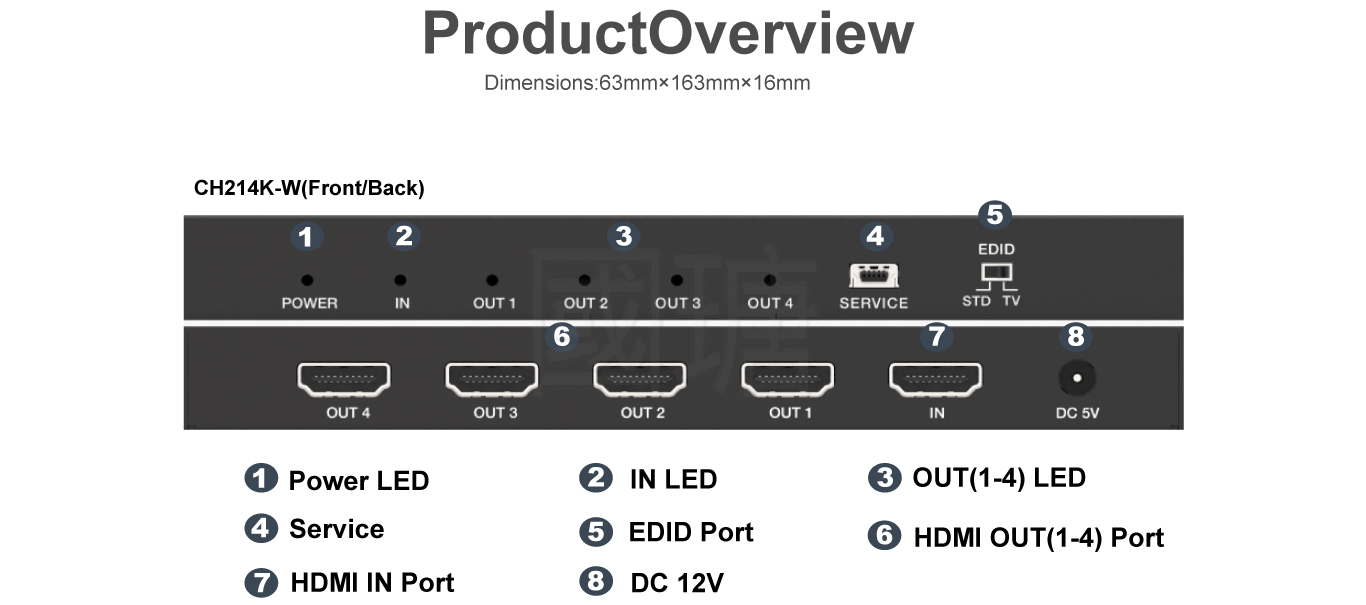

| Input Ports | 1 × HDMI IN (19-pin), 1 × USB (Service) |
| Output Ports | 4 × HDMI OUT (19-pin) |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 5V/1A |
| Power Consumption | Max 2W |
| Chassis Material | Metal (Black) |
| Dimensions | 63 × 163 × 16 mm |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20–90% RH (non-condensing) |
