CH4200K


4x2 4K@60Hz HDMI 2.0 Matrix Switch

Supports ARC, CEC, Audio Extraction, RS-232 & TCP/IP


Products / Matrix Switches

4K@60Hz Ultra-HD Resolution

Supports 3840×2160@60Hz UHD resolution, YUV 4:4:4 chroma subsampling, 18Gbps high-bandwidth transmission, and premium HDR formats including HDR10+, HLG and Dolby Vision.

ARC Functionality

Integrates Audio Return Channel (ARC) for seamless bidirectional audio-visual (AV) signal transmission between display and audio devices.

CEC Control Support

Enables intuitive centralized control of all HDMI CEC-compliant devices through a single remote controller.

Professional Audio Extraction

Features independent SPDIF digital audio and analog L/R audio output for flexible audio signal separation and routing.

Versatile Control Interfaces

Supports multiple intuitive operation methods: front-panel buttons, IR remote control, RS-232 serial communication and LAN with web-based GUI for efficient system management.

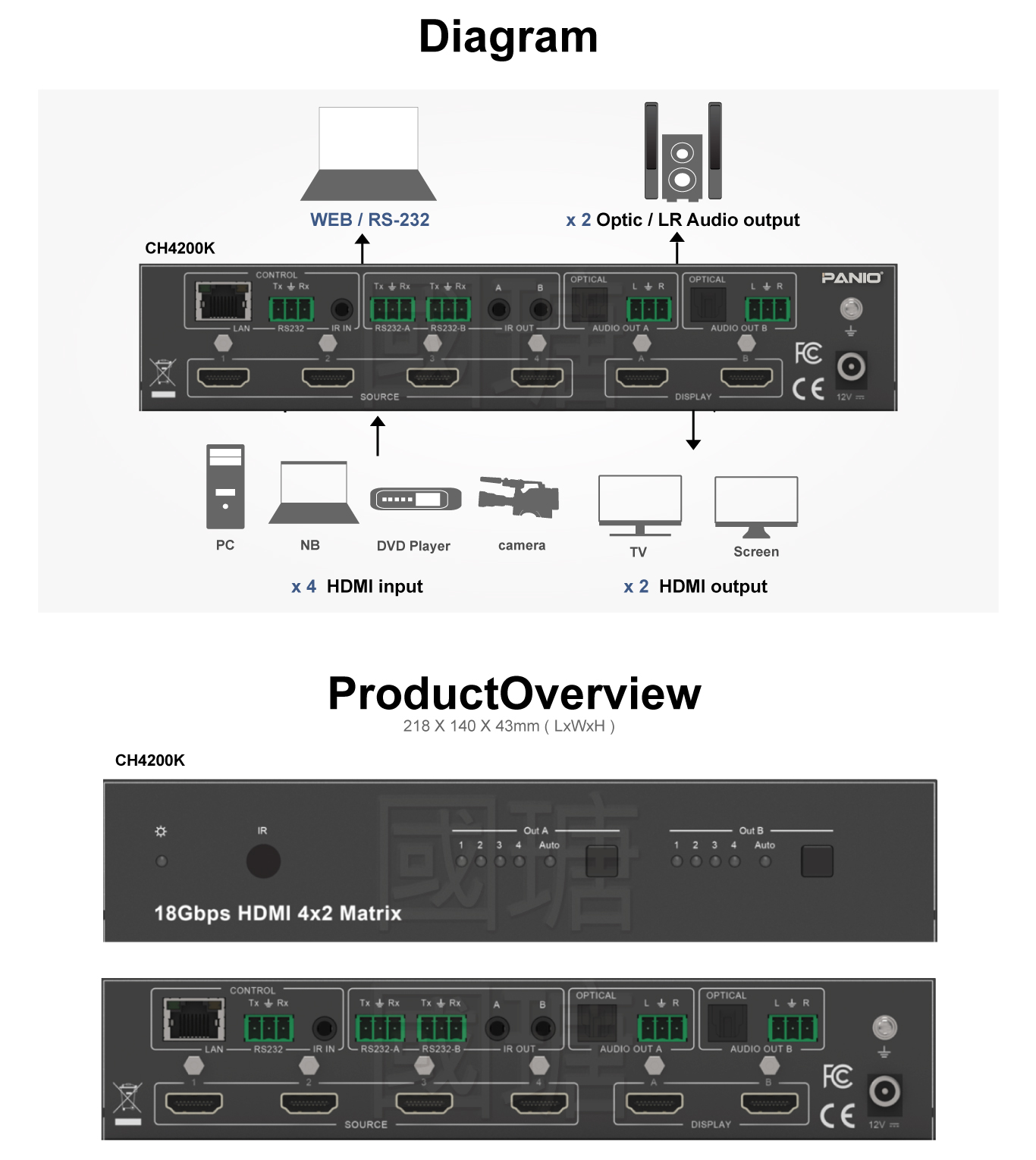

PANIO CH4200K 4x2 HDMI 2.0 Matrix Switcher - Product Exterior & Interface Layout
Key Features
  • 4x2 HDMI 2.0 matrix switch engineered for high-fidelity digital audio and video signal routing.
  • Supports 4K@60Hz UHD resolution, YUV 4:4:4 chroma subsampling, 18Gbps bandwidth, and HDR technologies (HDR10+, HLG, Dolby Vision).
  • Independent 4K-to-1080P downscaling on each output, eliminating display incompatibilities when 4K and 1080P devices are connected simultaneously.
  • Integrates ARC, CEC and EDID management functions for enhanced AV system compatibility.
  • Compliant with HDMI 2.0, HDCP 2.2 and DVI 1.0 industry standards.
  • Offers independent multi-format audio extraction and output for flexible audio configuration.
  • Diverse control methods: front-panel buttons, IR remote control, RS-232 serial, LAN and web-based graphical user interface (GUI).
  • Supports a full range of audio formats: PCM 2.0/5.1/7.1CH, Dolby Digital, Dolby Digital Plus, Dolby EX, Dolby TrueHD, DTS, DTS-EX, DTS 96/24, DTS High Resolution, DTS-HD Master Audio and DSD.

Technical Specifications

Specification CH4200K
Input Interfaces 4 × HDMI (Type A, Female), IR Extension Port
Output Interfaces 2 × HDMI (Type A, Female), 2 × Coaxial Audio (RCA), 2 × Analog L/R Audio, 2 × IR Output Ports
Maximum Supported Resolution 4K@60Hz, YUV 4:4:4
Supported HDMI Audio Formats PCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS 96/24, DTS High Resolution, DTS-HD Master Audio, DSD
Supported Coaxial Audio Formats PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1
Supported Analog L/R Audio Formats PCM 2.0CH
Compliant Standards HDMI 2.0, HDCP 2.2, DVI 1.0
Transmission Bandwidth 18Gbps
Supported Color Spaces RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth 8-bit, 10-bit, 12-bit
Supported HDR Formats HDR10, HDR10+, Dolby Vision, HLG
ESD Protection Human Body Model — ±8kV (Air-gap Discharge) & ±4kV (Contact Discharge)
Recommended Cable Length Up to 5 meters of certified HDMI 2.0 cable for input & output connections
Control Interfaces Front-panel Buttons, IR Remote, RS-232 Serial, TCP/IP (LAN)
Power Requirement DC 12V/1A (Single Power Supply)
Maximum Power Consumption 4.3W
Physical Dimensions (L×W×H) 218 × 140 × 43mm
Net Weight 1050g

Important Notes

  • For optimal performance, use only certified HDMI 2.0 cables for all signal connections.
  • Uncertified switchers, distributors, converters or similar peripheral devices are not recommended, as they may compromise system performance and stability.
  • To preserve signal quality and stability, always utilize the original certified power adapter included with the product.
  • Contact our technical support team prior to integrating this product with third-party devices to ensure full compatibility and avoid potential operational issues.
  • Remote control batteries are not included due to international shipping safety regulations.
  • For proper CEC functionality operation, both the Blu-ray player and display device must support HDMI CEC. Some displays require manual CEC enablement in system settings for successful communication.

Package Contents

  • 1 × CH4200K Main Unit
  • 1 × IR Remote Control (Batteries Not Included)
  • 1 × RS-232 Serial Cable
  • 1 × DC 12V/2.5A Power Adapter
  • 3 × IR Extension Cables
  • 2 × Rack Mounting Kits
  • 1 × English User Manual
PANIO CH4200K 4K@60Hz HDMI 2.0 Technical Performance Overview
