CH4410K


4K 4x4 Matrix Switch Video Wall Controller

Support Video wall + matrix switcher.


Products / Video Wall

4K 4x4 Matrix Video Wall Controller

Support 4 screen splicing Quick cut function.

Multifunctional audio and video signal processor

Video wall + matrix switcher.

Quick switch

When switching the signal source, no black screen 0 seconds fast display function.

Automatically detect no input signal

If any input source of channels 2-8 is disconnected, it will automatically jump to the first signal source. When the first input source is disconnected, it will automatically jump to the next signal source.

The latest signals are displayed first

Display the last input signal first; suitable for conference room presentations.

Ultra high resolution

Input and output support up to 4K 30Hz resolution.

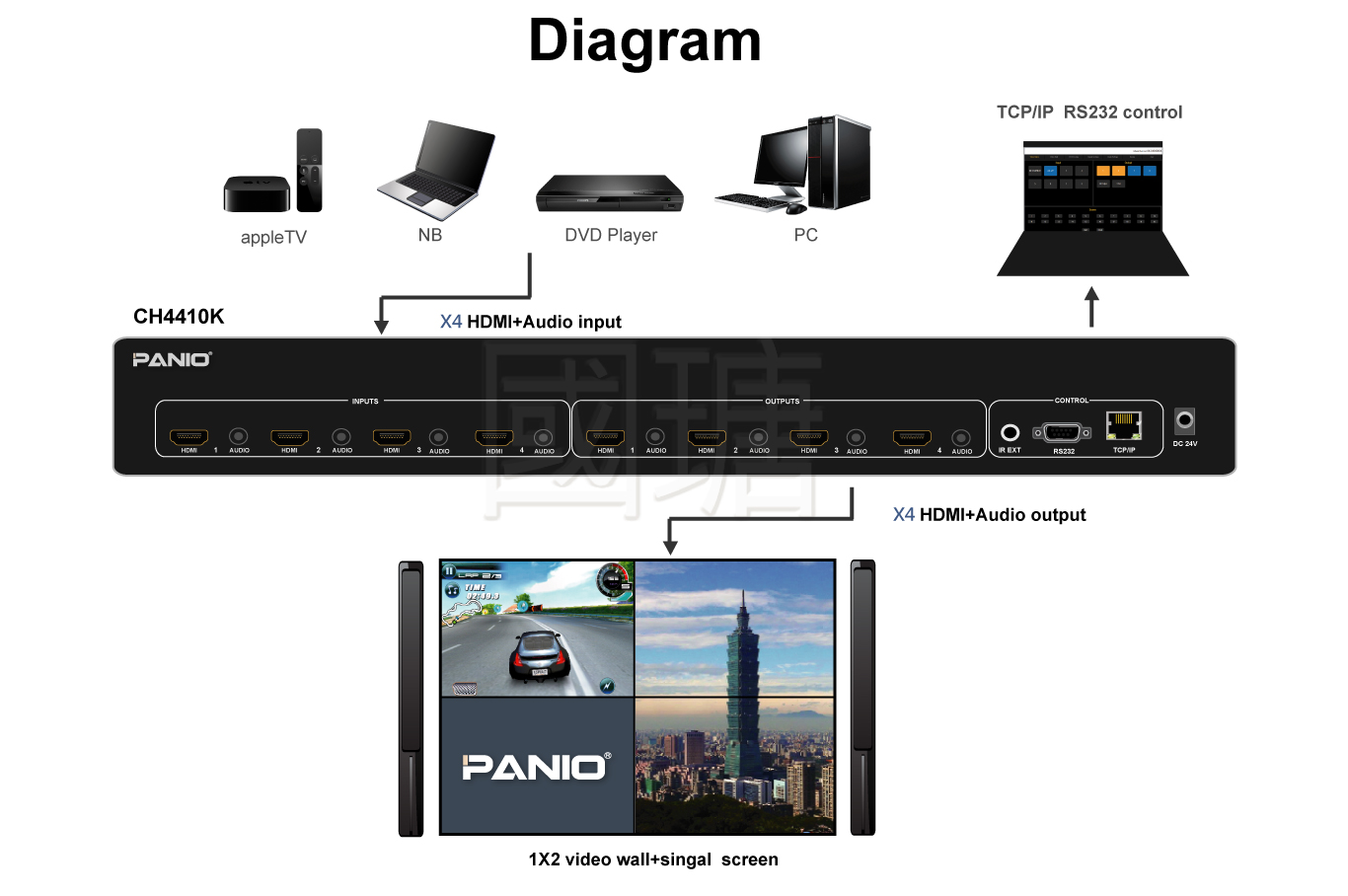

Video wall + single screen synchronization

For example: 1X2 splicing screen is displayed synchronously with 2 separate screen screens.

Audio output

Output 3.5mm audio, can be connected to external speakers.

External sound input

External 3.5mm audio input, can load and output audio and video HDMI signal.

Trimming function

Manual border spacing adjustment technology to solve the problem of excessive screen spacing.

16 scene shortcuts

Use the remote control, front panel buttons, WEB GUI and RS-232 commands to store or quickly recall scenes.

Remote push button

Support LAN(POE) or RS-232 to control remote equipment, such as matrix switcher, video wall splicer, etc..(with CP1000)

4K Quick Matrix switch with video wall
Feature
  • The splicing mode support 4-screen video wall splicing. (Vertical splicing needs to be processed through a computer or a rotator)
  • Matrix switching mode support 4 sets of HDMI+Audio input.
  • Input and output support up to 4K 30HZ resolution, backward compatible.
  • Support HDMI1.4b, HDCP2.2/1.4.
  • Support 0-second switching, no black screen trouble during switching, no delay and real-time switching, and the switching effect is smoother.
  • Support splicing + single screen synchronous display.
  • Support EDID processing technology to solve annoying problems such as screen dissatisfaction, flickering and no display on the display side.
  • Support sound input and sound separation independent output.
  • Control method: remote control, TCP/IP, RS-232, button.
PANIO 4K

Specification

Model Name CH4410K
Input 4 x HDMI, 4 x 3.5mm
Output 4 x HDMI, 4 x 3.5mm
Input resolution The maximum resolution is 3840x2160 @30HZ, backward compatible.
Stitching output resolution Output resolution: 4K 30Hz\ 1080P\ 720P\ 1366 x 768 60Hz
Color depth 8 10 12bit
Color space YCbCr, RGB
The video transmission distance (Max.) Extended through a standard HDMI cable, and the output/input length can be up to 5m each (over this length, please use it with an extender)
Control method Remote control, TCP/IP, RS-232, button
Power DC 24V/ 2A
Dimensions 440 x 280 x 44mm (LxWxH)
Weight 2.9Kg

Note:

  • Please use 4K cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The output + input cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X CH4410K
  • 1 X 24V 2A Adapter
  • 1 X Remote control (Battery not provided)
  • 1 X RS-232 Cable
  • 1 X User manual
