CH4432


4K 60Hz 4x4 Matrix Splicing Video Wall Controller

Support Quick switch, Quad-Split, RS-232 control


Products / Video Wall

Flexible Video Wall Configuration

Supports arbitrary splicing configurations including 1x2, 2x1, 2x2, 1x3, 3x1, 1x4, and 4x1.

Seamless Signal Switching

Provides zero-second, black-screen-free switching between signal sources for uninterrupted viewing.

4 Channel Multi-Viewer

Enables simultaneous display of four input sources on a single screen.

4K Ultra HD Resolution

Delivers stunning 3840 x 2160 60Hz in video wall mode.

Input Source Preview

Offers instant preview of any input source in a 4-split screen format (matrix switch mode).

Dedicated Audio Output

Features a 3.5mm audio output for connection to external speakers.

180-Degree Screen Rotation

Allows individual display unit rotation for minimized LCD bezel gaps.

Bezel Gap Adjustment Technology

PANIO technology effectively mitigates image distortion caused by display bezel gaps, restoring true-to-life visual fidelity.

Dual Interface Input:

Equipped with 1 DisplayPort (DP) and 4 HDMI inputs for versatile signal selection in splicing mode.

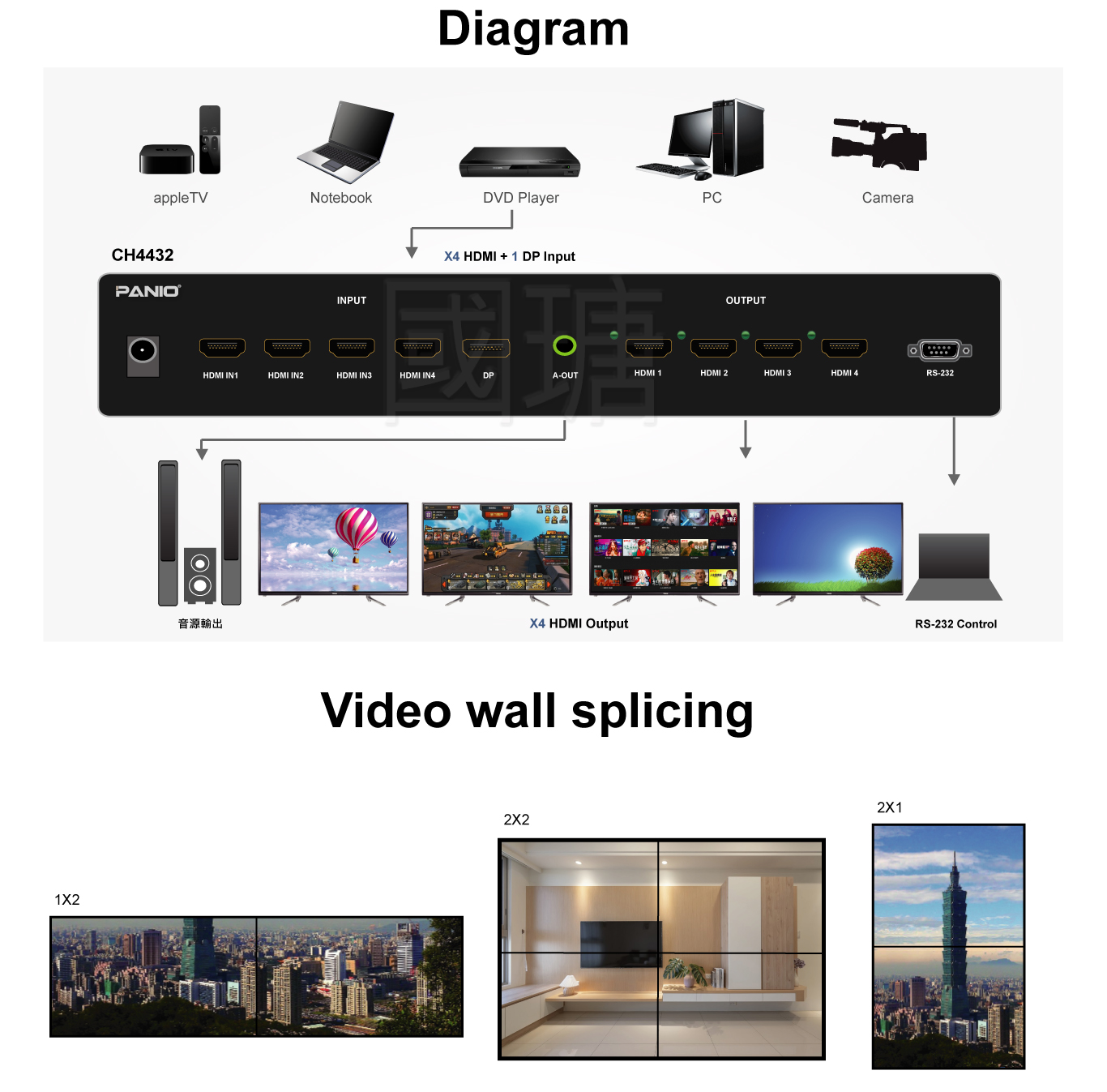

4K Quick Matrix switch with video wall
Feature
  • This device offers versatile stitching modes, supporting configurations such as 1x2, 2x1, 2x2, 1x3, 3x1, 1x4, and 4x1. (Note: Vertical stitching requires computer processing or a rotator.)
  • It features five inputs: 1 HDMI 2.0, 3 HDMI 1.4, and 1 DisplayPort 1.2 (used exclusively in splicing mode). All inputs support resolutions up to 4K at 60Hz and are backward compatible.
  • Stitching Mode Output Resolutions: Users can select from 1024x768 60Hz, 1280x800 60Hz, 1280x720 60Hz, 1920x1080 60Hz, or 1920x1200 60Hz.
  • Matrix Switching Mode Output Resolutions: Outputs are fixed at either 1920x1080 60Hz or 1920x1200 60Hz.
  • The device supports 180-degree rotation for any display, enabling inverted TV wall configurations.
  • PANIO Quick Switch Technology: In matrix switching mode, it facilitates seamless, zero-second display transitions.
  • A preview function allows simultaneous display of four signal sources on a single screen.
  • Integrated image edge processing technology corrects misalignment issues that may occur during display splicing.
  • Audio de-embedding is supported with an independent 3.5mm audio output.
  • Control options include remote control, onboard buttons, and RS-232.
TAIWAN PANIO 4K
TAIWAN PANIO 4K

Specification

Model Name CH4432
Input 1 x HDMI2.0, 3 x HDMI1.4, 1 x DP1.2 (only for splicing mode)
Output 4 x HDMI, 1 x 3.5mm
Input resolution support 2 channels 3840x2160 60Hz 4K 60Hz, 3 channels 3840x2160 30Hz 4K 30Hz.
Stitching output resolution Optional output resolution: 1024x768 60HZ, 1280 x 800 60HZ, 1280 x 720 60HZ, 1920 x 1080 60HZ, 1920 x 1200 60HZ
Matrix output resolution Optional output resolution: 1024x768 60HZ, 1280 x 800 60HZ, 1280 x 720 60HZ, 1920 x 1080 60HZ, 1920 x 1200 60HZ
Color depth 24bit, 16.77 million colors
Preview function 4 channels of signal source screens are synchronized to any TV to display 4 split screens simultaneously
Control method Remote control, RS-232, button
Power DC 12V 1A
Dimensions 315 x 160 x 36mm (LxWxH)
Weight 1.2Kg

Note:

  • Please use certified, high-quality cables for signal connections to ensure optimal signal transmission.
  • To prevent signal attenuation or incompatibility issues, it's strongly recommended to avoid using non-certified devices for daisy-chaining, switching, splitting, or converting.
  • To maintain device stability and optimal performance, please use the original manufacturer's power adapter.
  • For transportation safety reasons, batteries are not included with the remote control. Please provide your own batteries.
  • The matrix switching and video wall splicing functions of this device are mutually exclusive. Please select only one mode for operation.

Package Contents

  • 1 X CH4432
  • 1 X 12V 1A adapter
  • 1 X Remote control (Battery not provided)
  • 1 X RS-232 cable
  • 1 X User manual
