CH4440K


4x4 4K 60Hz HDMI Matrix switcher + TV wall splicer + Multi-viewer

Supports 0-second fast switching, CEC, independent sound output, RS-232, TCP/IP


Products / Matrix Switch + Video Wall

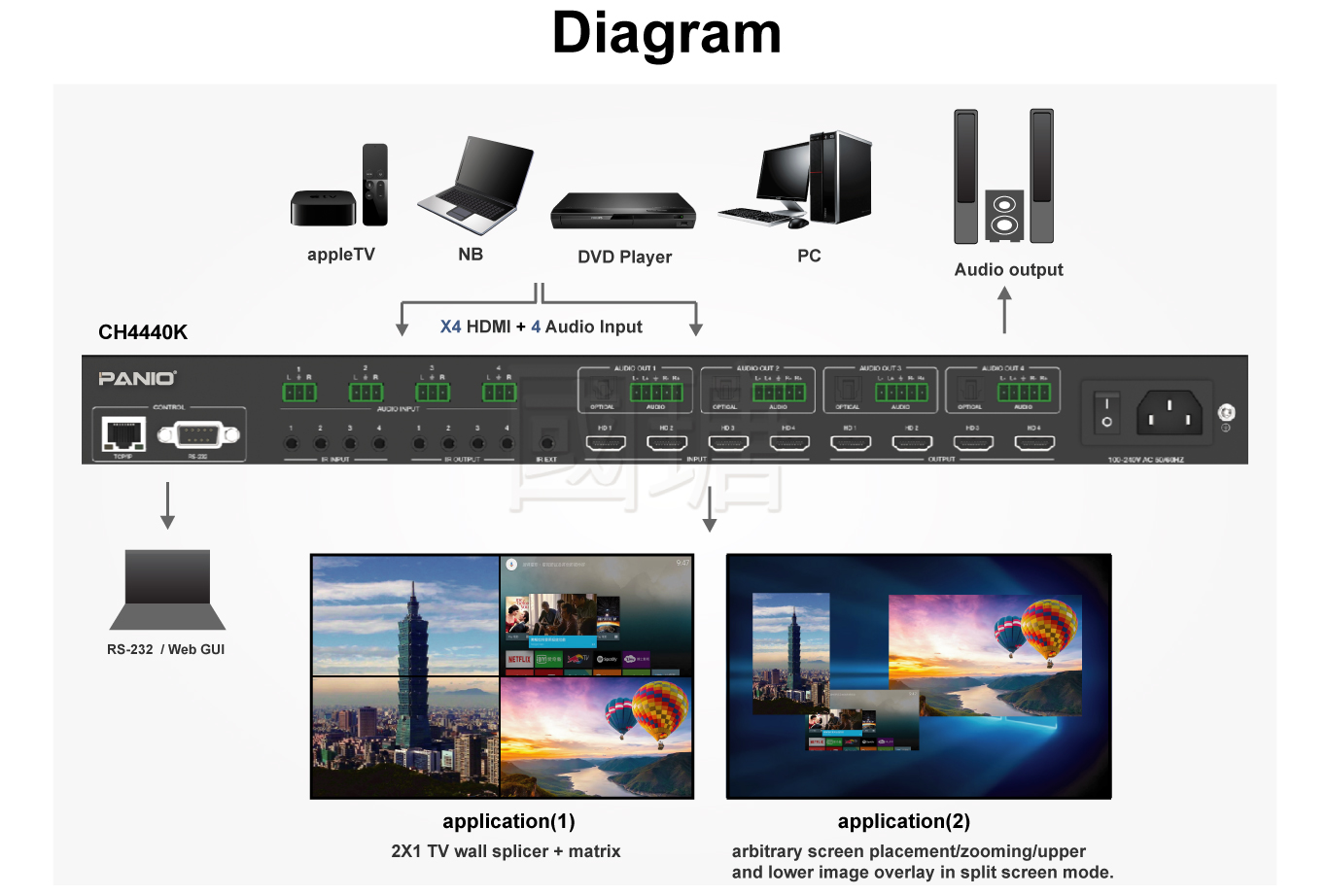

Three-in-one audio-visual signal processor

TV wall splicer + matrix switcher + multi-screen splitting.

4K 60Hz resolution

Support 3840×2160 60Hz resolution, YCbCr 4:4:4, 18G.

TV wall+single screen simultaneous display

Support 9 splicing modes, such as: 1X2 splicing screen and 2 separate screens displayed simultaneously.

1 screen showing multiple signal sources

Supports 12 screen split modes.

Image overlay scaling

Support arbitrary screen placement/zooming/upper and lower image overlay in split screen mode.

Switch signal sources quickly

No black screen, 0 second quick display function when switching signal sources.

CEC function

Easily control any CEC HDMI-enabled device.

Modify screen border gaps

Solve the problem of excessive gaps between screens through manual border spacing adjustment technology.

Control mode

Buttons, Remote control, RS-232 and Web GUI.

4x4 4K 60Hz HDMI Matrix switcher + TV wall splicer + Multi-viewer
4x4 4K 60Hz HDMI Matrix switcher + TV wall splicer + Multi-viewer
Feature
  • 4-in, 4-out digital audio and video HDMI2.0 matrix switcher.

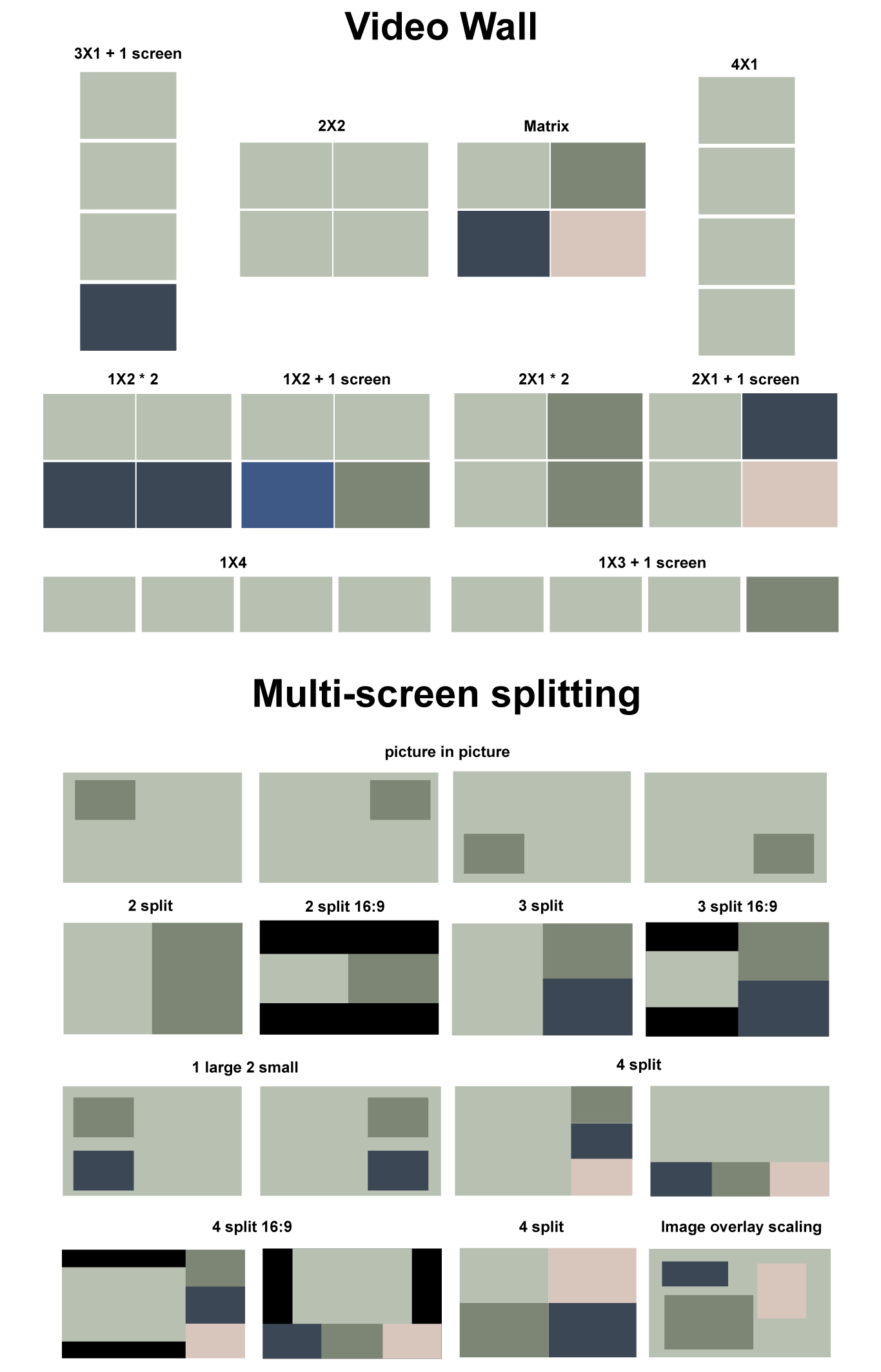

  • Built-in 9 video wall modes, 2x2 2x1 (2 groups) 2x1 (1 group) 1x2 (2 groups) 1x2 (1 group) 1x3 1x4 3x1 4x1.
  • Built-in 12 split screen modes, 4 split/3 split/1 large 3 small/1 large 2 small/picture in picture, etc.
  • Support 4K 60Hz resolution, YCbCr 4:4:4, 18G.
  • Each output supports up to 16 resolutions, solving the problem of connecting screens with different resolutions at the same time.
  • Each output supports manually adjusting the HDCP version.
  • Each output port can be set to display/off function.
  • You can arbitrarily set the audio to follow the output or input.
  • Built-in 18 EDID functions.
  • Support CEC, EDID functions.
  • Support HDMI 2.0, HDCP 2.2 and DVI 1.0.
  • Support two interface outputs: balanced audio L/R and optical fiber.
  • You can set the screen display time.
  • Support static IP or DHCP.
  • Control methods: Push buttons, Remote control, RS-232, and Web GUI.
  • Support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res and DTS-HD Master Audio.
TAIWAN PANIO 4K

Specification

Model Name CH4440K
Input port 4 x HDMI, 4 x L/R, 4 x IR
Output port 4 x HDMI, 4 x Balanced Audio L/R, 4 x Optical S/PDIF, 4 x IR
Video resolution 480i-1080P 50/60Hz, 4K2K 24/30Hz, 4K2K 60Hz
Color space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color depth 8/ 10/ 12-bit
HDMI audio format LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
HDMI protocol standard Support HDMI2.0, HDCP2.2 and DVI 1.0
Transmission bandwidth 18.0 Gbps
ESD protection Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Control methods Push buttons, Remote control, RS-232, and Web GUI.
Cable length Input and output can be connected to HDMI2.0 cables with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Power supply AC:110V-240V 50/60HZ DC:12V 2.5A
Power consumption (maximum value) 25W
Dimensions 440 X 203 X 44mm (LxWxH)
Item Weight 2.55Kg

Note:

  • Please use certified HDMI2.0 cables to connect the signal.
  • Please do not connect Switch/ Splitter/ Converters, etc. without original factory certification.
  • Please use original factory certified power adapter to maintain stable quality.
  • There is no battery inside the remote control.
  • Split screen cannot exist at the same time as TV wall splicing and matrix switching.

Package Contents

  • 1 x CH4440K
  • 1 x Remote control (no batteries inside)
  • 1 X DC 12V/2.5A Power adapter
  • 8 X 3-pin Phoenix (RS-232 connector)
  • 9 X IR cable
  • 2 X Rack Accessories
  • 1 X User manual
