Professional 4K 8-Channel HDMI Video Switcher
Seamless Viewing | Auto Scan | Built-in Up & Down Scaler | Audio & Video Separation | RS-232 Control
CH8120K
Products / Matrix Switch
Key Features
4K 30Hz Ultra HD Resolution
Full support for crisp 3840 × 2160 @ 30Hz signals. Delivers stunning video fidelity that remains perfectly backward compatible with legacy standard HD sources.
0-Second Seamless Viewing
Immediate signal source switching guarantees absolutely zero latency or annoying black screens, creating an uninterrupted, fluid presentation workflow.
Integrated Video Scaler Function
Supports fixed hardware up-frequency and down-frequency resolution output matching to achieve optimized pixel consistency across diverse display terminals.
Smart Signal Detection & Scan
Automatically triggers an intelligent 3-second channel scan upon boot. Prioritizes and broadcasts backward signals first to cut deployment complexity.
Dedicated Audio Extraction & ARC
Isolates and outputs independent analog audio over a 3.5mm stereo jack directly to external soundbars or mixers. Native support for HDMI ARC included.
RS-232 Remote Serial Protocol
Fully compatible with automated commercial control desks. Allows real-time remote commands and full input terminal EDID management.
Why Choose TAIWAN PANIO CH8120K?
▸ Premium Taiwan Engineering
Designed, certified, and manufactured locally in Taiwan. Engineered for elite AV infrastructure setups requiring robust, stable 24/7 mission-critical operations.
▸ Zero No-Input Black Screen Gaps
Intelligently skips disconnected or dead input ports during workflows, drastically slashing presentation waiting time and operator errors.
▸ Versatile Scaling Configurations
The internal scaling processor locks and forces outputs cleanly into 1366x768, 720P, 1080P, or 4K30 profiles regardless of varying input feeds.
▸ Flexible Multi-Control
Allows effortless control transitioning. Switch input paths using immediate front-panel push buttons, a wireless IR remote, or centralized RS-232 links.
▸ Eco-Conscious Energy Modes
Outfitted with modern integrated backup energy-saving hardware components to scale down general power draws when fields sit idle.
▸ Rugged Metal Thermal Housing
Encased inside a heavy-duty industrial metal frame optimized for exceptional heat dissipation, preventing throttling within server racks.
Detailed Product Capabilities

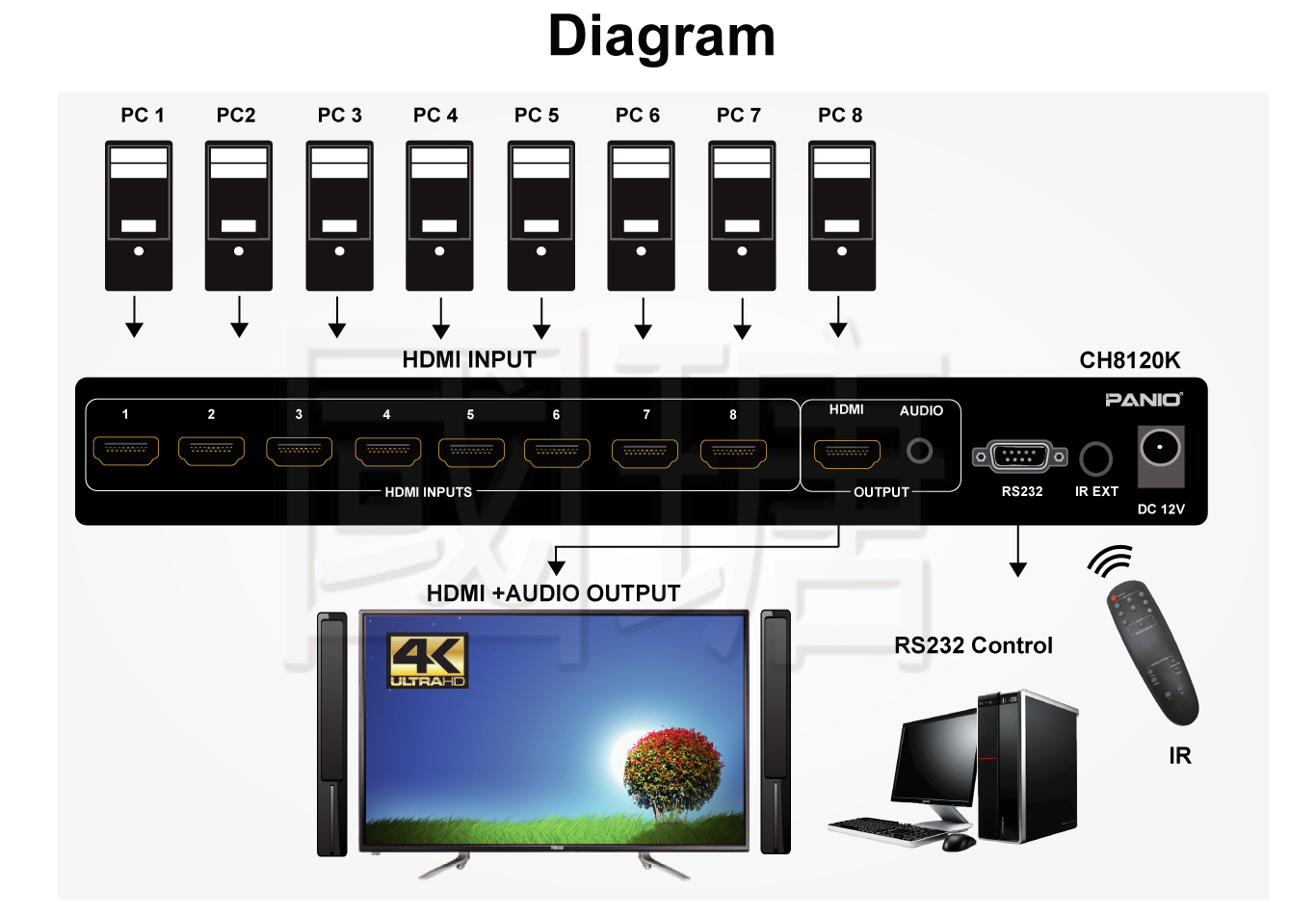

- Professional-grade 8-In to 1-Out digital audio and video HDMI routing architecture.
- Maintains absolute resolution integrity up to 3840 X 2160 @ 30Hz with adaptive legacy device compliance.
- Fixed video up/down frequency adjustments supported across four standard outputs: 1366x768, 720P, 1080P, and 4K30.
- Granular custom input terminal EDID parameters easily adjusted over serial terminal workflows.
- Automated 3-second polling scanning loop feature can be selectively activated or completely bypassed.
- Instantaneous 0-second switching removes visual distortion, sync delays, and frame drops during live toggles.
- Dedicated 3.5mm analog interface provides a direct pipeline to standalone field audio equipment.
- Flexible input parameters and output configurations are fully addressable through localized physical keys or remote consoles.
Ideal Applications
The TAIWAN PANIO CH8120K offers a highly dependable, dense HDMI switching core purpose-built for commercial, educational, and public broadcasting environments.
Enterprise Boardrooms
Seamlessly consolidate up to 8 separate presenter laptops or video conferencing feeds onto a single master commercial display.
Smart Classrooms & Lecture Halls
Unify lectern PCs, document visualizers, media players, and auxiliary teaching gear smoothly into a central projector array.
Security & Surveillance Hubs
Utilize the built-in 3-second auto-scan sequence to continuously monitor up to 8 unique multi-camera feeds on one high-res screen.
Digital Signage Displays
Enforce clean fixed resolution scaling rules over external media streams to avoid formatting issues on large public video pillars.
Centralized IT Control Racks
Integrate 8 remote server HDMI pipelines directly into a localized workbench display station driven easily by serial automation.
Broadcast & Production Studios
Achieve artifact-free 0-second switching across preview decks without dropping signal locks or encountering blank black screen loops.
Technical Specifications
| Specification Parameter | CH8120K Details |
|---|---|
| Model Name | CH8120K |
| Product Type | Professional Grade 4K 8-Channel HDMI Video Switcher |
| Input Interface | 8 x HDMI Type-A Female ports |
| Output Interface | 1 x HDMI Type-A Female port, 1 x 3.5mm Analog Audio Output jack |
| Input Resolutions Supported | 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz, 1366x768@60Hz (Independent configuration per port via RS-232 EDID management) |
| Output Resolutions Supported | 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz, 1366x768@60Hz (Selectable via physical chassis keys or IR remote control) |
| Automatic Scan Duration | Fixed 3-second interval per signal switch (Togglable On/Off) |
| Maximum Cable Distance | Supports standard copper HDMI connections up to 5 meters. Combined length (Input + Output) must not exceed 10 meters total. |
| Control Protocols | IR Remote Control, RS-232 Serial Commands, Physical Chassis Buttons |
| Power Supply Spec | DC 12V / 1A external power adapter |
| Chassis Material / Color | Industrial grade metal shielding / Textured black |
| Physical Dimensions | 320mm x 107mm x 27mm (Length x Width x Height) |
| Net Weight | 900g |
⚠ Deployment Notes
- It is strongly discouraged to daisy-chain uncertified switchers, splitters, or converters to avoid signal degradation.
- Always employ the original factory-certified TAIWAN PANIO DC 12V adapter to ensure ongoing system stability.
- If integrating the switcher with specialized custom terminal arrays, please consult PANIO engineering beforehand to clear potential incompatibilities.
- For setups exceeding the standard 10m limit, utilizing premium Active Optical HDMI Cables (AOC) is highly recommended.
📦 Package Contents
- CH8120K 8-Port Switcher Host Unit × 1
- Compact Wireless IR Remote Control (Battery not provided) × 1
- Certified DC 12V Power Supply Adapter × 1
- English Technical User Manual × 1
