PANIO CH8800K: Versatile 8x8 HDMI 2.0b Matrix Switcher with 4K@60Hz, HDR10+, and Dolby Vision Support

CH8800K

8 in 8 out 4K 60Hz HDMI2.0b matrix switcher

Support ARC, CEC, Audio, RS-232, TCP/IP

Products / Matrix Switch

Feature

8 inputs and 8 outputs digital audio and video HDMI2.0 matrix switch, which can be easily switched through panel buttons and remote control.
Support 4K @60Hz resolution, and YUV4:4:4, 18G, HDR10+, HLG, Dolby vision.
Each output supports 4K down-conversion to 1080P, which solves the problem that 1080P cannot be displayed when 4K and 1080P are displayed simultaneously.
Support ARC, CEC, EDID functions.
Support HDMI 2.0, HDCP 2.2, DVI 1.0.
Support independent sound output.
Control method: button, Remote control, RS-232, Web GUI.
Support PCM2.0/ 5.1/ 7.1CH, Dolby Digital/ Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/ 24, DTS High Res, DTS-HD Master Audio, DSD.

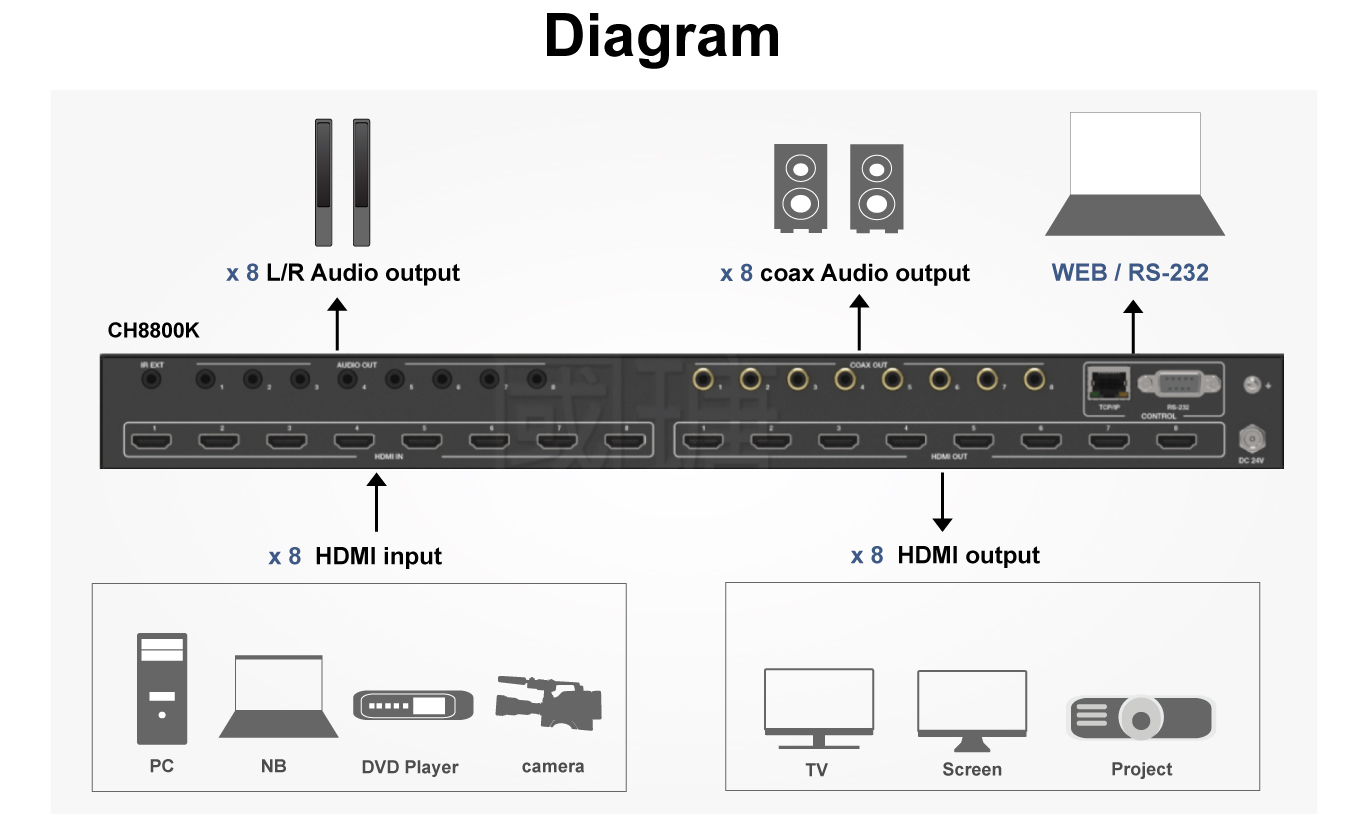

Model Name	CH8800K
Input port	8 x HDMI (Type A Female), IR extension port
Output port	8 x HDMI (Type A Female ), 8 x Coax Audio (RCA), 8 x 3.5mm
Support resolution (Max)	4K @60Hz, YUV4:4:4
HDMI audio format	PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coaxial audio format	PCM2.0, Dolby Digital / Plus, DTS 2.0/ 5.1
L/R audio format	PCM2.0CH
Protocol standard	Support HDMI2.0, HDCP2.2 and DVI 1.0
Bandwidth	18Gbps
Color space	RGB, YCbCr 4:4:4/ 4:2:2/ 4:2:0
Color depth	8-bit, 10-bit, 12-bit
HDR format	HDR10, HDR10+, Dolby Vision, HLG
ESD protection	Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Cable length	Input and output can be connected to a maximum of 5 meters HDMI2.0 cable
Control mode	Button, Remote control, RS-232, TCP/IP
Power supply	DC 12V/5A (unilateral power supply)
Power Consumption	43W (max)
Dimensions	440 x 200 x 44.5mm (LxWxH)
Item Weight	2.8Kg

Please use a certified HDMI2.0 cable to connect the signal.
It is not recommended to serially switcher, distributor, converter, and so on that has not been certified by the factory.
To maintain quality stability, please use the original certified adapter.
If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
Due to shipping safety considerations, the remote control battery not provided.
To use the CEC function, both the Blu-ray player and the TV must have a CEC function. Some of the TVs need to be turned on in the system settings to perform CEC communication normally.
The product supports CEC PASS THROUGH, so when the TV is turned off, the DVD will also be turned off.
