CH8812

8x8 Matrix Switch Video Wall Controller

Matrix Switching and Video Wall Splicing

Products / Video Wall

8x8 Matrix Video Wall Controller

Create advanced visual displays with an 8x8 matrix switch and integrated video wall controller.

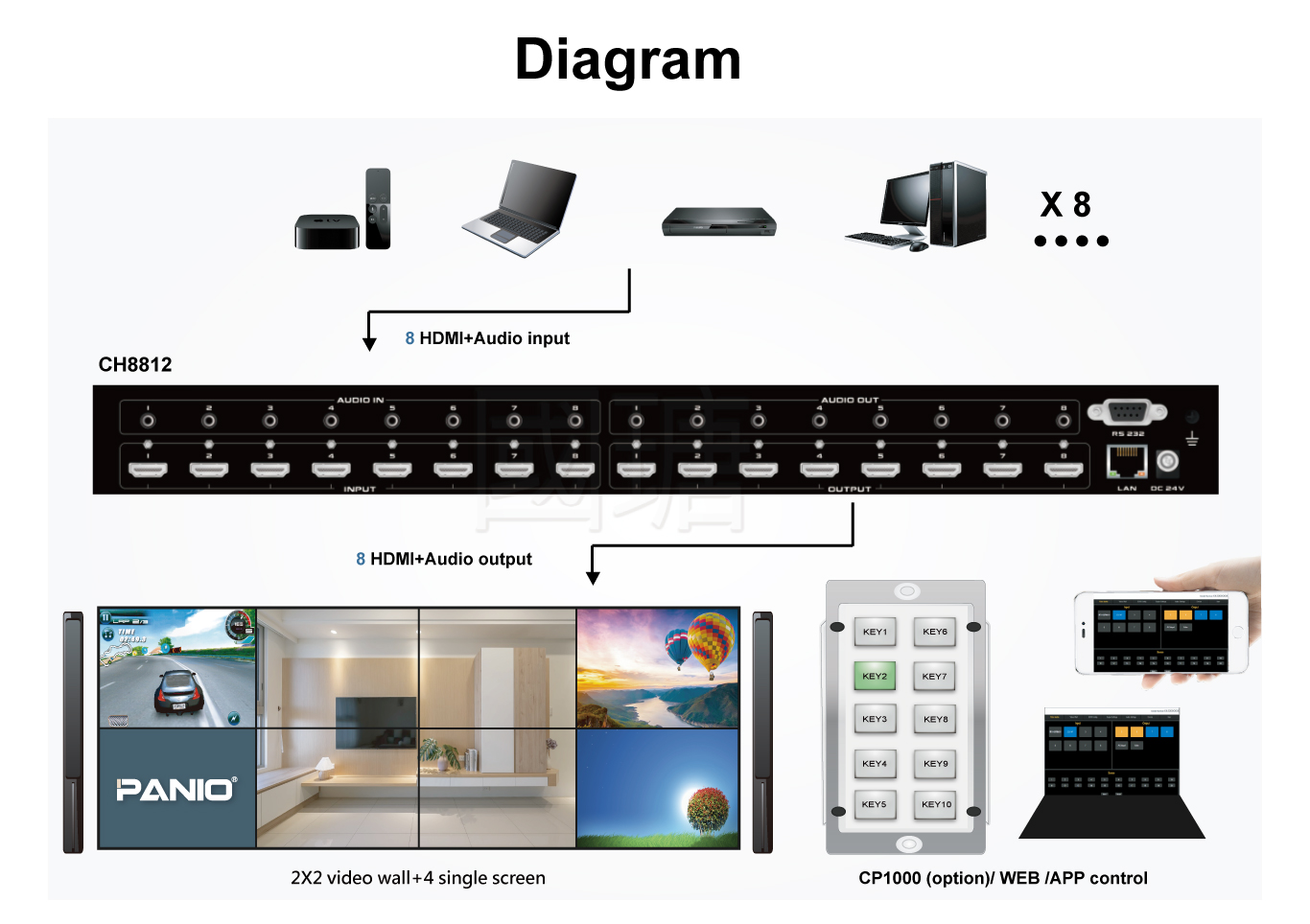

Video Wall and Matrix Switcher in One

Combine flexible matrix switching with 8-screen video wall splicing for dynamic display applications.

Seamless Signal Switching

Enjoy smooth source changes with seamless switching designed to reduce black screens and delays.

Automatic No-Signal Detection

Automatically detects signal loss and switches according to system settings to maintain display continuity.

Latest Active Signal Priority

The system can prioritize the most recently active input source for faster and more convenient signal selection.

Video Wall and Single Screen Synchronization

Support synchronized output on a video wall and individual screens for more flexible display layouts.

3.5mm Audio Output

Connect external speakers or audio systems through the 3.5mm output for independent sound playback.

3.5mm Audio Input

Embed external audio into HDMI content for integrated audio and video transmission.

16 Scene Presets

Use the remote control, front panel buttons, Web GUI, or RS-232 commands to store and recall display scenes quickly.

Remote Push Button Control

Supports LAN (PoE) or RS-232 remote control integration, including PANIO CP1000 push button controller applications.

PANIO CH8812 8x8 Matrix Switch Video Wall Controller
Features

  • 8-in, 8-out HDMI matrix switcher with integrated video wall processor.

  • Supports up to 1080p input and output resolution, with backward compatibility.

  • Supports HDMI 1.4a and HDCP 1.4.

  • Seamless switching technology minimizes black screens and delays during source changes.

  • Supports simultaneous display on video walls and individual screens.

  • EDID management helps reduce image instability, flicker, and compatibility issues.

  • Supports audio input embedding and independent audio output extraction.

  • Supports button control, remote control, TCP/IP, APP, RS-232, and remote IP/RS-232 push button controller integration.

  • Compatible with remote control button device CP1000 for simplified one-button command execution.

  • Can work with GMS05 to extend HDMI signals up to 100 meters for long-distance dual-screen display.

Specifications

Model Name CH8812
Input 8 × HDMI, 8 × 3.5mm audio
Output 8 × HDMI, 8 × 3.5mm audio
Input Resolution Maximum 1920 × 1080 @ 60Hz, backward compatible
Video Wall Output Resolution 1080p / 720p / 1366 × 768 @ 60Hz
Control Methods Remote control, TCP/IP, APP, RS-232, front panel buttons
Power AC 110V-240V
Dimensions 430 × 260 × 44 mm (L × W × H)
Weight 4 kg

Notes

  • Use certified HDMI cables to ensure stable video transmission and display quality.
  • To maintain optimal performance, avoid uncertified serial switchers, splitters, or converters.
  • The total HDMI cable length (input + output) should not exceed 10 meters. For longer distances, optical HDMI cables are recommended.

Package Contents

  • 1 × CH8812
  • 1 × Power cord
  • 1 × Remote control (battery not included)
  • 1 × RS-232 cable
  • 1 × Rack accessories
  • 1 × User manual
