CH8830K_B


4K 8x9 HDMI Matrix Switch

Support audio separation output, 3xRS232, TCP/IP, APP


Products / Matrix Switch

4K 30Hz resolution

Supports 3840 × 2160 30Hz resolution.

APP control

Support Android and ios mobile app remote control.

EDID

Independent EDID for each port.

Sound output

Support 3.5mm independent sound output.

3 X RS-232 control

The next-level equipment can be controlled through the RS-232 of the matrix switcher.

Web UI Control

Support TCP/IP port, use the browser to enter the Web UI for remote operation.

Easy 2-button switching

Simplify the key switch mode, just press the input and output numbers to complete the switch.

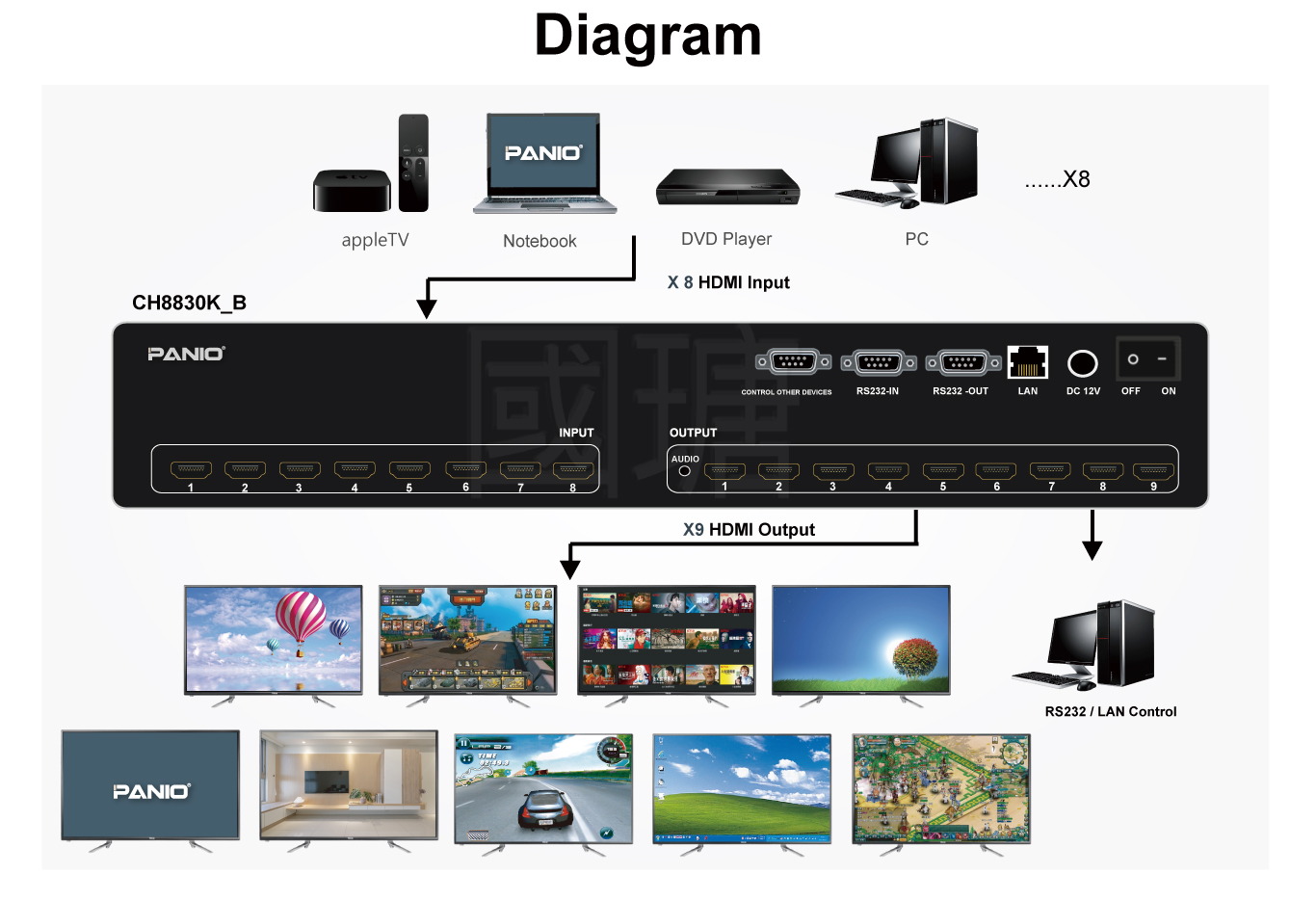

4K 8*9 Matrix switch
Feature
  • Full-featured 8-in 9-out digital audio and video 4K HDMI audio and video signal matrix switcher.
  • It can be selected arbitrarily, 1 input, 1 output, 1 input, and multiple outputs or cross selection switching for each channel.
  • Support 4K x 2K @30Hz, 1080P @60Hz, 1080P 3D @60Hz.
  • Deep Color supports 48/36/30/24-bit.
  • Support the 1st output sound separate independent output.
  • Support independent manual EDID function for each port.
  • Support LPCM 7.1CH, Dolby True HD, Dolby Digital, and DTS-HD Master Audio transmission.
  • Two-button control method: the first press selects the input device, the second press selects the output port, and supports quick cancellation of the selected port.
  • Control method: button, remote control, 3xRS-232, Web UI, mobile phone tablet APP.
  • It can store 8 kinds of scenes for use, and quickly recall the saved scene modes without switching operations one by one.
  • Radio and television grade switching chip, image switching can be completed with a single chip, and the switching efficiency is higher.
  • Chinese and English WEB control interface.
  • Support 19" rack size.
PANIO 4K

Specification

Model Name CH8830K_B
Input 8 x HDMI
Output 9 x HDMI, 1 x 3.5mm
Support resolution The maximum resolution is 3840x2160 @30HZ, backward compatible.
Electrostatic protection Human body discharge mode: ± 8kV (air-gap discharge) ±4kV (contact discharge)
Control Interface 2 x RS-232 Male, 1 x RS-232 Female, 1 x RJ-45
The video transmission distance (Max.) Extended through a standard HDMI cable, and the output/input length can be up to 5m each (over this length, please use it with an extender)
Control method Button, remote control, 3xRS232, WEB, ios Android APP
Power DC 12V/ 2A
Dimensions 440 x 150 x 44mm (LxWxH)
Weight 2Kg

Note:

  • Please use 4K cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The output + input cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X CH8830K_B
  • 1 X 12V 2A Adapter
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
