COC


Full‑Featured USB‑C Active Optical Cable (AOC)

10Gbps USB 3.2 Gen 2 • 8K/60 or 4K/144 via DP Alt Mode • 60W PD • EMI/RFI Resistant • 5–15 m


Products / Cable

Hybrid Fiber + Copper Architecture

Combines optical fibers for high‑speed lanes with tinned copper for low‑speed data and power—delivering long‑distance, lossless transmission while resisting EMI/RFI in demanding AV and IT environments.

8K/60 or 4K/144 Visuals via DP Alt Mode

Automatically switches between 4‑lane DP 2.1 + USB 2.0 and 2‑lane DP 1.4 + USB 3.2 10G to match your workflow—cinema‑grade clarity or high‑refresh precision when you need it.

10Gbps Data + 60W USB‑PD

Transfers large projects fast and powers devices up to 20V/3A, enabling reverse power from supported displays to laptops for cleaner desks and fewer adapters.

Installation‑Friendly Design

Slender 6.5 mm diameter, tight bend radius and lightweight build simplify in‑wall runs and rack‑to‑desk pulls across homes, offices and studios.

Plug‑and‑Play Reliability

Built‑in E‑Mark chip negotiates power and modes safely; no external power required. Backward compatible with USB 2.0/1.1 peripherals.

Full‑Featured USB‑C Active Optical Cable
Feature
  • USB 3.2 Gen 2 Type‑C connectors deliver up to 10Gbps transfer; backward compatible with USB 2.0/1.1.
  • Auto‑switching full‑function modes: 4‑lane DP 2.1 + USB 2.0, or 2‑lane DP 1.4 + USB 3.2 10G.
  • Video support: 8K@60 or 4K@144/120 in 4‑lane mode; 4K@60 in 2‑lane mode (DP Alt Mode required).
  • Long‑distance lossless runs up to 15 m, far beyond traditional copper‑only Type‑C cables.
  • 60W PD 3.0 (20V/3A) with safe negotiation via E‑Mark; supports reverse power from display to laptop.
  • Strong EMI/RFI immunity; ideal for server rooms, conference systems and live production spaces.
  • Touch‑back support for interactive Type‑C displays to control the connected host device.
  • Metal, nickel‑plated housings for durability; tested 10,000+ mating cycles.
  • No external power required; true plug‑and‑play deployment.

Specification

Model Name COC
USB Transfer Rate USB 3.2 Gen 2 (10Gbps); backward compatible with USB 2.0/1.1
Full‑Function Modes 4‑lane DP 2.1 + USB 2.0
2‑lane DP 1.4 + USB 3.2 10G
Video Resolution 4‑lane: up to 8K@60 / 4K@144/120
2‑lane: up to 4K@60 (DP Alt Mode)
Wavelength 850 nm
Cable Length Options 5 m / 10 m / 15 m
ESD Protection IEC 61000‑4‑2: ±8kV (air), ±4kV (contact)

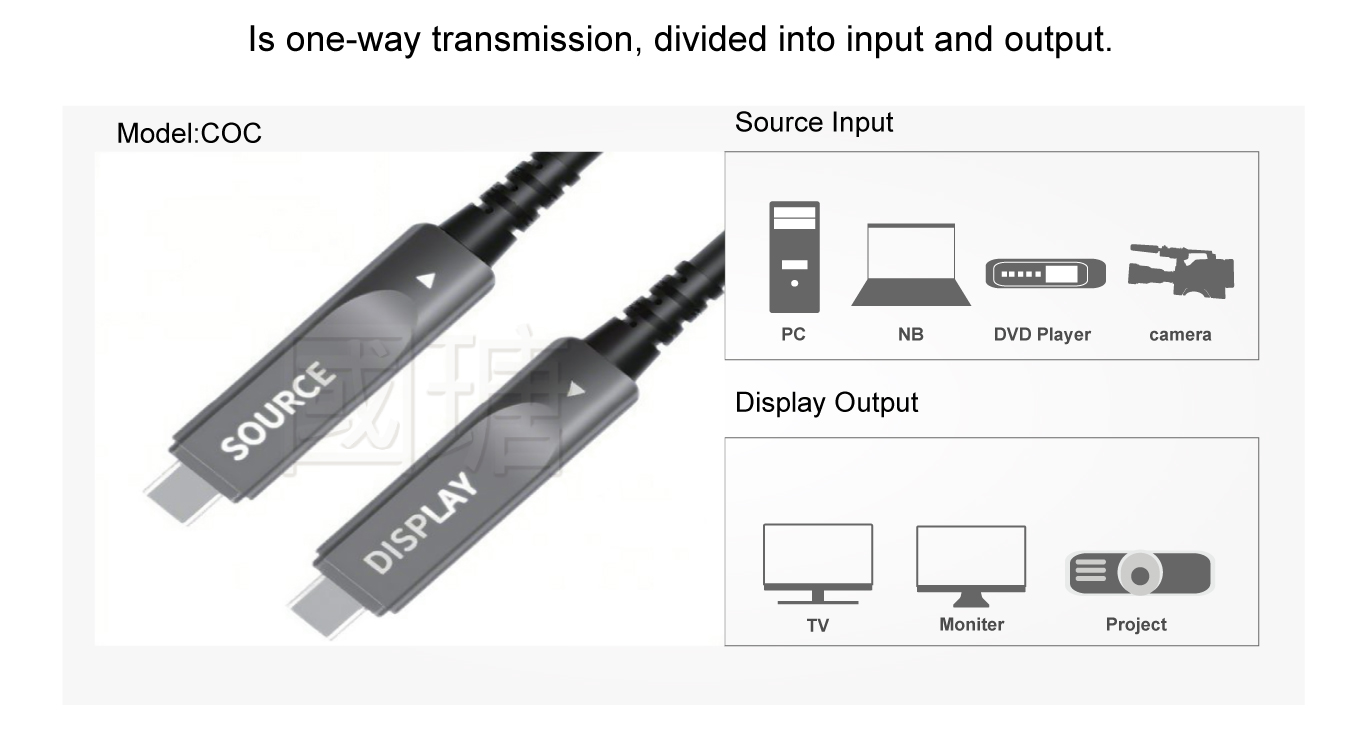

Connectors Source: 1 × USB Type‑C male; Display: 1 × USB Type‑C male; metal nickel‑plated housings
Cable Structure Hybrid fiber optic + tinned copper; Ø 6.5 mm; PVC jacket (wear‑resistant, flame‑retardant); black
Power & Charging No external power required; operating voltage 5V±0.25; USB‑PD 3.0 60W (20V/3A), reverse power supported
Compatible Devices Laptops/desktops, smartphones, cameras, USB drives, live stream mixers, game consoles, TV boxes, UHD TVs, projectors, VR headsets, etc.
Environmental Operating: 0–40 °C; Storage: −20–60 °C; Humidity: 20–90% RH (non‑condensing)
Compliance & Durability 10,000+ plug cycles; EMI/RFI resistant design

Application Scenario A

  • 4‑Lane DP 2.1 + USB 2.0: 8K@60 or 4K@144 video + basic USB 2.0 peripherals; ideal for 8K UHD TVs, gaming/creator monitors.
  • Connection: Host (USB‑C) → COC AOC → 8K/4K Display (USB‑C DisplayPort Alt Mode).
  • Clean setups with reverse power from supported display to laptop (up to 60W).

Application Scenario B

  • 2‑Lane DP 1.4 + USB 3.2 10G: 4K@60 video + 10Gbps data for rapid file transfer and high‑speed peripherals.
  • Connection: Laptop (USB‑C) → COC AOC → Office Monitor (USB‑C DP Alt Mode); simultaneously use other USB 3.0 devices on the host.
  • Perfect for conference rooms, post‑production and studio workstations.

Note:

  • Use certified USB‑C signal cables and adapters to ensure optimal performance and reliability.
  • For in‑wall/pipe routing, avoid sharp 90° pulls; use gentle curves to protect optical fibers.
  • Do not excessively pull, twist or knot the cable; maximum tensile load 35 kg.
  • Hold the connector housing when plugging/unplugging; avoid impacts to protect the built‑in E‑Mark chip.
  • Ensure endpoints support USB‑C DP Alt Mode for video output; capabilities vary by device/OS.

Package Contents

  • 1 × COC Full‑Featured USB‑C Active Optical Cable (selected length)
  • 1 × Quick start guide
  • Warranty information
