Professional Wall-Mounted Control Host with Volume Knob
Volume Knob | 8 Programmable Keys | Lock Protection | RS-232 ×2 | RELAY ×2 | LAN / PoE
CP1100_B
Products / Professional Control System
Key Features
Volume Knob Control
Integrated rotary knob provides intuitive volume adjustment. The knob can be configured for external control commands based on the project requirement.
8 Programmable Keys + Lock Key
Eight user-defined silicone command keys plus one lock button support flexible room control and secure operation protection.
LAN / PoE Connectivity
Built-in RJ45 LAN interface supports TCP and UDP control. PoE power support simplifies cabling and enables clean wall-mounted installation.
Dual RS-232 Control
Two RS-232 ports allow direct serial command output for displays, projectors, matrices, processors and other AV devices.
Dual Relay Output
Two relay outputs support latch, release and momentary action modes for screen lift, power control, curtains or other contact-closure applications.
Web-Based Configuration
Configure key names, command protocols, IP parameters, serial parameters, relay actions and system settings through the built-in web interface.

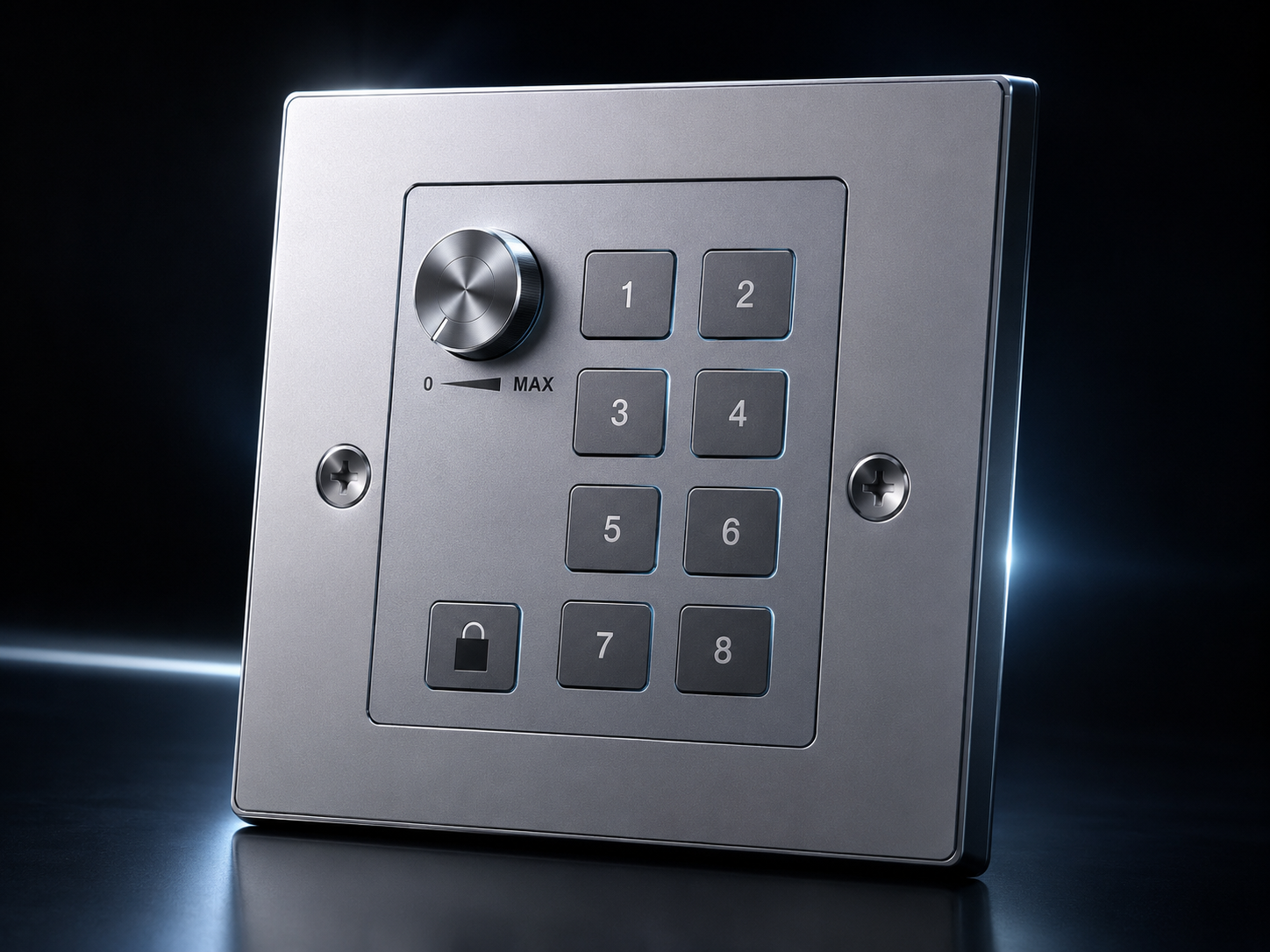

High-End Wall-Mounted Control Interface
Premium 9-key control host design with rotary volume knob, lock function and wall-mounted form factor.
Why Choose CP1100_B?
▸ Designed for Professional AV Control
Suitable for conference rooms, smart classrooms, exhibition halls, digital operating rooms, broadcast environments, bars and restaurants.
▸ Multiple Output Interfaces
One wall panel can control equipment through LAN, RS-232 and relay outputs, making it adaptable for mixed-device environments.
▸ Cleaner Installation with PoE
When connected to a PoE switch, the unit can operate without a local DC power adapter, reducing wiring complexity at the installation site.
▸ Lock Protection
Long-press the lock key for three seconds to lock or unlock the control panel, helping prevent accidental or unauthorized operation.
▸ Project-Friendly Web Setup
The configuration page supports TCP, UDP, RS-232, relay and LUA command settings for common integration scenarios.
▸ Compact 86 mm Wall Plate
86 mm × 86 mm wall-mounted faceplate size makes CP1100_B ideal for clean room-control panels and commercial control endpoints.

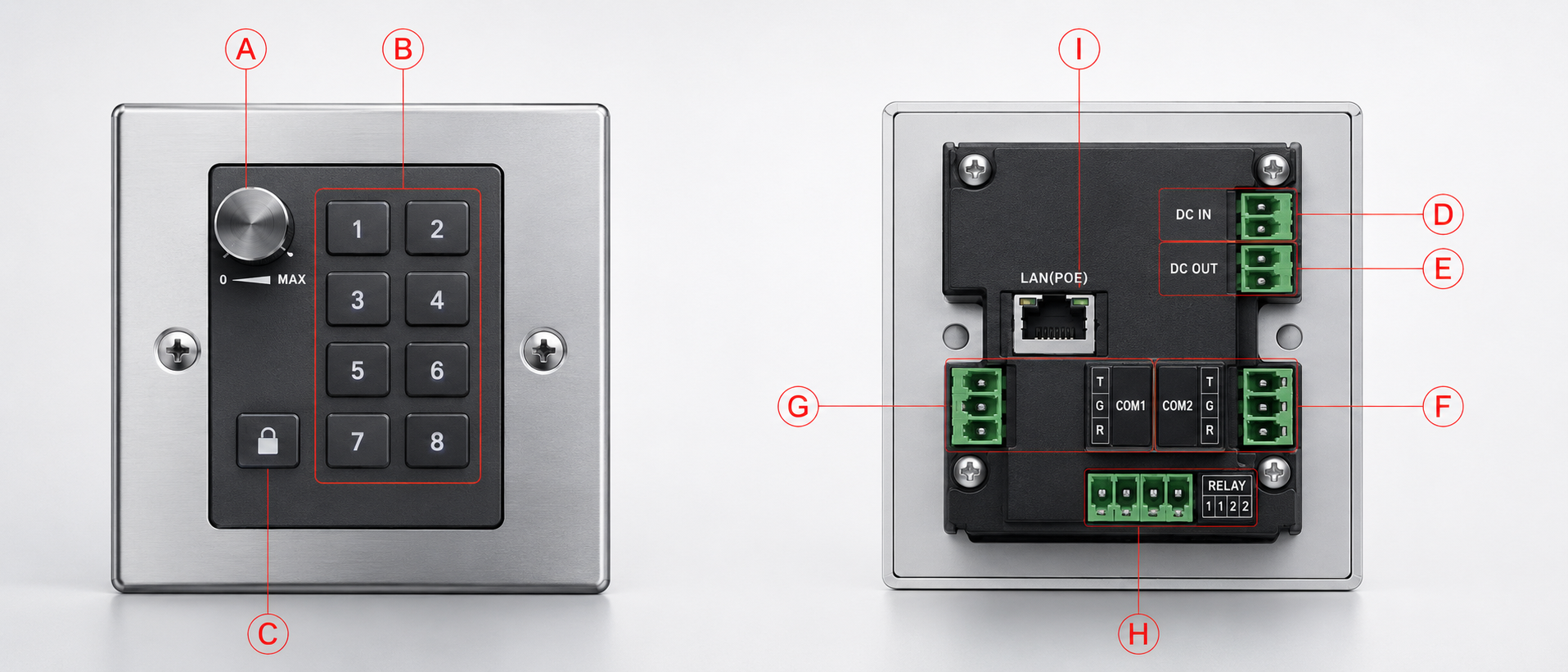

Product Diagram
Front and rear interface overview for CP1100_B, including the volume knob, programmable keys, lock button, power terminals, RS-232 ports, relay outputs and LAN / PoE port.
A: Volume Knob / B: Command Keys / C: Lock Key / D: DC IN / E: DC OUT / F: COM2 / G: COM1 / H: RELAY / I: LAN (PoE)
Detailed Functions
- Versatile Hardware Interface: The CP1100_B is a premium wall-mounted, IP-enabled control terminal featuring an intuitive rotary volume knob, a dedicated security lock key, and eight fully programmable tactile command keys for comprehensive room control.
- Multi-Protocol Control Output: Supports seamless integration with diverse AV, automation, and IT equipment via TCP, UDP, dual RS-232 ports, relay outputs, and advanced LUA scripting configurations.
- Network & Security Management: Out-of-the-box ready with a default web management IP of 192.168.0.80. It features dual-tier role-based access control with default administrator (admin / admin) and standard user (user / user) credentials.
- Virtual Web Control: The built-in 'Home' and 'Panel' web pages provide a visual, browser-based dashboard, allowing users to remotely trigger pre-configured commands from a PC, tablet, or smartphone.
- Advanced Command Configuration: The 'Command' page offers deep customization for knob and key behaviors, including protocol selection, command formatting (ASCII/HEX), target IP/port assignment, baud rate adjustments, and relay action triggers.
- System Settings & Maintenance: The 'Settings' and 'More' menus facilitate comprehensive device lifecycle management, enabling static IP configuration, password updates, remote reboots, configuration import/export, firmware upgrades, and UI customization (skin and language switching).
- Flexible Relay Actions: Equipped with versatile relay output modes including Latch, Release, and Momentary. The Momentary mode automatically closes the relay for two seconds before releasing, which is ideal for motorized projection screens, projector lifts, or electronic blinds.
- Accidental Operation Prevention: Features a secure, built-in panel lock mechanism. Users can easily lock or unlock the physical control interface by long-pressing the dedicated lock key for three seconds, preventing unauthorized or accidental adjustments.
Ideal Applications
CP1100_B provides a compact, tactile and reliable control endpoint for professional AV, automation and commercial room-control systems.
Meeting Rooms
Centralized control for display power, source switching, audio volume and presentation scenes.
Smart Classrooms
Simple wall-panel operation for teachers to control AV, projector, screen and room equipment.
Exhibition Halls
Reliable scene and device control for multimedia displays, signage and interactive environments.
Digital Operating Rooms
Wall-mounted control endpoint for selected AV and equipment-control workflows.
Broadcast & TV
Compact command panel for control rooms, studios and production support systems.
Hospitality & Dining
Convenient control for music, AV, lighting scenes and selected automation devices.
Technical Specifications
| Specification | CP1100_B |
|---|---|
| Model | CP1100_B |
| Product Type | 9-key wall-mounted control host with volume knob |
| Control Interface | Volume knob, 8 programmable keys, lock key, RS-232 ×2, RELAY ×2, LAN ×1 |
| Network Control | RJ45 LAN port; TCP / UDP command control; web-based configuration |
| Serial Control | 2 × RS-232 control ports |
| Relay Control | 2 × relay outputs; latch, release and momentary modes |
| Command Format | ASCII / HEX command input supported |
| Default IP Address | 192.168.0.80 |
| Default Admin Account | admin / admin |
| Default User Account | user / user |
| PoE Support | IEEE 802.3af/at |
| Power Input | Exchangeable power adapter: AC 220–240V 50/60Hz; DC 12V / 1.5A |
| Power Consumption | 4.8W |
| Dimensions (W×D×H) | 86 mm × 86 mm × 39.8 mm |
| Weight | 0.24 kg |
| Package Weight | 0.52 kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | 0°C to 50°C |
| Operating Humidity | 10% – 90% |
📦 Package Contents
- CP1100_B 9-key control host with volume knob × 1
- 3-pin Phoenix terminal × 2
- 2-pin Phoenix terminal × 3
- 12V / 1.5A power adapter × 1
- Power adapter plug converter × 1
- User manual × 1
⚠ Installation Notes
- Use a protected, grounded AC power system when local power is used.
- Power off the device before connecting or disconnecting signal cables.
- Keep the installation environment ventilated, dry and free from liquid ingress.
- Use shielded network cable and shielded RJ45 connectors for reliable system deployment.
