Web-Based Programming Central Control Host with IR Learning
Linux Platform | PoE / 24VDC Power | IR Learning | RS-232/422/485 | Relay / I/O Automation
CP5100_B
Products / Professional Control System
Key Features
Compact Central Control Host
Professional control processor for centralized AV, room automation, command centers and smart-building control projects.
Web-Based GUI Programming
Browser-based project programming supports login programming, logic-node editing and vision-node UI design without dedicated client software.
Built-In IR Learning
Integrated IR learning window captures and manages infrared commands for displays, source devices, air conditioners and other IR-controlled equipment.
Multi-I/O Integration
LAN(PoE), COM, relay, I/O, infrared and one-way RS-232 interfaces provide flexible device control in one compact host.
RS-232 / RS-422 / RS-485 COM
Dual 7-pin Phoenix COM connectors support configurable serial communication for professional AV and automation equipment.
PoE / 24VDC Power
Flexible power architecture supports 24VDC 1A input or Power over Ethernet through the LAN port for simplified installation.

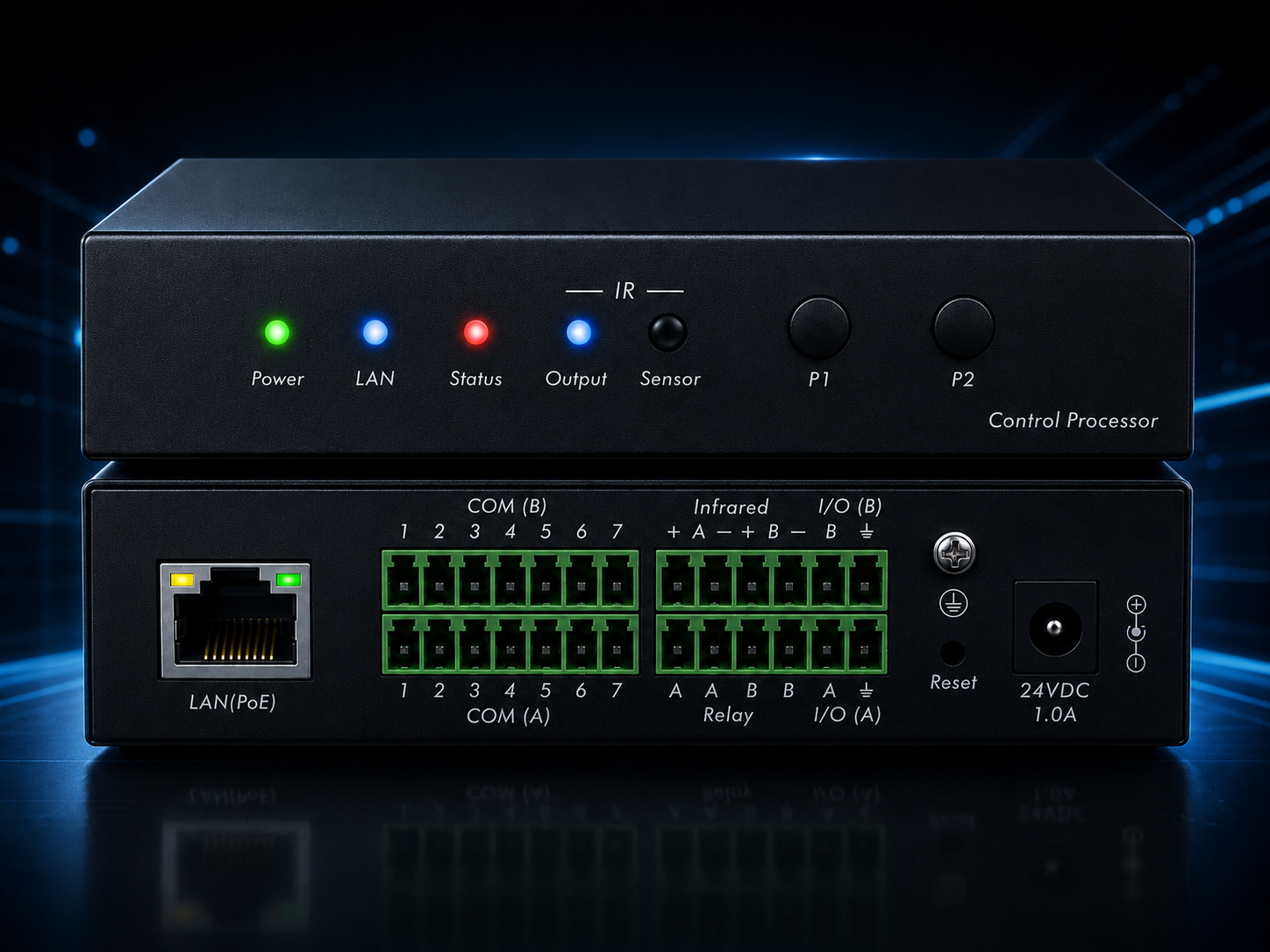

CP5100_B compact web-based programming central control host with IR learning.
Why Choose CP5100_B?
▸ Project-Based Web Programming
Create logic workflows and customized control pages through a browser-based interface, reducing installation and maintenance complexity.
▸ Complete Control Core
Combines serial control, IR learning, relay output, digital I/O and network programming in a single compact control processor.
▸ IR Device Integration
Built-in IR learning simplifies integration with IR-based displays, source devices, air conditioners and legacy equipment.
▸ Stable Linux Platform
Industrial Linux platform with ARM Cortex-A55 processor, 2048M RAM and 8192M EMMC flash supports reliable deployment.
▸ Compact Installation
125.5 × 116 × 30 mm enclosure fits easily into AV racks, equipment cabinets, desks and project control locations.
▸ Professional AV Applications
Ideal for meeting rooms, command centers, training rooms, exhibition spaces, smart buildings and automation projects.
Specification Highlights
- Professional Central Control Host: CP5100_B is designed as the control core for centralized AV, display, equipment logic and automation system projects.
- Browser-Based Programming: Web GUI programming supports login programming, logic-node editing and vision-node UI design for customized project control workflows.
- Built-In IR Learning: The IR learning window captures infrared commands and allows installers to manage IR control for common display and source equipment.
- Dual COM Control: COM(A) and COM(B) provide 7-pin Phoenix connectivity for RS-232 / RS-422 / RS-485 serial control.
- Relay Automation: Isolated low-voltage relay output supports dry-contact automation such as screen lift, curtain, trigger and power-control applications.
- Digital I/O Integration: Digital I/O inputs support sensor linkage, trigger input and automation-event handling.
- Infrared / One-Way RS-232 Ports: Two ports can be used for infrared control or one-way RS-232 serial output depending on system requirements.
- LAN(PoE) Interface: RJ45 10M/100M LAN interface supports network programming and Power over Ethernet deployment.
- Front Preset Buttons: Two front-panel preset buttons provide direct local operation for quick system actions.
- Industrial Hardware Platform: K3568 quad-core ARM Cortex-A55 platform, Linux 4.1.19, 2048M RAM and 8192M EMMC flash.
Ideal Applications
CP5100_B provides a compact programmable control core for professional AV and automation systems requiring web-based logic, serial control, IR learning and relay / I/O integration.
Corporate Meeting Rooms
Room automation, presentation control, display control and preset recall.
Command Centers
Centralized control processor for AV, display and equipment logic.
Education & Training
Classroom AV, lighting, display and source control for teaching spaces.
Exhibition Centers
Multimedia, scene control, trigger and interactive equipment automation.
Smart Buildings
Relay, I/O, sensor and network-based control for building automation.
Industrial / Home Automation
Integrates RS-232/422/485, relay, I/O and IR devices in one control host.
Technical Specifications
| Specification | CP5100_B |
|---|---|
| Model | CP5100_B |
| Product Name | Web-Based Programming Central Control Host with IR Learning |
| Product Type | Compact central control processor / web-based programming control host |
| CPU | K3568 quad-core ARM Cortex-A55, 2.0GHz |
| Operating System | Linux 4.1.19 |
| Memory | 2048M RAM |
| Flash | 8192M EMMC |
| LAN | 1 × RJ45 10M / 100M LAN(PoE) port |
| COM(A/B) | 2 × 7-pin Phoenix connectors for RS-232 / RS-422 / RS-485 |
| Relay | 2 isolated low-voltage relay groups, normally open, 30VDC / AC 1A |
| I/O | 2 × 2-pin digital I/O input ports |
| Infrared / Serial | 2 × infrared or one-way RS-232 serial ports |
| RST | 1 × system reset button |
| LED | 3 × LED system status indicators |
| IR Learning | Built-in IR learning window |
| Front Buttons | 2 × front-panel preset buttons |
| Power Supply | 24VDC 1A or PoE over LAN |
| Operating Temperature | 0°C to 50°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Dimensions / Weight | 125.5 × 116 × 30 mm, approx. 200 g |
Web Programming Workflow
- Connect CP5100_B to the project network through the LAN(PoE) port and power the device by PoE or 24VDC input.
- Access the web programming interface through a browser to configure project logic and control UI pages.
- Use login programming to manage project access and commissioning workflow.
- Use logic-node programming to build control logic, device interaction and automation linkage.
- Use vision-node UI design to create customized room-control pages for operators and end users.
- Assign serial, infrared, relay and I/O actions according to the connected devices and project requirements.
| Programming Item | Description |
|---|---|
| Web GUI Programming | Browser-based workflow for project programming and control UI configuration. |
| Logic Node | Visual logic editing for device control, event linkage and automation behavior. |
| Vision Node | Custom control UI page design for room operation, equipment control and scene recall. |
| IR Learning | Captures and manages infrared commands for external IR-controlled equipment. |
⚠ Deployment Notes
- Use 24VDC 1A or PoE power according to the project power design.
- Confirm LAN, COM, relay, I/O and IR wiring before powering on the control system.
- Keep serial parameters consistent with the controlled device protocol.
- Install the controller in a ventilated, dry and dust-protected environment.
- Use qualified maintenance personnel for installation, service and project commissioning.
- Back up project configuration before major firmware or programming changes.
📦 Package Contents
- CP5100_B control host × 1
- 24VDC power adapter or project power accessory set × 1
- Phoenix terminal blocks for COM, relay, I/O and IR connections
- Quick installation guide / user manual × 1
Package contents may vary depending on project configuration.
Need a Compact Web-Based Control Host for AV Projects?
Contact PANIO for professional AV control-system integration, web GUI programming, IR learning and automation project support.
