CQ4110K


4K HDMI KVM Multi-Computer Centralized Manager


Products / Multi-Viewer Switch

Ultra high resolution

Support output resolution up to 4K 60Hz, the 4-split mode still keeps the picture clear.

Split screen

Support 1 monitor to display 2/3/4 split screen.

PIP Function

Support 1 large 1 small or 2 small picture-in-picture displays.

Quick switch

When switching the signal source, no black screen 0 seconds fast display function.

Mouse cross-screen switching

Use the mouse to traverse different computer screens at will.

RS-232 port

Support RS-232 remote control.

Save scene

4 sets of scenes can be stored for easy and quick recall without resetting.

Video separation

With audio and video separation technology, a built-in 3.5mm audio port, and additional speakers can be connected to output sound.

Screen rotation function

It can be rotated 90 degrees and 180 degrees in full screen and can be rotated 180 degrees for every single screen in a 4-split screen.

The screen is not deformed

In the two-split display mode, the screen is not distorted and the 16:9 ratio is maintained.

Adjustable screen sorting

In split display mode, the display position can be changed without plugging or unplugging the signal source.

4K 60Hz HDMI 4 split screen kvm switcher
4K 60Hz HDMI 4 split screen kvm switcher
Feature
  • Support 4-port HDMI+ 4-port USB signal input.
  • 1 port HDMI2.0 signal input, the highest resolution supports 3840x2160 @60HZ.
  • 3 ports HDMI1.4 signal input, the highest resolution supports 3840x2160 @30HZ.
  • Support output resolution: 4K 60Hz, 4K 30Hz, 1080P, 720P.
  • Support mouse cross-screen switching function, as long as you easily move the mouse across the boundary of the split screen, you can jump to other computer host screen control.

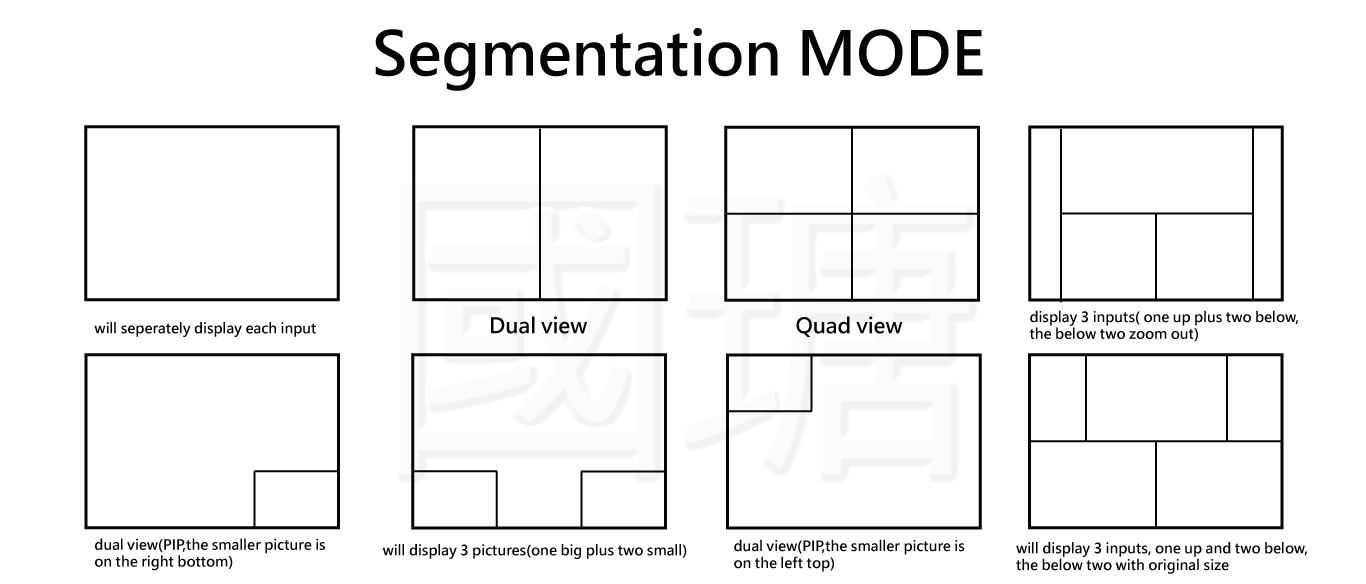

  • Built-in multiple screen modes: 4-split screen/ 3-split screen/ 2-split screen/ 1 large and 1 small picture-in-picture/ 1 large and 2 small picture-in-picture/ full screen.
  • It can be rotated 90 degrees and 180 degrees in full screen and can be rotated 180 degrees for every screen in a 4-split screen.
  • Support Key switch/ Hotkey switch/ Remote control switch/ Mouse cross-screen switch/ RS-232 command.
  • Support video separation technology, output built-in 3.5mm audio port, and additional speakers can be connected to output sound.
  • Support scene storage function, you can quickly use the various display modes stored.
TAIWAN PANIO 4K

Specification

Model Name CQ4110K

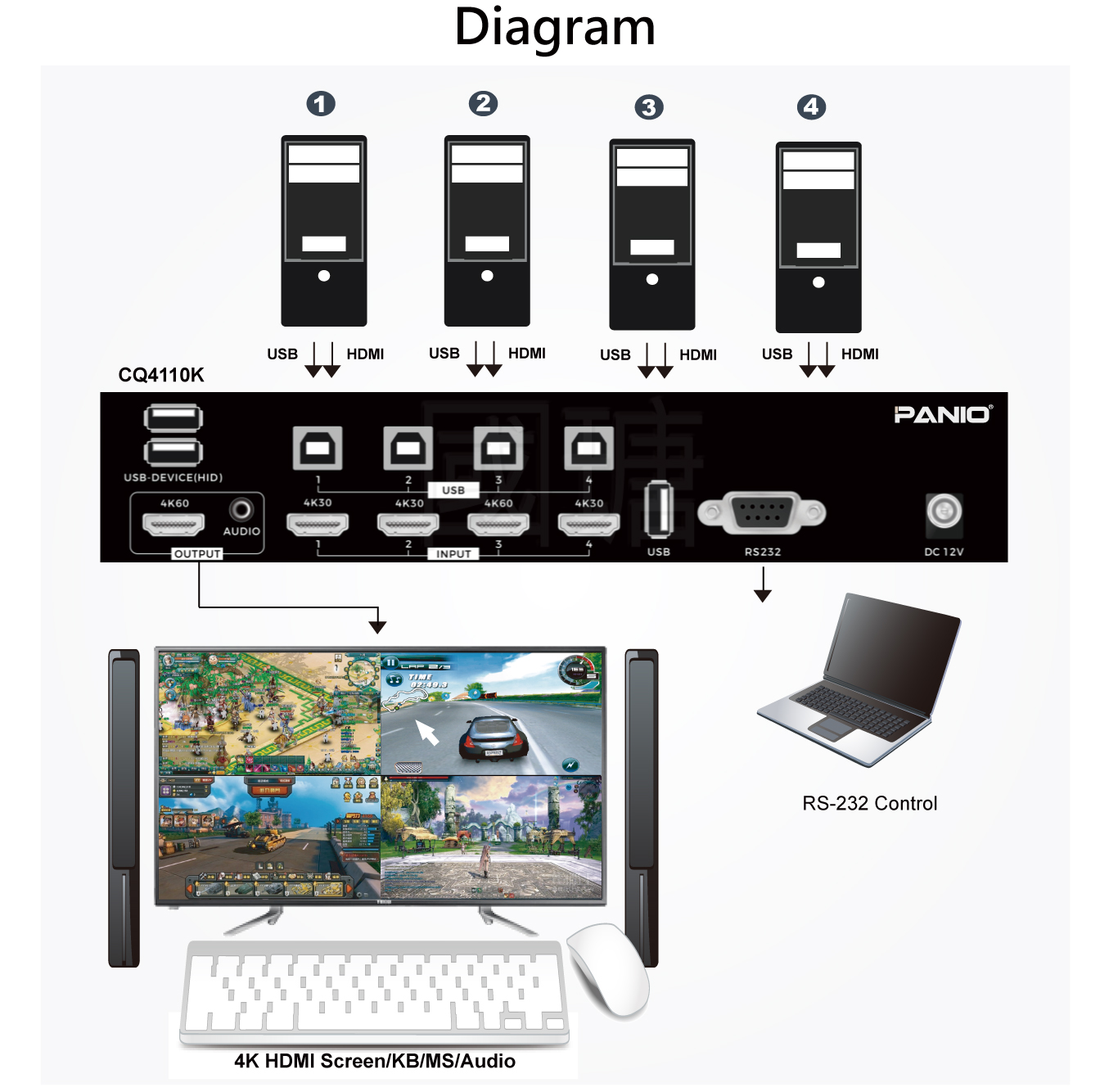

Input 4 x HDMI, 4 x USB
Output 1 x HDMI, 2 x USB for mouse/ keyboard, 1 x 3.5mm
Input resolution 1-channel input supports up to 3840x2160 60HZ
3-channel input supports up to 3840x2160 30HZ
Output resolution Support 4K 60HZ, 4K 30HZ, 1080P, 720P.
Presentation mode 4-split screen / 3-split screen / 2-split screen / 1 large 1 small picture-in-picture / 1 large 2 small picture-in-picture / full screen
The video transmission distance (Max.) Extended through a standard HDMI cable, and the output/input length can be up to 5m each (over this length, please use it with an extender)
Control method Remote control, button, hotkey, USB mouse cross-screen switching, RS-232 command
Power DC 12V 2A
Dimensions 223 x 92 x 44mm ( LxWxH )
Weight 800g

Note:

  • Please use 4K cable to connect the signal.
  • Please use the original certified USB cable.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified adapter.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The 4x USB cables and HDMI cables should be in good order. If the wrong number is connected, the USB cannot be connected to the same computer, resulting in the keyboard and mouse not working.
  • Some monitoring hosts or industrial computers are not compatible with this device.

Package Contents

  • 1 X CQ4110K
  • 1 X DC 12V 1.5A
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
