CQ9000


Professional 9‑Port Split‑Screen KVM Switch

Control up to 9 computers with split‑screen layouts and seamless switching


Products / KVM Switch

High‑Resolution Output

Supports up to 4K 60Hz output, with backward compatibility for various lower resolutions.

KVM Management

Simultaneously control 9 computers; mouse can seamlessly cross sub‑windows in 9‑split mode.

Zero‑Second Switch

Built‑in full‑screen 0‑second seamless switching for smooth transitions without black screens.

Picture‑in‑Picture Mode

Display any signal source in movable and resizable windows at arbitrary positions.

Comprehensive Control

Supports front‑panel buttons, remote control, RS‑232, web interface, keyboard hotkeys, and mouse control.

Multiple Split Modes

Supports 9‑, 4‑, 2‑split, one large with multiple small windows—ideal for monitoring and dispatch centers.

Subtitle Overlay

Web‑editable subtitles with control over scrolling, position, font color, background, and transparency.

Quick‑Call Save

Save presets for instant recall of layouts and settings.

Audio De‑Embedding

Includes 3.5mm audio de‑embed for connection to external sound systems.

19‑inch Rack Design

19″ rack-mountable for professional installation environments.

Control Console Extension Capability

Modular kit for up to 100m remote control of 9 PCs with a single, power-free receiver.

CQ9000 Professional 9‑Port Split‑Screen KVM Switch

Features

  • Supports 4K 60Hz high‑resolution output
  • Control up to 9 computers with seamless mouse traversal in split‑screen mode
  • Zero‑second seamless switching—no black screen
  • Picture‑in‑picture mode with movable and resizable windows
  • Supports multiple display split modes, including 9, 8, 6, 4, 2-window layouts and full-screen view, offering flexible solutions for diverse professional applications
  • Subtitle overlay with editing for scrolling, position, font, background, transparency
  • Preset quick‑call key for instant layout recall
  • 3.5mm audio de‑embedding output
  • Multiple control interfaces: panel buttons, remote, RS‑232, web, hotkeys, mouse
  • 19″ rack‑mount design

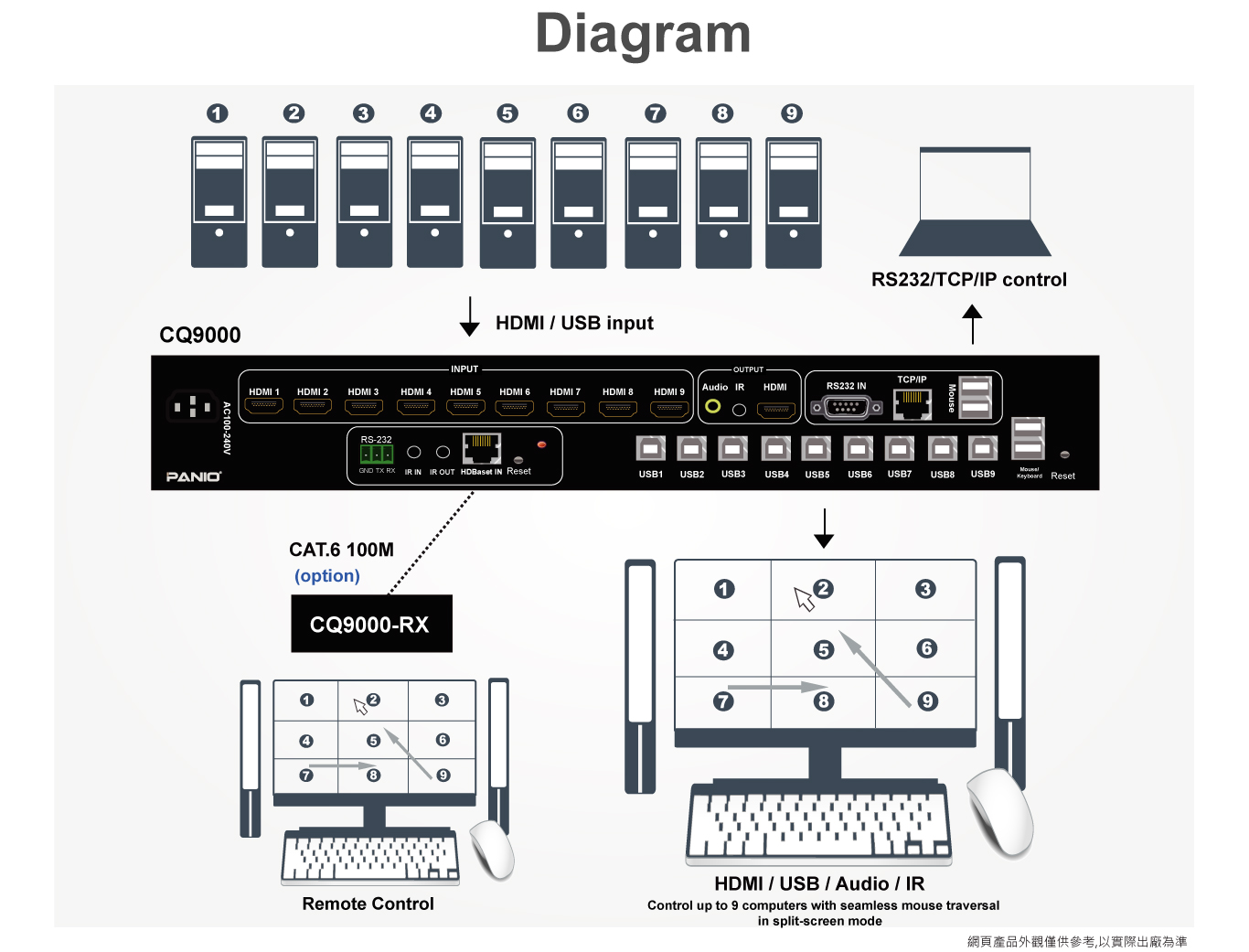

  • Optional modular console extender kit allows remote control of up to 9 computers with a single receiver, supporting distances up to 100 meters. The receiver requires no external power, greatly simplifying cabling

Specifications

Model Name CQ9000
Input Interfaces 9 × HDMI, 9 × USB Type‑B
Output Interfaces 1 × HDMI, 4 × USB Type‑A, 1 × 3.5 mm Audio
Resolution Support Inputs 1–8: 1080P 60Hz; Input 9: 4K 30Hz; Output: up to 3840×2160 60Hz, plus selectable lower resolutions
Max Cable Length Up to 5 m HDMI cable for both input and output (use extenders for longer runs)
Control Interfaces RJ‑45, RS‑232
Control Methods Mouse, keyboard hotkeys, remote, RS‑232, panel buttons, web interface
Power Supply AC 110‑240 V 50/60 Hz
Max Power Consumption 20 W
Dimensions (W×D×H) 444 × 242 × 44 mm

Notes

  • Ensure USB and HDMI cables are correctly numbered to match their inputs for proper KVM operation.
  • Use manufacturer-certified 4K HDMI cables for optimal image quality and stability.
  • Use manufacturer-certified USB cables to avoid connection issues.
  • Use only the original certified power adapter to ensure stable power and prevent damage.
  • Avoid using non‑certified switches, splitters, or adapters to maintain signal stability and compatibility.
  • Some industrial PCs may be incompatible—verify compatibility before integration.

Package Contents

  • 1 × CQ9000 main unit
  • 1 × Power cable
  • 9 × USB cables
  • 1 × User manual
