4K60 Dual-Interface HDBaseT KVM Wallplate Extender
HDMI + USB-C Input | 100m 4K60 HBT Mode | 150m Long-Reach Mode | POC | USB 2.0 | IR/RS-232
CW1000K-W
Products / HDBaseT Extender / Wall-plate / Conference AV
Key Features
HDMI + USB-C 2×1 Input
Wall-plate transmitter accepts one HDMI source and one USB-C source, with front-panel source selection for flexible BYOD presentation environments.
4K60 4:4:4 Video Quality
Supports video resolutions up to 4K2K@60Hz 4:4:4 with HDMI 2.0b, HDCP 2.2/1.x, and full-format HD audio for professional AV installations.
100m / 150m HDBaseT Extension
Standard HBT mode extends 4K60, 4K30, and 1080P up to 100m. LRM mode extends 4K30 and 1080P signals up to 150m over CAT6 cable.
Bidirectional POC Power
Either transmitter or receiver can power the other unit through the CAT6 cable when POC is enabled, simplifying wiring and reducing installation points.
IR / RS-232 Control Pass-through
Bidirectional IR and RS-232 transmission enables source-side and display-side control integration with AMX, Crestron, or custom control systems.
Audio Embedding + USB 2.0
Supports analog audio embedding via 3.5mm input and USB 2.0 extension through two receiver-side USB Type-A ports for keyboards, mice, and USB devices.
Why Choose CW1000K-W?
▸ Clean Wall-plate Integration
The 86mm×86mm wall-box transmitter provides a neat architectural installation for conference rooms, lecture halls, and front-of-room presentation walls.
▸ USB-C Presentation Ready
USB-C input supports video up to 4K60 and USB 2.0 data, making it suitable for modern laptops and BYOD collaboration systems.
▸ Intelligent EDID Management
Four EDID DIP switch presets include copy RX display EDID, 4K30, 1080p60, and 1200p60 modes to improve compatibility across different displays.
▸ Flexible Audio Routing
AUDIO DIP switch selects either HDMI de-embedded audio or analog L/R input, supporting external audio injection into the HDBaseT stream.
▸ Professional Receiver I/O
The compact receiver provides HDMI output, analog audio output, dual USB 2.0 ports, RS-232, IR input/output, service port, and HDBaseT input.
▸ Built for Commercial AV
ESD protection, metal receiver enclosure, 24V locking power supply, and point-to-point CAT6 operation make the system reliable for B2B deployments.
Detailed Specifications

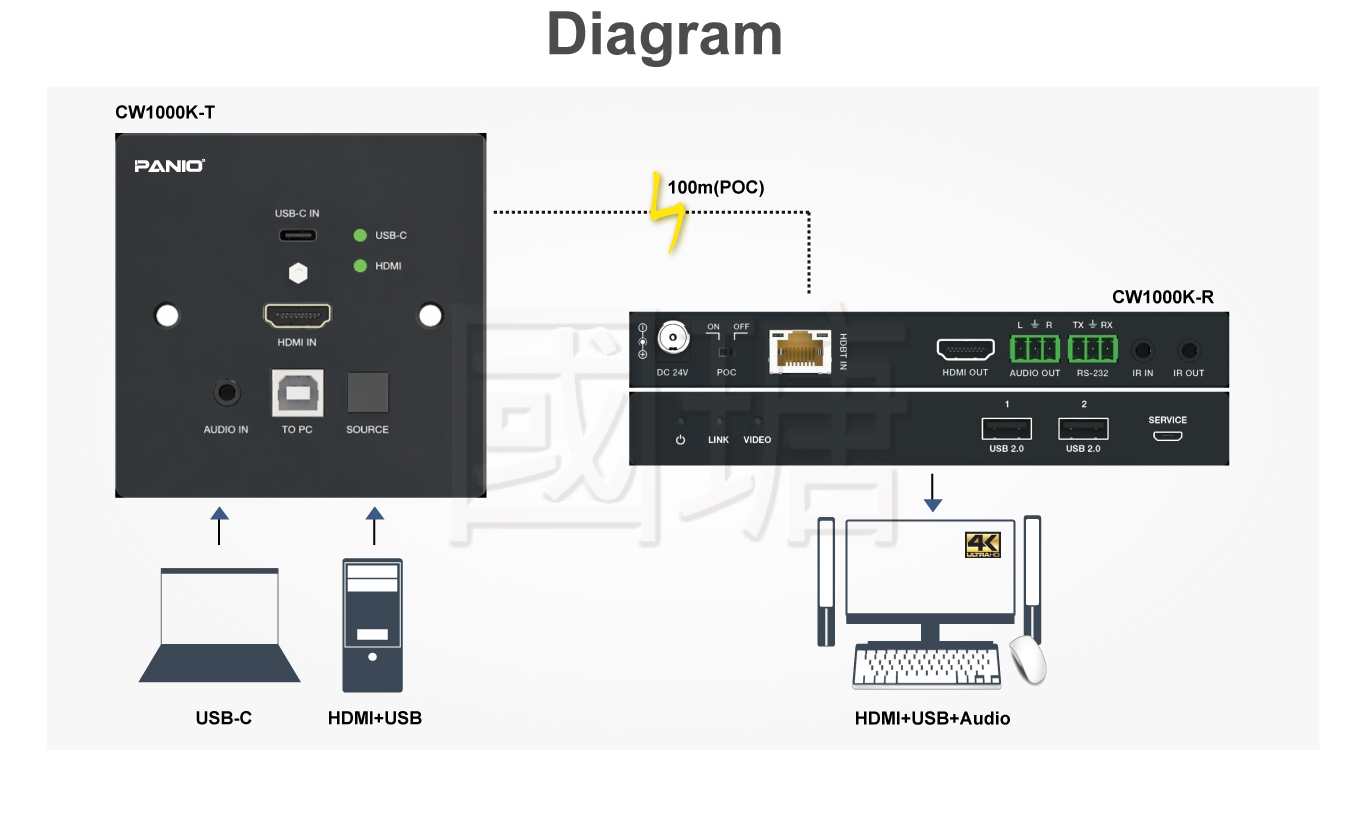

- Professional 4K60 HDMI/USB-C 2×1 HDBaseT wall-plate extender system consisting of a wall-plate transmitter and HDBT receiver.
- Transmitter inputs: 1× HDMI IN, 1× USB-C IN, 1× 3.5mm stereo AUDIO IN, and 1× USB Type-B TO PC host connection.
- Receiver outputs: 1× HDMI OUT, 1× analog AUDIO OUT, and 2× USB 2.0 Type-A device ports.
- Supports HDMI 2.0b, HDCP 2.2/1.x, DisplayPort 1.2a compliance, and video resolution up to 4K2K@60Hz 4:4:4.
- Video bandwidth: HDMI input up to 18Gbps; USB-C input up to 5.4Gbps.
- Audio formats include LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio at 48KHz.
- HBT mode: up to 328ft / 100m for 4K60, 4K30, and 1080P over a single CAT6 cable.
- LRM mode: up to 492ft / 150m for 4K30 and 1080P over a single CAT6 cable.
- Bidirectional 24V POC allows either TX or RX to power the complete system when both POC switches are enabled.
- Bidirectional IR pass-through and RS-232 pass-through support professional control system integration.
- Built-in MODE, EDID, AUDIO, and POC DIP/switch controls simplify on-site configuration.
- EDID presets: Copy RX display EDID, 4K30 4:4:4, 1080p60 4:4:4, and 1200p60 4:4:4.
- ESD protection rated at ±8kV air-gap discharge and ±4kV contact discharge.
Ideal Applications
CW1000K-W is designed for professional AV environments requiring clean wall-plate input, long-distance display extension, USB peripheral sharing, and centralized control.
Conference Rooms
Clean front-wall HDMI/USB-C input for laptops with long-distance transmission to displays or projectors.
Lecture Halls
Reliable 4K presentation extension from podium or wall plate to projector, display, or AV rack equipment.
Corporate Training Rooms
Supports BYOD training and presentation spaces with HDMI, USB-C, USB 2.0, and audio integration.
Hotel Meeting Spaces
Wall-plate installation keeps cabling hidden while supporting flexible source connection for guest presenters.
Commercial Displays
Extends high-resolution content to signage, lobby screens, and digital information displays over CAT6.
AV Control Systems
IR and RS-232 pass-through enable integrated control of displays, source devices, and room automation systems.
Technical Specifications
| Specification | CW1000K-W |
|---|---|
| Model | CW1000K-W |
| Product Category | 4K60 HDMI/USB-C 2×1 HDBaseT Wall-plate Extender System |
| System Composition | 86mm×86mm wall-plate transmitter (TX) + HDBT receiver (RX) |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | HDMI: 18Gbps; USB-C: 5.4Gbps |
| Maximum Resolution | 4K2K@60Hz (4:4:4); compatible with 4K30, 1080P, and lower resolutions |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8-bit / 10-bit / 12-bit |
| Audio Formats | LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio (Full Format), 48KHz |
| Transmission — HBT Mode | Up to 328ft / 100m for 4K60 / 4K30 / 1080P over CAT6 |
| Transmission — LRM Mode | Up to 492ft / 150m for 4K30 / 1080P over CAT6 |
| TX Input Interfaces | 1× HDMI IN, 1× USB-C IN, 1× AUDIO IN (3.5mm Stereo) |
| TX Output Interface | 1× HDBaseT OUT (RJ45) |
| TX Control Interfaces | 1× TO PC (USB Type-B), 1× RS-232, 1× IR IN, 1× IR OUT |
| RX Input Interface | 1× HDBT IN (RJ45) |
| RX Output Interfaces | 1× HDMI OUT, 1× AUDIO OUT (3-pin Phoenix) |
| RX Control Interfaces | 2× USB 2.0 Type-A, 1× RS-232, 1× IR IN, 1× IR OUT, 1× SERVICE Micro USB |
| EDID Management | DIP switch presets: Copy RX EDID, 4K30 4:4:4, 1080p60 4:4:4, 1200p60 4:4:4 |
| Audio Source Selection | HDMI de-embedded audio or analog AUDIO IN, selectable by AUDIO DIP switch |
| Power over Cable | Bidirectional 24V POC; either TX or RX can power the other when POC is enabled |
| Power Supply | 24V / 1A locking power supply |
| Maximum Power Consumption | 12.48W |
| Transmitter Dimensions | 86mm (W) × 86mm (D) × 38.5mm (H) |
| Receiver Dimensions | 157.2mm (W) × 88mm (D) × 20mm (H) |
| Transmitter Weight | 234g |
| Receiver Weight | 377g |
| Housing | Transmitter: white front panel / black rear case; Receiver: metal enclosure |
| ESD Protection | ±8kV air-gap discharge / ±4kV contact discharge |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20-90% RH (non-condensing) |
⚠ Deployment Notes
- Use CAT6 or higher shielded twisted-pair (STP) cable with T568B wiring standard for stable HDBaseT transmission.
- Use direct point-to-point cable runs only. Do not route the HDBaseT signal through network switches or patch panels.
- Maximum cable length is 100m in HBT mode for 4K60, or 150m in LRM mode for 4K30/1080P.
- Avoid routing CAT6 cables near high-voltage power lines, motors, transformers, or other electromagnetic interference sources.
- Power off the device before connecting or disconnecting HDMI, network, power, or control cables.
- When using POC, ensure TX and RX POC switches are set to the same state before powering the system.
- For firmware service port use, follow authorized service instructions only.
📦 Package Contents
- 4K60 HDMI/USB-C 2×1 HDBT Wall-plate Transmitter (CW1000K-W TX) × 1
- HDBT Receiver (CW1000K-W RX) × 1
- 2-pin 3.81mm Phoenix Connector (male) × 2
- 3-pin 3.81mm Phoenix Connector (male) × 4
- Wideband IR Receiver Cable (1.5m) × 1
- IR Blaster Cable (1.5m) × 1
- Mounting Ears × 2
- Machine Screws M3×4 × 4
- 24V/1A Locking Power Supply × 1
- User Manual × 1
