CW1500K


4K Wall Plate KVM Extender

Support POC/ Audio/ MIC/ IR


Products / KVM Extender

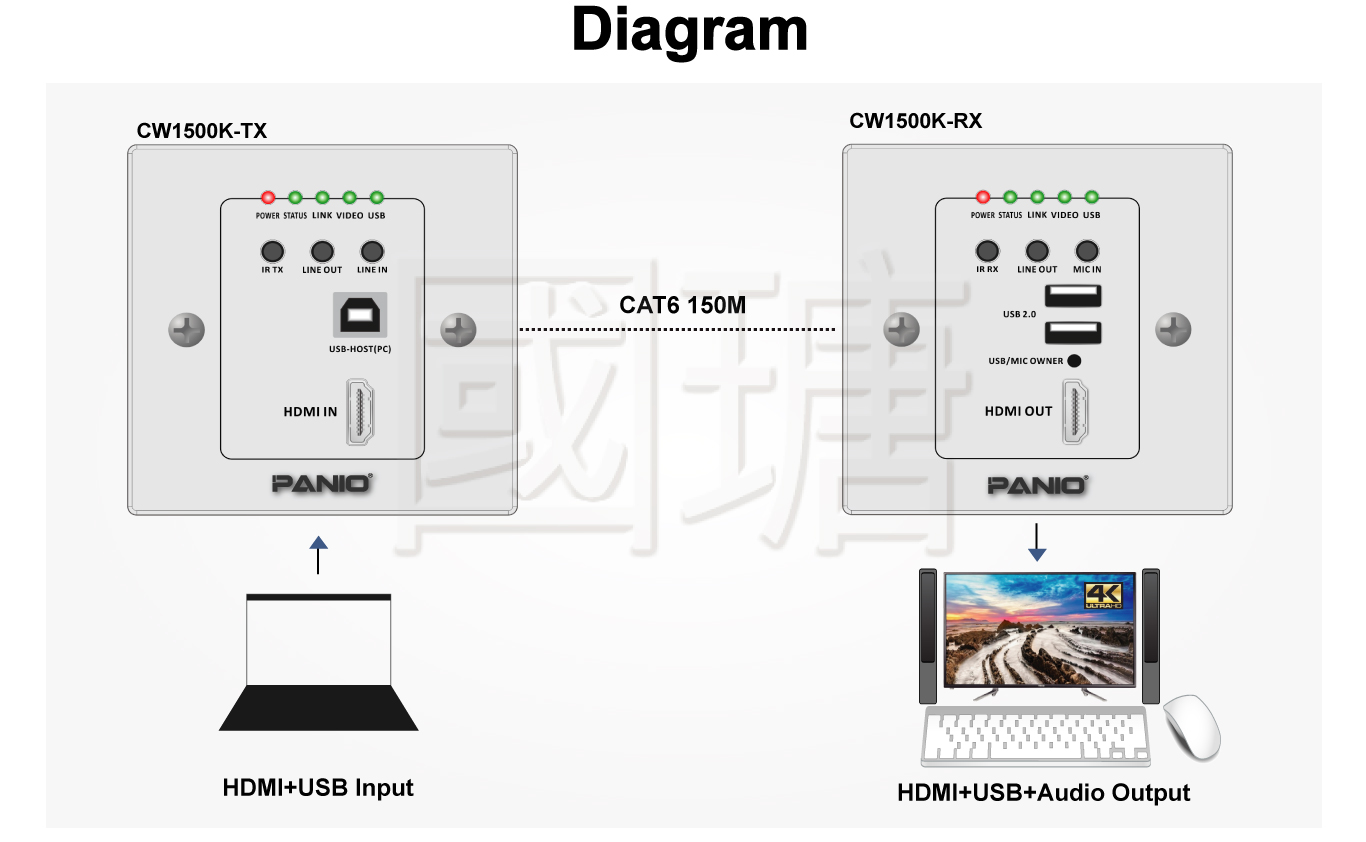

Network cable transmission signal

Using Cat5e/Cat6 cables, the transmission distance is 150m at 4K 30Hz resolution.

POC-function

Only need to supply power to transmitter or receiver, then it can supply power to the other end.

Support USB2.0 peripheral devices

The receiving end can be connected with USB keyboard/mouse, USB peripherals and touch screen, etc.

External audio input

Embeds audio into the HDMI signal.

Sound separation output

Remote output 3.5mm audio, can be connected to external speakers.

Support IR transmission

The remote control attached to the signal source can be operated at the remote receiving end.

4K HDMI KVM Extender with UK US Wall Plate| TAIWAN PANIO
Feature
  • Support 1080P 3D/ 4K 30Hz resolution.
  • HDMI+USB2.0+Audio+IR signal is extended by 150 meters through the network cable.
  • Support USB2.0 peripheral devices and touch screen.
  • Support audio input and output functions, and can be connected to speakers and microphones.
  • The receiver can operate the remote control attached to the source.
  • Only need to supply power to transmitter or receiver, then it can supply power to the other end.
  • Support HDMI1.4b/ HDCP1.4.
  • Hardware design, plug and play, without installing additional software.

Specification

Model Name CW1500K
Transmitter 1 x HDMI input, 1 x Type-B USB2.0, 3 x 3.5mm, 1 x RJ45 output
Receiver 1 x HDMI output，2 x Type-A USB2.0, 3 x 3.5mm，1 x RJ-45 input
Video resolution 4K 30Hz, 1080P 60Hz
Transmission distance Up to 150 meters under 4K 30Hz.
HDMI Cable length It can be connected to a 28AWG HDMI2.0 cable up to 5 meters long. If it is beyond this length that recommends using extender.
Power Supply DC 12V 1.5A power input at the transmitter or receiver (POC unilateral power supply)
Dimensions 88 × 88 × 38mm/ 114 × 70 × 38mm (LxWxH)
Item Weight 300g

Note:

  • Please use 4K 60Hz cable to connect HDMI signal.
  • To keep the quality stable, please use the original power adapter.

Package Contents

  • 1 X CW1500K-T
  • 1 X CW1500K-R
  • 1 X 12V 1.5A
  • 1 X User manual
