DF01


4K 60Hz DP Fiber Extender

DisplayPort 1.4 • 18Gbps Bandwidth • Multi-Mode up to 300m • Single-Mode up to 10 km


Products / Extender

Ultra-long Distance Fiber Transmission

This extender supports single-mode fiber up to 10 km and multi-mode OM4 fiber up to 300m, providing powerful anti-interference capabilities for lossless, long-distance audio and video signal transmission.

4K Ultra HD Resolution

Supports resolutions up to 4K2K@50/60Hz RGB 4:4:4 and is fully compatible with all VESA standard resolutions like 1080P and 2K, ensuring the original video quality is maintained without compression or distortion.

Full HDR and Audio Support

Compatible with a wide range of HDR formats, including HDR10, HDR10+, Dolby Vision, and HLG. It also supports lossless multi-channel audio formats like LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio.

Plug-and-Play Design

Compliant with DP 1.4 and HDCP 2.2 standards with 18Gbps video bandwidth, ensuring broad compatibility with mainstream computers, displays, and players. No additional drivers required.

Compact and Durable Build

Features a compact metal casing, making it easy to install and highly resistant to drops and electromagnetic interference. Designed for reliable, long-term use in various environments.

4K 60Hz DP Fiber Extender
Feature
  • Extends DP 1.4 signals over fiber with up to 18Gbps bandwidth.
  • Supports resolutions up to 4K2K@60Hz (4:4:4).
  • Compatible with single-mode fiber up to 10 km and multi-mode OM4 fiber up to 300 m.
  • Supports a wide range of HDR formats and lossless audio, including Dolby Atmos.
  • Built-in ESD protection with IEC 61000-4-2 standard.
  • Robust metal casing for enhanced durability and EMI/RFI resistance.
  • Compact and lightweight design (81mm x 49mm x 25mm, 138g).

Specification

Model Name DF01
Compliance DP 1.4, HDCP 2.2
Video Bandwidth 18 Gbps
Supported Resolutions Up to 4K2K@60Hz (4:4:4)
Audio Formats LPCM 7.1CH, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Fiber Type & Distance Single-mode: up to 10 km; Multi-mode OM4: up to 300 m

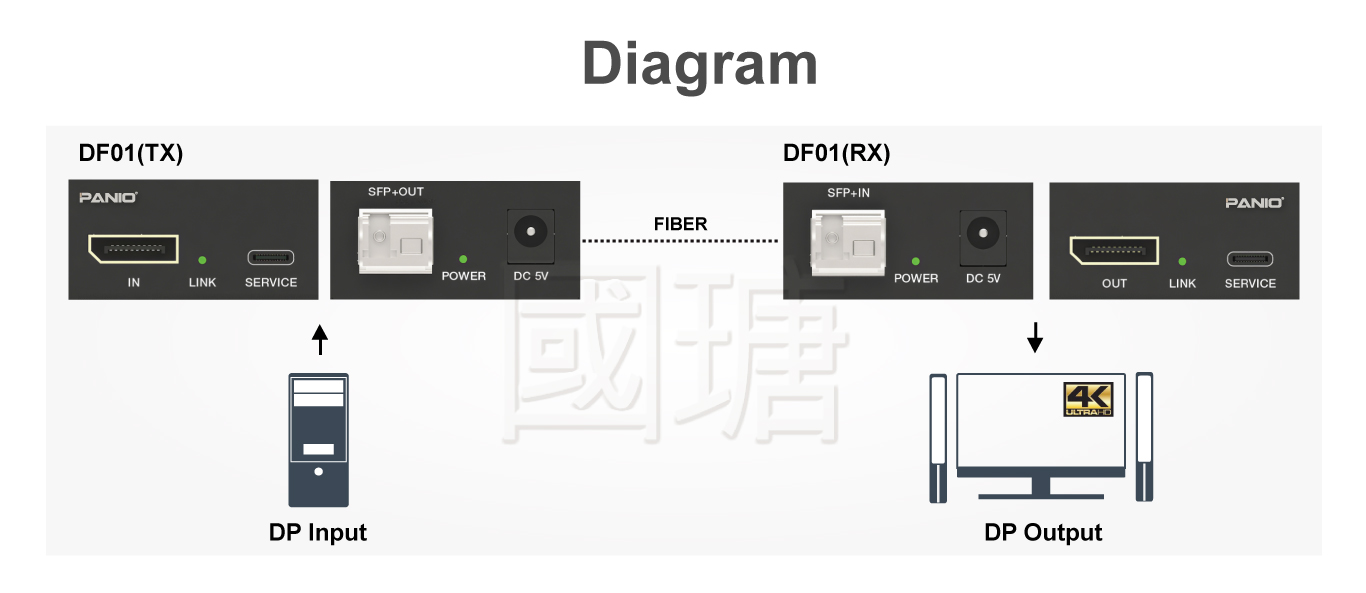

Connectors Tx: 1 × DP IN, 1 × SFP+ OUT; Rx: 1 × DP OUT, 1 × SFP+ IN
Power Supply 2 × 5V/1A DC power adapters (included)
Dimensions 81mm (W) × 49mm (D) × 25mm (H) per unit
Weight 138g per unit
Environmental Operating: 0–40 °C; Storage: −20–60 °C; Humidity: 20–90% RH (non-condensing)
Safety Protection ESD electrostatic protection (IEC 61000‑4‑2: ±8kV air/±4kV contact)

Note:

  • Use a surge protector to safeguard sensitive electronic components from power surges and lightning strikes, extending product lifespan.
  • To prevent black screens or flickering issues, ensure the total cable length between input and output does not exceed 5 meters.
  • When connecting with other devices, always verify compatibility to avoid operational issues. Contact us anytime for assistance.
  • Avoid excessive pulling or bending of fiber optic cables to prevent core damage and signal loss. Though the metal housing is durable, avoid strong impacts.
  • Ensure all source devices (e.g., PC), DP cables, extenders, and displays support DP 1.4 standard to achieve 4K@60Hz 4:4:4 resolution.

Package Contents

  • 1 × DF01 Transmitter
  • 1 × DF01 Receiver
  • 2 × 5V/1A Power Adapters
  • 1 × Quick start guide
