GMS06


4K Multi-Interface Modular Matrix Switcher with Extension

Supports Matrix Cross-Switching for Up to 32 Ports


Products / Matrix Switcher+ AV Extender

Multi-Interface Input Mixing

Supports flexible combinations of VGA+3.5mm, HDMI, DVI, and 3G-SDI inputs. Single system compatibility for diverse signal sources meets complex requirements in multimedia exhibitions, control centers, etc.

EDID Smart Image Optimization

Fully automatic EDID detection ensures optimal aspect ratio/resolution for distortion-free display on all connected devices.

Centralized Control Management

Dual built-in RS-232 (optional TCP/IP module) enables integrated control system integration for unified AV device management in conference rooms, exhibition halls, etc.

Modular Architecture

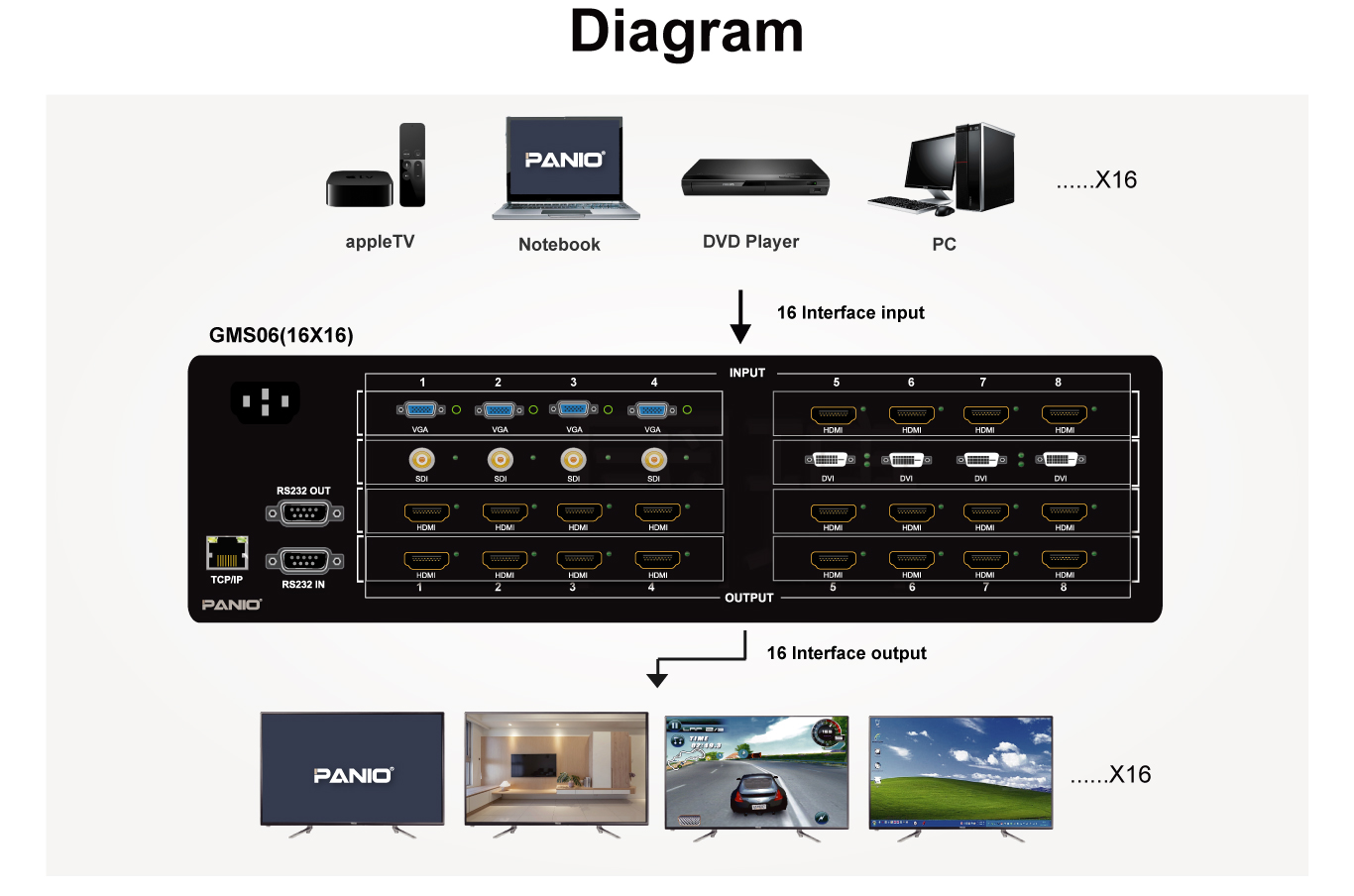

Customizable configurations up to 32 ports (e.g., 20x32/32x12/16x16 matrices) allow flexible port assignments. Breaks traditional fixed-port limitations for scalable hybrid applications.

Scene Memory Shortcuts

16 configurable scene presets enable instant recall for enhanced operational efficiency.

4K Multi-Interface Modular Matrix Switching and Extension Integrated Machine
Feature
  • Supports up to 32×32 port matrix switching, selectable 4/8/12/16/20/24/28/32 port signal input and output, flexible and expandable audio and video interfaces.
  • Both input and output resolutions can reach 4K 30Hz, ensuring stable and clear image transmission.
  • Combines matrix switching and HDBaseT extension technology, effectively extending transmission distance, breaking through distance limitations.
  • Modular card design, adopts a single card 4-channel design (e.g., 24-channel input × 16-channel output), requires 6 input cards and 4 output cards, providing a variety of expansion solutions.
  • Rich and diverse interface support: Input supports VGA+3.5mm, HDMI, DVI, and 3G-SDI interfaces, output provides VGA+3.5mm, HDMI, perfectly integrating various audio and video devices.
  • Comes with control software, offering remote control, button switching, TCP/IP, and dual RS-232 centralized control for easy operation.
  • Automatically saves current scene settings during power failure, and automatically restores memory upon startup, ensuring system setting safety.
  • Interface bandwidth reaches 3.4Gbps, total bandwidth can reach 10.2Gbps, ensuring high-speed and stable signal transmission.
  • Perfectly supports 19-inch rack installation, suitable for various professional audio and video environments.
TAIWAN PANIO 4K

Specification

Model Name GMS06
Input Interface Each card provides 4 ports of input, selectable HDMI, DVI, VGA, 3G-SDI, and HDBaseT extension interfaces.
Output Interface Each card provides 4 ports of output, HDMI/ VGA+3.5mm audio output and HDBaseT extension interface.
Extension Signal Each card provides 4 ports of HDBaseT input or output, selectable 70m or 100m transmission distance. Input cards require a transmitter extension unit, output cards require a receiver extension unit.
Supported Resolution Input/Output supports up to 3840x2160 30Hz, downward compatible.
Bandwidth 10.2Gbps
Status Display Panel LED indicators
Control Methods Remote control, button operation, dual RS-232, TCP/IP
Protocol Standards Supports HDMI 1.4, HDCP, EDID management
HDMI Cable Length Input and output can each connect up to 5m HDMI cables, exceeding this length is recommended to use PANIO extenders to extend distance.
Power Consumption 2U: 25W(max)/ 3U: 40W(max)/ 6U: 75W(max)
Power Supply AC 100~240V 50~60Hz
Dimensions - 2U: 445 x 309 x 88 mm
- 3U: 483 x 309 x 133 mm
- 6U: 486 x 400 x 266 mm
- Other sizes can be customized
Weight - 2U: 4.9 kg
- 3U: 6.75 kg
- 6U: 13.8 kg

Note:

  • Please purchase HDMI-certified cables to ensure stable signal transmission quality.
  • It is not recommended to daisy-chain unauthenticated switches, distributors, or converters, as this may affect signal quality or cause compatibility issues.
  • To maintain stable operation of the equipment, please use power cables provided or certified by the manufacturer.
  • If you need to use this product in conjunction with other equipment, please inform us in advance to avoid possible compatibility issues.
  • For shipping safety, the remote control is shipped without batteries, please prepare them yourself.

Package Contents

  • 1 × GMS06 Matrix Switcher System
  • 1 × Power Cord
  • 1 × Remote Control (battery not included)
  • 1 X User manual
