HD1400K


4K 60Hz HDMI 1 in 4+1 out Distribution extender

Support audio separation output, POC, RS232


Products / 4K 60Hz Extender

4K 60Hz Resolution

Supports 3840×2160 60Hz resolution with YUV4:4:4 color format, 18Gbps bandwidth, HDR10+, HLG, and Dolby Vision compatibility.

Signal Extension & Synchronous Distribution

Enables easy DIY setup for extending and synchronously distributing 4K 60Hz signals, offering cost-effective and plug-and-play operation.

Audio Separation Output

Both local and remote ends support independent audio output to external speakers for flexible sound distribution.

Remote Display Transmission

Transmits up to 150 meters at 1080P 60Hz and 120 meters at 4K 60Hz for long-range signal delivery.

Network Cable Transmission

Utilizes HDBaseT technology with standard network cables for reliable transmission of audio/video signals and remote video distribution.

POC (Power over Cable) Supply

Supports single-side power input, with the remote receiver powered directly by the transmitter via POC technology.

4K 60Hz HDMI 1x4+1 Distribution Extender |Taiwan PANIO
Feature
  • Transmits 4K 60Hz HDMI, audio, IR, and RS-232 signals to remote displays via standard network cables.
  • Supports 4K @60Hz resolution with YUV4:4:4 color format, 18Gbps bandwidth, HDR10+, HLG, and Dolby Vision compatibility.
  • Utilizes HDBaseT technology for remote transmission of 4K audio/video signals over Cat5e/Cat6 network cables.

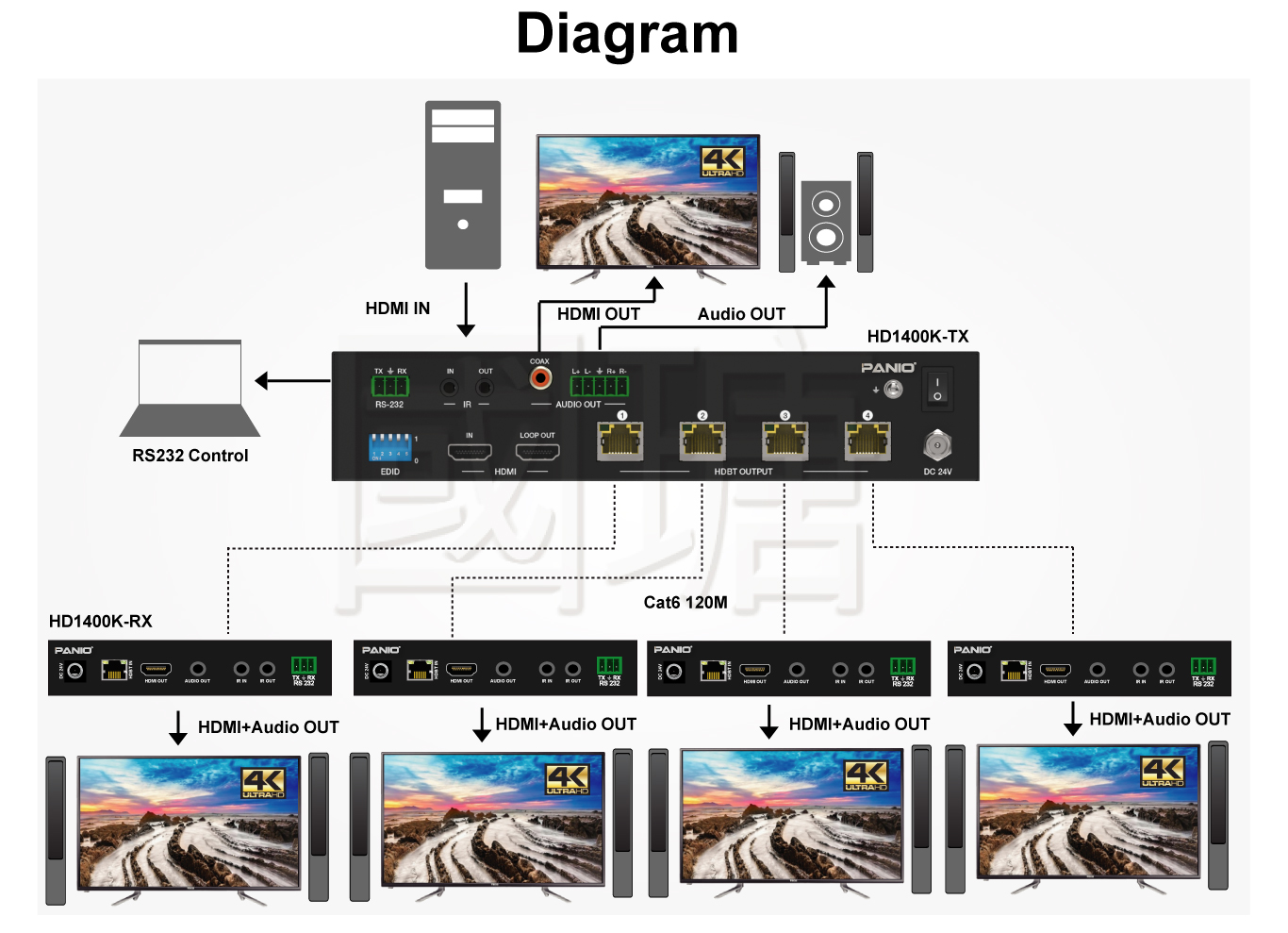

  • Features 1-in-5 output configuration: 1x HDMI local output + 4x HDBT ports for remote synchronous signal distribution.
  • Supports HDMI 2.0 and HDCP 2.2/1.4 standards for universal compatibility.
  • Long-distance signal transmission requires pairing with a compatible receiver unit.
  • Achieves up to 150m transmission at 1080P 60Hz and 120m at 4K 60Hz for extended signal reach.
  • Enables digital/analog audio de-embedding for independent sound output to external systems.
  • Supports high-definition audio formats up to 7.1CH for immersive sound experiences.
  • Features wide-band bidirectional IR routing for remote control signal transmission.
  • Includes EDID (Extended Display Identification Data) functionality for automatic display configuration.
  • Supports POC (Power over Cable) single-side power supply: receiver is powered directly by the transmitter.
  • Compatible with 19-inch rack-mount installation for professional AV setups.
  • Hardware-based design requiring no additional software for plug-and-play operation.

Specification

Model Name HD1400K
Input port 1 x HDMI input, 1 x HDMI output, 1 x Coaxial (RCA) output, 1 x L/R Audio output, 2 x IR, 1 x RS-232, 4 x HDBT (RJ45) output
Output port 1 x HDMI output, 1 x 3.5mm output, 2 x IR, 1 x RS-232, 1 x HDBT (RJ45) input
Transmission distance 150 meters at 1080P @60Hz, 120 meters at 4K @60Hz
Support resolution (Max) 4K @60Hz, YUV4:4:4
HDMI audio format LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Coaxial audio format PCM2.0
L/R audio format PCM2.0CH
Protocol standard Support HDMI2.0, HDCP2.2 / 1.4
Bandwidth 18Gbps
ESD protection Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Cable length Input and output can be connected to a maximum of 5 meters HDMI2.0 cable
Power supply DC 24V / 2.7A (the receiver is powered by the transmitter).
Dimensions Transmitter 220 × 130 × 40mm / Receiver 140 × 65 × 18mm (LxWxH)
Item Weight Transmitter 853g / Receiver 246g

Note:

  • Use only certified HDMI 2.0 cables for signal connection to ensure compatibility and optimal performance.
  • Do not daisy-chain uncertified switches, splitters, or converters without factory certification to prevent signal degradation.
  • To maintain stable performance, use the original certified power adapter provided by the manufacturer.
  • For integration with third-party devices, contact our technical support team in advance to avoid compatibility issues.
  • Use Cat6-grade network cables (8-core, full wiring) to meet 4K signal transmission requirements.
  • Incompatible with network switches; direct point-to-point connection between transmitter and receiver is required.

Package Contents

  • 1 X HD1400K-T transmitter
  • 4 X HD1400K-R receiver
  • 1 X 24V/2.7A adapter
  • 10 X IR cables
  • 5 X 3-pin Phoenix RS-232 cable
  • 1 X 5-pin Phoenix audio cable
  • 1 X rack accessories
  • 1 X manual
