1x9 Output 4K60Hz HDMI AV Distribution & Extender System

18Gbps • 4K@60Hz 4:4:4 • 60m Single Cable Transmission • Unidirectional POC Power Supply

HD1410K

Products / HDMI Extenders / Distribution Extender Systems

9-Way Synchronous Display Architecture

HD1410K is designed for medium-scale digital signage and multi-screen applications. Equipped with 1 local HDMI loop-out and 4 remote dual-output receivers, it provides 9 total synchronous display channels.

4K60Hz & HDR Support

Compliant with HDMI 2.0b and HDCP 2.2, supporting up to 4K@60Hz (YUV 4:4:4). Compatible with HDR10, Dolby, and HLG for vibrant color and high contrast reproduction.

Long-Distance Stable Transmission

Transmit 4K@60Hz up to 60m or 4K@30Hz up to 100m over a single CAT6/6a/7 cable. Digital signal balancing technology ensures sharp, low-latency video for long-distance transmission.

Unidirectional POC Power Supply

Supports unidirectional POC (Power over Cable). Power all 4 remote dual-output receivers via network cables by only connecting a 12V power supply to the transmitter, greatly simplifying on-site wiring and installation.

3.5mm Audio Extraction

Built-in 3.5mm analog audio output on both transmitter and receiver to de-embed HDMI audio, enabling seamless connection with amplifiers, commercial audio systems and external speakers.

EDID Management & IR Extension

Adjustable EDID settings resolve display resolution compatibility issues, while unidirectional IR extension allows control from the remote display end.

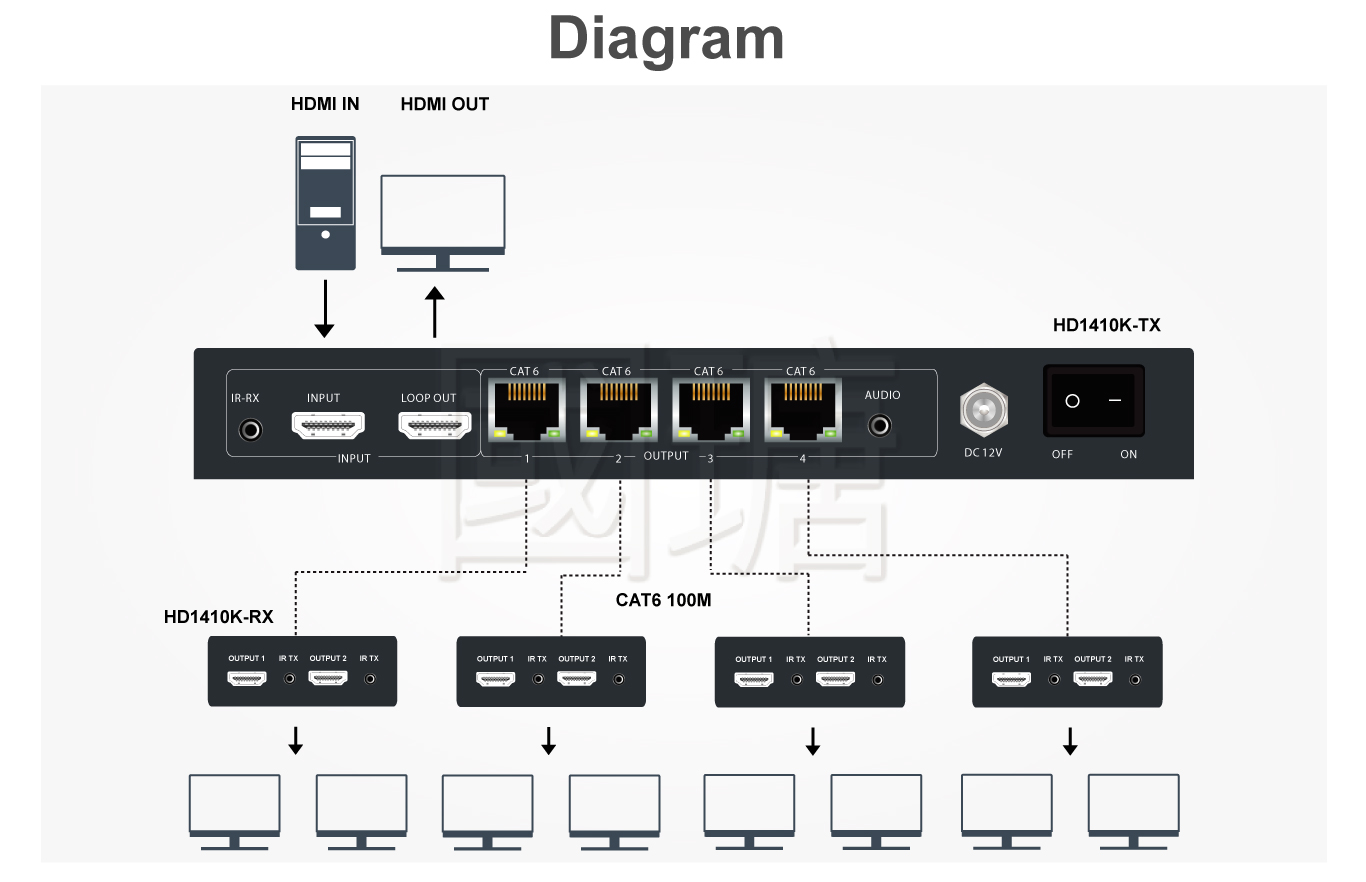

HD1410K 1x9 Output Distribution Extender Transmitter
System Advantages
  • Full Digital 9-Way Synchronization: 1 local monitoring loop-out + 4 remote dual-output receivers, ideal for retail stores, conference rooms and multi-display scenarios.
  • Long-Distance Transmission: Transmit 4K60Hz up to 60m and 4K30Hz up to 100m over a single network cable.
  • High-Quality Audio Transmission: Supports lossless HD audio formats including LPCM, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD Master Audio.
  • High-Efficiency Heat Dissipation: Metal chassis with professional heat dissipation design, supports 7×24 hours non-stop operation.
  • 3.5mm Audio De-embedding: Independent audio output for flexible integration with commercial audio and broadcasting systems.
  • POC Power Over Cable: Single power supply at the Tx end, reducing remote power adapters and installation cost.

Specification

HD1410K Parameter Details
HDMI Specification HDMI 1.4b / 2.0b (18Gbps), HDCP 1.4 / 2.2 / 2.3
Video Resolution Up to 4K2K@60Hz (4:4:4), Backward Compatible
Transmission Distance 4K60Hz up to 60 meters (CAT6/6a/7 cable), 4K30Hz up to 100 meters (CAT6/6a/7 cable)
Output Channels (Total 9) Tx Local Loop-out × 1 + 4 × Rx (each unit with 2 × HDMI Outputs)
HDR Support HDR10, HDR12, Dolby, HLG
Audio Formats LPCM, Dolby Digital, DTS 5.1, Dolby TrueHD, DTS-HD
EDID Management 4-Pin DIP EDID dialing / Loop-out EDID learning mode
Power Supply 12V/3A DC (Power supply at Tx end, Rx supports POC)
Tx Dimensions w/o ears: 191.5 × 103 × 27 mm; with ears: 219.5 × 103 × 27 mm
Rx Dimensions 93 × 70 × 21.2 mm
Environment Parameters Working Temp: 0°C ~ 50°C / Humidity: 10% ~ 90%

Installation Recommendations

  • It is recommended to use 24AWG shielded pure copper CAT6 or higher grade network cables.
  • Please use shielded RJ45 connectors on both ends of network cables (TIA/EIA-568B sequence).
  • The total length of connected HDMI cables (input + output) shall not exceed 10 meters.
  • Before connection, ensure the EDID dip switches on the transmitter match your display devices.
  • Avoid laying network cables in parallel with high-voltage power cables to prevent signal interference.

Package Contents

  • 1 × HD1410K_Tx Transmitter (Tx)
  • 4 × HD1410K_Rx Dual-Output Receivers (Rx)
  • 1 × 12V/3A Professional Power Adapter
  • 1 × IR Receiver Cable (RX) / 8 × IR Emitter Cables (TX)
  • 1 × Rack Mount Ear Kit
  • 1 × User Manual
