HD1810K


4K HDMI 1-in, 9-out signal distribution and extension all-in-one machine

Support 1 local + 8 remote synchronous display


Products / AV Extender

Dual-function machine

Effortlessly extend and distribute 4K 30Hz signals.

Signal transmission through network cable

4K video distribution over network cables.

Resolution up to 4K 30Hz

Support 3840×2160 30Hz resolution.

Break the distance barrier

Transmit 4K 30Hz signals 100 meters for remote displays.

Reduce signal attenuation

Synchronized distribution and Extension integration, Minimize the need for additional extension devices such as Transmitters, Power adapter, Cables, etc., Avoid signal attenuation and compatibility issues.

Support arbitrary placement/zooming/up and down picture-in-picture images on the screen.
Feature
  • Transmit 4K 30Hz HDMI signal to the remote display over Cat6/7 network cable.

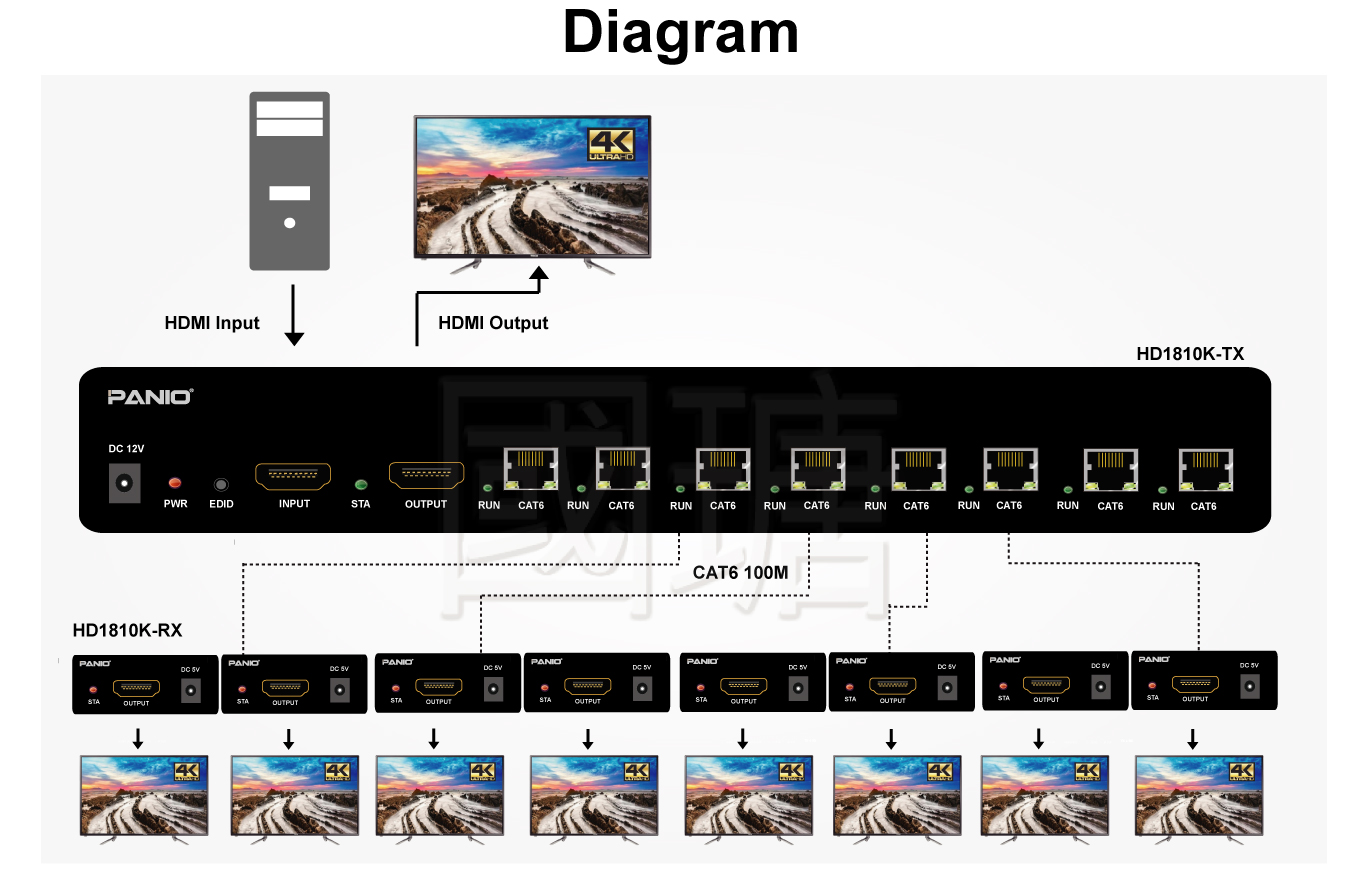

  • Support 1 x HDMI local output and 8 x network port extended to remote sync output, a total of 1 input and 9 outputs
  • Support HDMI 1.4b, HDCP 1.4.
  • Long-distance signal transmission requires a receiver.
  • The transmission distance is up to 100 meters at 4K 30Hz.
  • Resolution up to 3840 x 2160 30Hz.
  • Support EDID reading function.
  • Built-in automatic adjustment system ensures smooth, clear and stable images.
  • Built-in ESD electrostatic protection circuit.
  • 19" rack size
  • Pure hardware design, plug and play, no additional software required.

Specification

Model Name HD1810K
Transmitter Interface 1 x HDMI input, 1 x HDMI output, 8 x RJ-45 outputs
Receiver Interface 1 x HDMI output, 1 x RJ-45 input
Supported Resolution Up to 4K 30Hz
Transmission Distance Up to 100 meters (4K 30Hz)
Cable Type Cat6
Bandwidth 10.2Gbps
ESD Protection Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
HDMI Cable Length: Up to 5 meters (16 feet) for both input and output HDMI 4K cables
Power Supply DC 12V3A (transmitter), DC 5V1A (receiver)
Protocol Standard Support HDMI1.4b, HDCP1.4
Dimensions Transmitter: 400 × 140 × 28mm (LxWxH), Receiver: 79 × 43 × 23mm (LxWxH)
Weight Transmitter: 1350g, Receiver: 110g

Note:

  • Ensure signal integrity with certified 4K HDMI cables.
  • Avoid using unapproved devices like extenders, splitters, distributors, and converters.
  • Maintain consistent quality by employing genuine, factory-certified power adapters.
  • To ensure compatibility, please inform us if you intend to connect the device to other equipment.
  • Utilize Cat6 network cables with all eight cores fully connected.
  • Direct connection to a network switch is prohibited.

Package Contents

  • 1x HD1810K-T Transmitter
  • 8x HD1810K-R Receivers
  • 1x 12V/3A Power Adapter
  • 8x 5V/1A Power Adapters
  • 1x Rackmount Kit
  • 1x User Manual
