HD2710K


4K 60Hz HDBaseT Extension Manager

Supports triple-display sync (2 remote + 1 local), RS-232, IR, and PoC single-side power


Products / 4K 60Hz Extender

HDBaseT Uncompressed Transmission

Audio and video signals are delivered over HDBaseT via network cabling for long-distance transmission without compression—ideal for professional AV applications.

4K 60Hz Resolution

Supports up to 3840 × 2160 at 60Hz for smooth UHD playback.

Bi-Directional IR Remote Control

Supports bi-directional IR signal transmission for flexible control at both ends.

Triple-Display Synchronization

Supports simultaneous playback on two remote 4K 60Hz displays and one local 4K 60Hz display.

Bi-Directional RS-232 Control

Supports bi-directional RS-232 commands to control devices on both the transmitter and receiver sides.

PoC Single-Side Power

Power over Cable (PoC) enables single-side powering—power can be connected to either the transmitter or the receiver.

Audio Breakout Output

Remote-end 3.5 mm audio output supports connection to external speakers or an amplifier.

External Audio Input

Local-end 3.5 mm audio input supports audio embedding—useful for adding external audio to HDMI video output.

Long-Distance Transmission

HD2710K_B: up to 70 m at 1080p; up to 35 m at 4K 30Hz/60Hz.
HD2710K_A: up to 100 m at 1080p; up to 70 m at 4K 30Hz/60Hz.

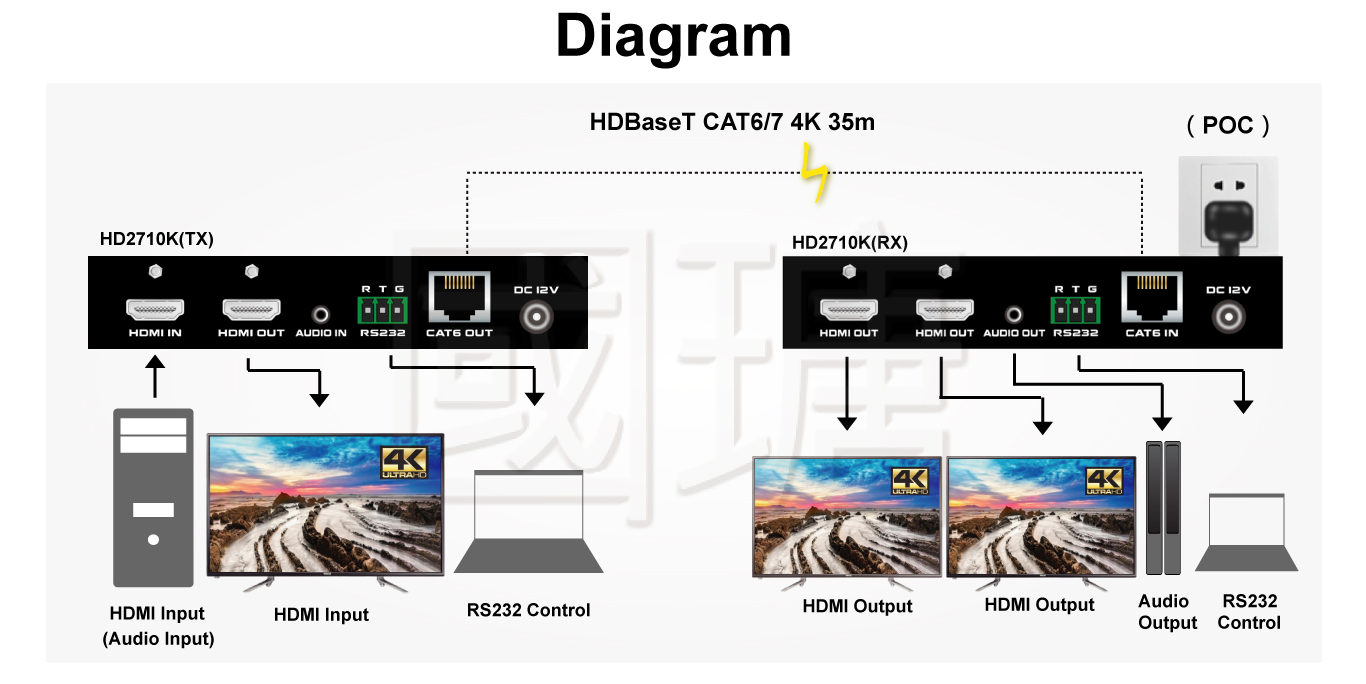

PANIO HD2710K 4K 60Hz HDBaseT Extension Manager with triple-display sync, RS-232, IR, and PoC
Feature
  • Transmits 4K 60Hz HDMI 2.0 + RS-232 + IR + audio to remote displays over network cabling via HDBaseT.
  • Designed for Cat6/Cat7 full 8-core cabling (all 8 conductors connected) for best performance.
  • HDBaseT uncompressed transmission delivers lossless 4K video and audio over long distances.
  • Transmitter: supports 1-port HDMI 2.0 output for local display.
  • Receiver: supports 2-port HDMI 2.0 outputs for synchronized remote display.
  • HD2710K_B: up to 70 m at 1080p; up to 35 m at 4K 30Hz/60Hz.
  • HD2710K_A: up to 100 m at 1080p; up to 70 m at 4K 30Hz/60Hz.
  • Supports HDMI 2.0 and HDCP 2.2.
  • Supports audio embedding input and independent audio breakout output.
  • Stable power delivery with a locking DC power connector design.
  • Supports bi-directional RS-232 and bi-directional IR transmission.
  • EDID management helps prevent common issues such as flicker, blank screens, or display handshake problems.
  • Supports PoC (Power over Cable) single-side power supply.
  • Pure hardware design: plug-and-play with no additional software required.

Specification

Model Name HD2710K
Transmitter Ports 1 × HDMI 2.0 input, 1 × HDMI 2.0 output, 1 × IR input, 1 × IR output, 1 × RJ45 output, 1 × 3.5 mm audio input, 1 × Phoenix RS-232
Receiver Ports 2 × HDMI 2.0 outputs, 1 × IR input, 1 × IR output, 1 × RJ45 input, 1 × 3.5 mm audio output, 1 × Phoenix RS-232
Video Resolutions 480i, 576i, 480p, 576p, 720p, 1080i, 1920×1080p 60Hz, 3840×2160 30Hz, 3840×2160 60Hz, 4096×2160 24Hz
Standards HDMI 2.0, HDCP 2.2
Transmission Distance HD2710K_B: 70 m at 1080p 60Hz; 35 m at 4K 60Hz
HD2710K_A: 100 m at 1080p 60Hz; 70 m at 4K 60Hz
EDID Manual EDID resolution selection supported
Color Space 1080p: 36-bit Deep Color; 4K: 24-bit True Color; 4:4:4
Bandwidth 10 Gbps
HDMI Cable Length Input and output can be connected with HDMI cables up to 5 m. For longer lengths, an HDMI extension solution is recommended.
Power Supply DC 12V
Power Consumption 11 W
Dimensions Transmitter 152 × 100 × 27 mm / Receiver 152 × 100 × 27 mm (L × W × H)
Weight Transmitter 200 g / Receiver 200 g

Note:

  • Please use a certified HDMI 2.0 cable for reliable signal transmission.
  • Do not cascade uncertified switchers, splitters, converters, or similar devices.
  • If you plan to use the system with third-party equipment, please inform us in advance to avoid compatibility issues.
  • To maintain stable performance, use the original factory-certified power adapter.
  • Please use Cat6 network cables with all 8 conductors connected (full 8-core).
  • This product is designed for point-to-point extension and must not be connected through a network switch.
  • PoC single-side power: power can be supplied from either the transmitter or the receiver.
  • Total HDMI cable length (input + output) should not exceed 10 m. For longer distances, optical HDMI cables are recommended.

Package Contents

  • 1 × HD2710K-T Transmitter
  • 1 × HD2710K-R Receiver
  • 1 × 12V 1.5A Power Adapter (PoC single-side power supply)
  • 2 × IR Cables
  • 1 × User Manual
