HD2740K


4K 30Hz HDBaseT HDMI Extender

Support RS-232/ Bidirectional IR


Products / HDMI Extender

HDBaseT technology transmission

Audio and video signals are transmitted through advanced HDBaseT network lines, and video can be played over long distances without compression.

4K 30Hz resolution

Support 3840 × 2160 30Hz resolution.

Support infrared remote control

Supports bidirectional transmission of IR signals.

Bidirectional RS-232 control

Supports bidirectional RS-232 command to control remote and near-end controlled devices.

POC power supply

It can be powered by one side, and can be powered by any side.

Long distance display

HD2740K_A: The transmission distance is 100 meters under 1080P, and the transmission distance is 70 meters under 4K 30Hz.
HD2740K_B: The transmission distance is 70 meters under 1080P, and the transmission distance is 35 meters under 4K 30Hz.

4K 30Hz HDBaseT Extender
Feature

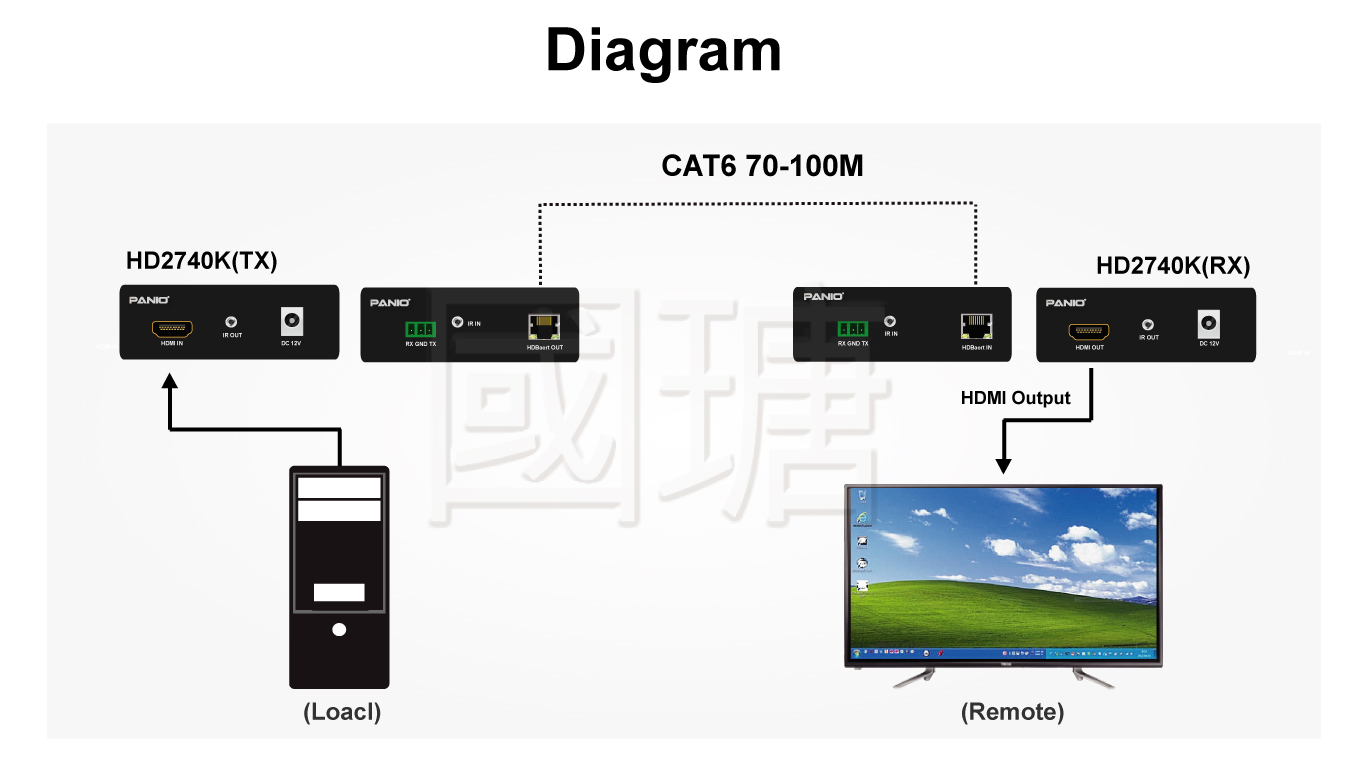

  • Transmit 4K 30Hz HDMI+ RS-232+ IR signal to remote display over HDBaseT.
  • Using HDBaseT uncompressed transmission technology, 4K video and audio signals can be transmitted losslessly over long distances via network cables.
  • HD2740K_A: The transmission distance is 100 meters under 1080P, and the transmission distance is 70 meters under 4K 30Hz.
  • HD2740K_B: The transmission distance is 70 meters under 1080P, and the transmission distance is 35 meters under 4K 30Hz.
  • Support HDMI1.4b and HDCP2.2.
  • Support CEC.
  • Support bi-directional RS-232 and IR signal transmission.
  • Support EDID processing technology to solve annoying problems such as full screen, flickering, and no display on the display side.
  • Support POC unilateral power supply.
  • Pure hardware design, plug, and play, no need to install additional software.
taiwan panio 4k

Specification

Model Name HD2740K
Transmitter port 1 x HDMI input, 1 x IR, 1 x HDBaseT output, 1 x Phoenix RS232
Receiver port 1 x HDMI output, 1 x IR, 1 x HDBaseT input, 1 x Phoenix RS232
Video resolution 480i, 576i, 480p, 576p, 720p, 1080i, 1920x1080p 60Hz, 3840x2160 30Hz
Protocol Standard Support HDMI1.4b, HDCP2.2
Transmission distance HD2740K_A: The transmission distance is 100 meters under 1080P, and the transmission distance is 70 meters under 4K 30Hz.
HD2740K_B: The transmission distance is 70 meters under 1080P, and the transmission distance is 35 meters under 4K 30Hz.
Color Space 1080p: 36Bit Deep Color, 4K: 24Bit True Color, 4:2:2
Cable length Input and output can be connected to a maximum of 5 meters 4K HDMI cable
EDID Support manual EDID resolution selection
Power DC 12V 2A
Dimensions Transmitter 101 × 79.5 × 26mm, Receiver 101 × 79.5 × 26mm ( LxWxH )
Weight Transmitter 250g/ Receiver 250g

Note:

  • Please use 4K cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power adapter.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The output+input HDMI cable cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X HD2740K Transmitter
  • 1 X HD2740K Receiver
  • 1 X DC 12V 2A Adapter (POC single side power supply)
  • 2 X IR cables
  • 2 X Phoenix plug
  • 1 X User manual
