HD4420K


4K 60Hz 4-in 8-out HDMI Matrix Switch + HDBaseT Extender All-in-One

Supports RS232, IR & TCP/IP Control


Products / 4K 60Hz Extenders

2-in-1 Integrated Design

Combines HDMI matrix switching and long-distance HDBaseT signal transmission in one unit. 4x4 matrix switching functionality enables simultaneous 4-channel local and 4-channel remote video playback with synchronized output.

Long-Distance Transmission Performance

Supports 150m transmission at 1080P @60Hz and 120m transmission at 4K @60Hz via Cat6 cable, with lossless uncompressed signal transmission.

HDBaseT Technology Transmission

Transmits uncompressed audio and video signals over standard Cat6 network cables via HDBaseT technology, ensuring ultra-long distance transmission without signal degradation.

Independent Audio Output

Equipped with built-in COAX coaxial and L/R analog audio independent output ports for flexible audio separation and external audio system connection.

4K 60Hz Ultra-HD Resolution

Supports ultra-high resolution up to 3840 × 2160 @60Hz with YUV4:4:4 chroma subsampling, 18Gbps bandwidth, and HDR10+, HLG, Dolby Vision high dynamic range formats.

POC Single-Side Power Supply

Power over Cable (POC) technology enables single-side power supply; the remote receiver requires no additional power source, ideal for complex installation environments with limited power access.

HDMI CEC Functionality

Integrated HDMI Consumer Electronics Control (CEC) allows seamless one-touch control of all connected HDMI devices for simplified operation.

Minimized Signal Attenuation

All-in-one matrix switch and extender design eliminates the need for additional transmission adapters or cables, avoiding signal attenuation and compatibility issues caused by multiple device connections.

4K 60Hz 4-in 8-out HDMI Matrix Switch + HDBaseT Extender All-in-One
Key Features
  • 4 x HDMI 2.0 input ports for ultra-high definition signal sources
  • 4 x HDMI 2.0 local output ports for direct short-distance display connection
  • 4 x RJ-45 HDBaseT ports for long-distance remote output transmission

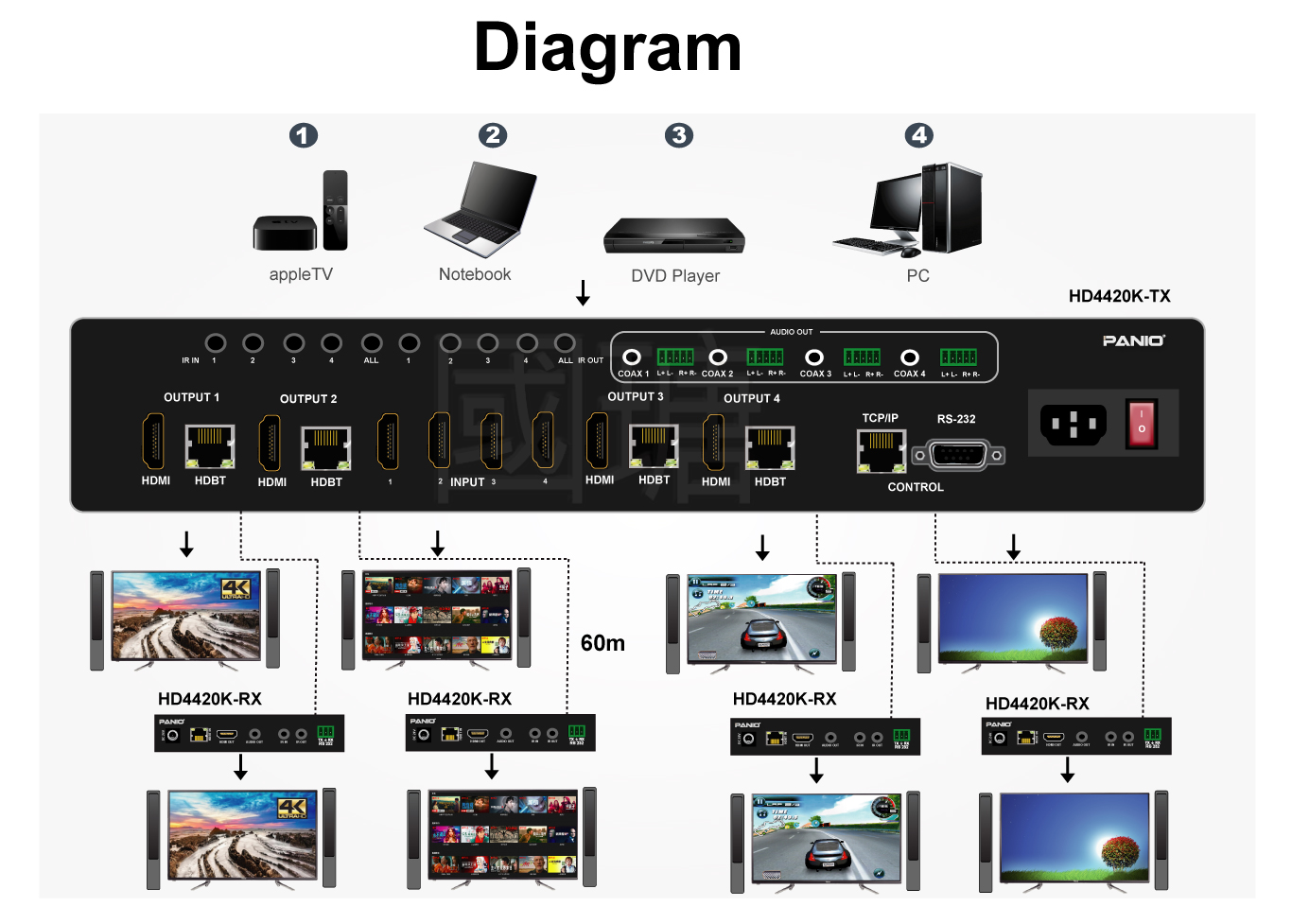

  • Synchronized output: each local HDMI output displays the same content as its corresponding remote HDBaseT extension output
  • Transmits uncompressed 4K audio & video signals to HD4420K-R remote receivers via Cat6 cable for HDMI display
  • HD4420K-R receiver features HDMI, bidirectional IR, RS-232 and 3.5mm audio output ports
  • Supports 4K @60Hz (YUV4:4:4), 18Gbps bandwidth, HDR10+, HLG & Dolby Vision
  • Compliant with HDMI 2.0b and HDCP 2.2 / 1.4 encryption standards
  • 150m transmission distance at 1080P @60Hz via Cat6 cable
  • 120m transmission distance at 4K @60Hz via Cat6 cable
  • 4K to 1080P downscaling on each output, resolving resolution conflicts between 4K and 1080P displays
  • Built-in COAX coaxial + L/R 5-pin Phoenix connector for independent audio output
  • 21 preset EDIDs, 2 user-defined EDID modes and 8 EDID copy modes for perfect signal matching
  • Bidirectional IR remote control for seamless source and display device operation
  • Supports HDR10, HDR10+, Dolby Vision and HLG high dynamic range video formats
  • HDMI CEC for integrated control of all connected HDMI consumer electronics
  • POC (Power over Cable) enables single-side power supply for remote receivers
  • 1U rack-mountable design with high-definition front-panel OLED display for real-time status monitoring
  • Multiple control methods: front-panel buttons, IR remote, RS-232 & Web GUI

Technical Specifications

Specification HD4420K
Input Ports 4 x HDMI 2.0, 4 x IR, 1 x RS-232, 1 x TCP/IP (RJ-45)
Output Ports 4 x HDMI 2.0 (Local), 4 x HDBaseT RJ-45 (to HD4420K-R Receiver), 4 x COAX, 4 x L/R (5-pin Phoenix), 4 x IR
Receiver (HD4420K-R) Interfaces 1 x HDMI 2.0, 1 x HDBaseT RJ-45, 1 x 3.5mm Audio, 1 x IR In, 1 x IR Out, 1 x RS-232 (3-pin Phoenix)
Maximum Video Resolution 4K @60Hz, YUV4:4:4 (18Gbps)
Compliant Standards HDMI 2.0b, HDCP 2.2 / 1.4
Control Interfaces Front-Panel Buttons, IR Remote, RS-232, Web GUI (TCP/IP)
HDMI Cable Length (Input/Output) Max 5m for direct connection; use extenders for longer distances to ensure signal integrity
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS-HD Master Audio, DTS-HD HRA, DTS:X
Coaxial & L/R Audio Formats Coaxial: PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1; L/R: PCM 2.0
HDR Formats HDR10, HDR10+, Dolby Vision, HLG
HDBaseT Transmission Distance (Cat6) 150m @1080P 60Hz | 120m @4K 60Hz (YUV4:4:4)
Audio Decoding Support DTS-HD, Dolby TrueHD, LPCM7.1, Dolby AC3, DTS, DSD
Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth 8/10/12-bit (1080P 60Hz); 8-bit (4K@60Hz YUV4:4:4); 8/10/12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
Maximum Bandwidth 18Gbps (Uncompressed)
ESD Protection Human Body Model: ±8kV (Air-gap Discharge) | ±4kV (Contact Discharge)
Power Supply AC 100~240V, 50/60Hz (Universal Voltage)
Dimensions (L×W×H) Matrix Switcher: 440 × 200 × 44.5mm; Receiver (HD4420K-R): 140 × 65 × 18mm
Net Weight Matrix Switcher: 3.1Kg; Receiver (HD4420K-R): 155g (each)

Important Notes

  • Use only certified HDMI 2.0 cables for all HDMI signal connections.
  • Do not daisy-chain with uncertified switchers, splitters or converters to avoid compatibility issues.
  • Use only the original certified power adapter for stable performance and safety.
  • Inform our technical team if integrating with third-party devices to ensure full compatibility.
  • Use only Cat6 standard network cables (8-pin fully wired) for HDBaseT transmission.
  • HDBaseT RJ-45 ports are not compatible with standard network switches or LAN infrastructure.
  • Remote control batteries are not included due to international shipping safety regulations.

Package Contents

  • 1 × HD4420K Matrix Switcher & Extender Host
  • 4 × HD4420K-R Remote Receivers
  • 1 × Universal AC Power Cord
  • 1 × IR Remote Control (Batteries Not Included)
  • 10 × Rack-Mounting Accessories
  • 1 × Multilingual User Manual (English Included)

Model Comparison Table

Features HD4430K HD4420K
Product Model 4x8 4K HDMI Matrix Switch + Extender Manager 4x(4+4) 4K 60Hz HDMI Matrix Switch + HDBaseT Extender All-in-One
HDMI Inputs 4 Ports 4 Ports (HDMI 2.0b)
Output Configuration 4 Local HDMI + 4 Remote RJ-45 | 8-channel independent switching 4 Local HDMI + 4 Remote HDBaseT RJ-45 | 4-channel synchronized local/remote output
Maximum Video Resolution 4K @30Hz 4K @60Hz (YUV4:4:4, 18Gbps)
Compliant Standards HDMI 1.4b, HDCP 1.4 HDMI 2.0b, HDCP 2.2 / 1.4
Transmission Distance (Cat6) HD4430K_A: 70m | HD4430K_B: 40m 120m @4K 60Hz | 150m @1080P 60Hz
Control Methods Front-Panel Buttons, IR Remote, RS-232, Web GUI Front-Panel Buttons, IR Remote, RS-232, Web GUI (TCP/IP)
Key Features POC Single-Side Power, EDID Management, Lossless Zero-Latency Transmission 4K to 1080P Downscaling, POC Power, 21 Preset EDIDs, OLED Status Display, Lossless Zero-Latency HDBaseT Transmission, HDMI CEC
Power Supply AC 100~240V 50/60Hz AC 100~240V 50/60Hz (Universal Voltage)
Dimensions (L×W×H) Matrix: 445×305×85mm | Receiver: 101×79.5×26mm Matrix: 440×200×44.5mm | Receiver: 140×65×18mm
