8K HDMI over HDBaseT 3.0 Extender with USB2.0

Supports 8K@30Hz/4K@120Hz, HDR10+/Dolby Vision, eARC/ARC, USB2.0 Host/Device, Gigabit Ethernet, IR/RS-232, PoC

HD6300K

Products / HDMI HDBaseT Extenders

8K Ultra HD Video Transmission

Supports uncompressed HDMI 2.1 video up to 8K@30Hz (4:4:4 10bit), 4K@120Hz (4:4:4 10bit), with HDR10, HDR10+, Dolby Vision, and HLG. Includes VRR, FreeSync, and ALLM for tear-free gaming and smooth playback.

Versatile Audio with eARC/ARC

Enables bidirectional audio return via HDMI. Supports Dolby Atmos, Dolby TrueHD, DTS-HD Master Audio, plus analog audio output (3.5mm jack).

USB2.0 & Multi-Interface Expansion

Dual USB2.0 modes with Host/Device switching (350Mbps). Includes Gigabit Ethernet auto-adaptation and RS-232/IR intelligent control for system integration.

Long-Distance Uncompressed Transmission

Transmits up to 90m over CAT6A/7 cable with zero latency. PoC technology powers both TX/RX units via a single end, simplifying wiring.

Intelligent Configuration

Dual DIP switches for EDID and CONFIG, allowing flexible RS-232 and IR settings. Compatible with resolutions from VGA up to 8K.

Robust Industrial Design

Metal housing with anti-static and high-temperature resistance. Plug-and-play with low power consumption (20.4W in PoC mode).

Flexible Transceiver Function

Allows either unit to be configured as Transmitter or Receiver, providing maximum flexibility in deployment and system integration.

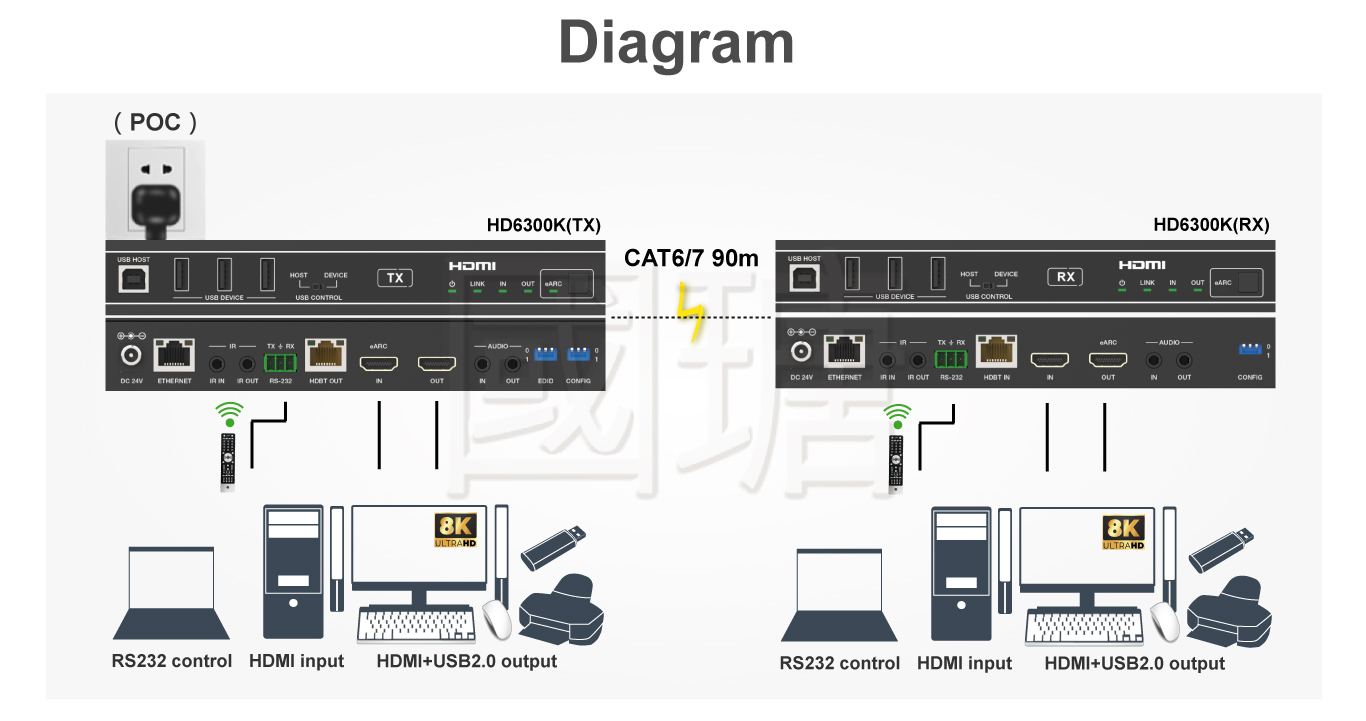

8K HDMI over HDBaseT Extender HD6300

Specifications

Item Detailed Specifications
Model HD6300K HDMI™ 8K 40Gbps HDBaseT 3.0 Extender (90m) with USB/eARC/Ethernet
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth Up to 40Gbps FRL and 18Gbps TMDS
Video Resolution (In/Out) Up to 8K@30Hz (4:4:4, 10bit), 4K@120Hz (4:4:4, 10bit), compatible with VGA–WUXGA and 480i–8K30
Color Space / Depth RGB 4:4:4, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0 / 8/10/12-bit
HDR Support HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats PCM2.0, LPCM5.1, LPCM7.1 (32K/44.1K/48K/88.2K/96K/176.4K/192K, 16/20/24-bit); Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos; DTS Surround, DTS 96/24, DTS-ES, DTS Express, DTS-HD HRA, DTS-HD Master, DTS:X
IR Specifications 5Vp-p/12Vp-p level; 20K–60KHz frequency; 0–5m (±45°), 0–8m (±90°)
Transmission Distance Up to 90m (8K@30Hz / 4K@120Hz via CAT6A/7), 60m (CAT6, 8K@30Hz)
USB Transmission USB 2.0 up to 350Mbps; Host/Device configurable
Ethernet 1GbE bi-directional Ethernet (auto-adaptive)
Power Supply DC 24V/2.7A (locking type); supports bi-directional PoC
Power Consumption Total: 20.4W (PoC); TX: 9.36W; RX: 9.84W (full load)
Dimensions (W×D×H) 200mm × 100mm × 30mm (each unit)
Weight 571g (each unit)
Enclosure Front panel: Aluminum; Housing: Metal; Color: Black
ESD Protection IEC 61000-4-2: ±8kV (air discharge), ±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 20% ~ 90% RH (non-condensing)

Transmitter (TX) Interfaces

Port Description
1 × HDMI INType A (19-pin female), video input
1 × HDMI OUTType A (19-pin female), local loop-out or return video output
1 × HDBT OUTRJ45 (8-pin), transmits audio/video and control signals
1 × AUDIO IN3.5mm stereo mini jack
1 × AUDIO OUT3.5mm stereo mini jack
1 × IR IN / 1 × IR OUT3.5mm stereo jacks for IR control transmission
1 × RS-2323pin-3.81mm phoenix terminal (signal pass-through, control, or upgrade)
1 × USB HOSTUSB Type-B port for PC connection
3 × USB DEVICEUSB Type-A ports for peripherals (keyboard, mouse, flash drive)
1 × ETHERNETRJ45 port supporting 1GbE bi-directional network
1 × DC 24VPower input (locking type), supports PoC
eARC/ARC FunctioneARC audio return from RX HDMI OUT to TX HDMI IN or loop-out

Receiver (RX) Interfaces

Port Description
1 × HDMI OUTType A (19-pin female), main video output to display
1 × HDMI INOptional HDMI input (disabled by default, command-controlled)
1 × HDBT INRJ45 (8-pin), receives audio/video and control from TX
1 × AUDIO IN3.5mm stereo mini jack
1 × AUDIO OUT3.5mm stereo mini jack
1 × IR IN / 1 × IR OUT3.5mm stereo jacks for IR transmission between TX and RX
1 × RS-2323pin-3.81mm phoenix terminal (signal pass-through, control, or upgrade)
1 × USB HOSTUSB Type-B port for PC connection
3 × USB DEVICEUSB Type-A ports for peripherals
1 × ETHERNETRJ45 port supporting 1GbE bi-directional network
1 × DC 24VPower input (locking type), supports PoC
eARC/ARC FunctionSupports eARC/ARC audio return to TX

Important Notes

  • Use high-quality CAT6A/7 cables for stable long-distance transmission; avoid low-grade or uncertified cables to prevent signal degradation.
  • Enable or disable the eARC/ARC function key on both Transmitter and Receiver before operation to ensure proper audio return setup.
  • Only use the original DC 24V/2.7A power supply to maintain stable PoC operation and prevent device damage.
  • Ensure proper grounding and surge protection to safeguard against electrical spikes or lightning surges.
  • Confirm DIP switch settings for EDID and CONFIG according to your system requirements (refer to the user manual for combinations).
  • Maintain operating temperature between 0°C ~ 40°C and storage temperature between -20°C ~ 60°C for reliable performance.

Package Contents

  • 1 × HD6300K 8K HDMI over HDBaseT 3.0 Extender (Transmitter)
  • 1 × HD6300K 8K HDMI over HDBaseT 3.0 Extender (Receiver)
  • 1 × IR Blaster Cable
  • 1 × IR Receiver Cable
  • 2 × 3.5mm Audio Cable
  • 1 × RS-232 Cable
  • 1 × 24V/2.7A Power Adapter
  • 1 × User Manual
  • 1 × Mounting Accessories Set
