HD81600K


8x16 4K Matrix Switch + HDBaseT Extender

Support RS232, IR, TCP/IP, APP


Products / 4K 60HZ Extender

Dual-Purpose Matrix Switcher

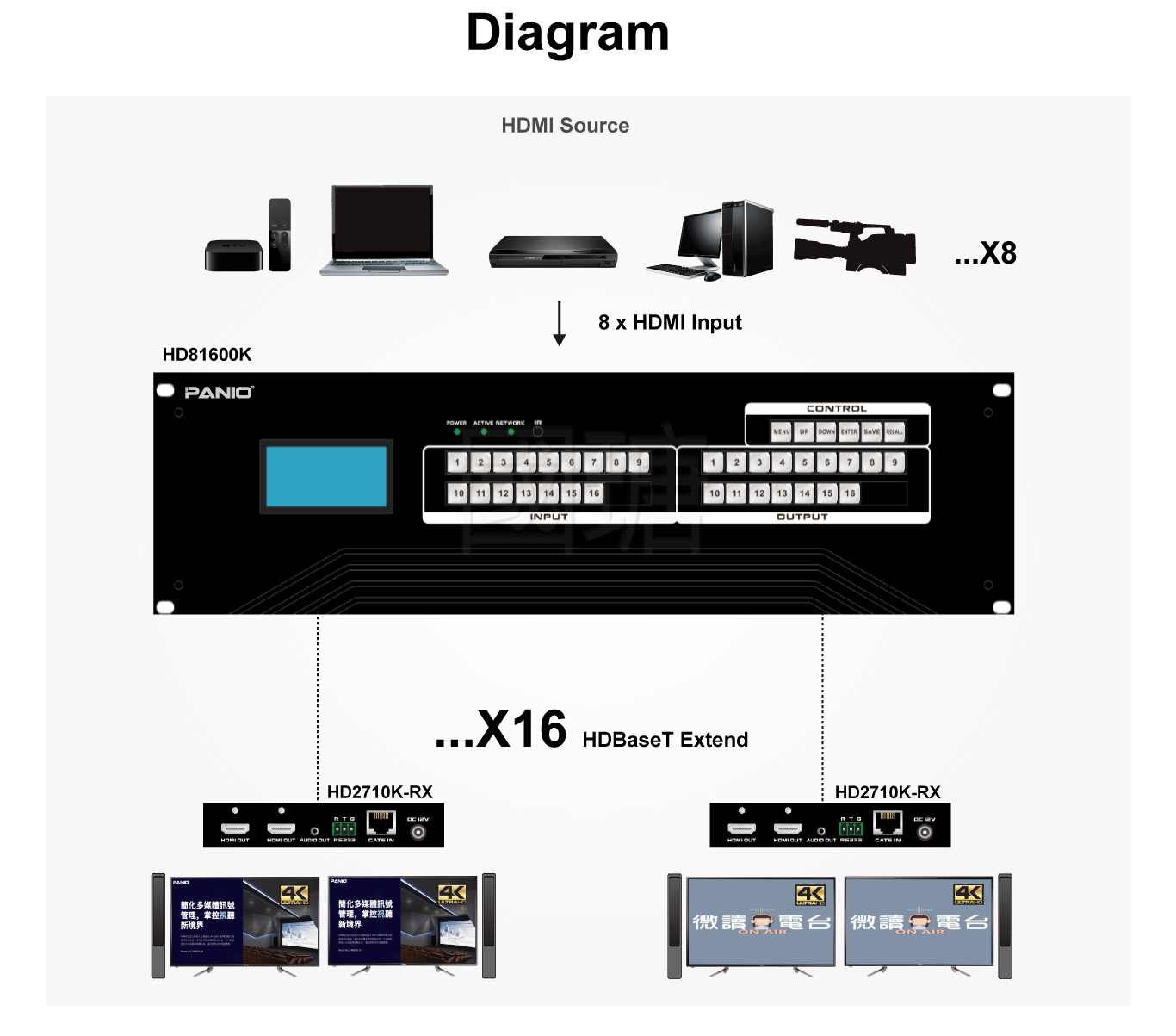

8x16 4K HDMI matrix switcher with dual-screen output per remote receiver, supports up to 32 displays.

Remote Display Transmission

HD81600K_A: Supports 4K@30Hz video transmission up to 70 meters. HD81600K_B: Supports 4K@30Hz transmission up to 40 meters over a single CAT6 cable.

HDBaseT Long-Distance Transmission

Utilizes HDBaseT technology to transmit uncompressed audio and video signals over long distances using standard network cables.

Independent Audio Output

Remote receivers feature a built-in 3.5mm audio output for easy connection to external audio systems, delivering clear and synchronized sound.

External Audio Source Integration

The matrix switcher supports external audio input via a 3.5mm stereo jack at the signal source, allowing flexible integration with other devices.

Power over Cable (PoC)

The matrix switch provides single-end power supply to the HDBaseT receivers, eliminating the need for external power adapters at the display end.

Dual Power Redundancy

Supports dual independent power supplies to ensure uninterrupted operation and enhanced system reliability.

Dual Control Interfaces

Equipped with dual RS-232 and dual LAN ports for flexible system integration and remote management via software or network protocols.

4K 4-in 16-out signal matrix switch + extension all-in-one machine
Feature
  • Supports 8 HDMI input sources for flexible signal routing.
  • Equipped with 16 RJ-45 HDBaseT output ports for long-distance transmission.
  • Each receiver supports dual HDMI outputs, allowing connection to up to 32 remote displays.
  • Extends uncompressed HDMI audio and video signals up to 40 or 70 meters with zero latency.
  • Delivers stunning 4K resolution at 30Hz for ultra-clear visuals.
  • Fully compliant with HDMI 1.4b and HDCP 1.4 standards for wide compatibility.
  • Integrate external audio sources via the 3.5mm stereo input on the signal input port.
  • Remote receivers feature 3.5mm audio outputs for direct connection to external speaker systems.
  • Single-side Power over Cable (PoC) eliminates the need for separate power adapters at the receiver end.
  • Advanced EDID management ensures optimal display compatibility and performance.
  • Dual AC power inputs provide redundancy for continuous and reliable operation.
  • Built-in dual RS-232 and dual LAN ports enable flexible integration and remote control.
  • Multiple control options: Front panel, IR remote, RS-232, Web UI, and mobile app control.

Specification

Model Name HD81600K
Input port 8 x HDMI input, 8 x 3.5mm input
Output port 16 x HDBaseT RJ-45 (output to receiver: HD2710K-R)
Receiver Interface (HD2710K-R) 2 x HDMI output, 1 x HDBT RJ-45 input, 1 x 3.5mm audio output
Video resolution (Max) 4K 30hz
Protocol standard HDMI 1.4b, HDCP 1.4
Control mode Button, Remote control, RS-232, Web GUI, and APP.
HDMI Cable length Total HDMI cable length, including both input and output, should not exceed 10 meters.
Transmission distance HD81600K_A: Transmit 4K video at 30Hz up to 70 meters.
HD81600K_B: Transmit 4K video at 30Hz up to 40 meters.
Power supply AC 100~240V 50/60Hz
Dimensions Matrix switcher 482 x 405 x 138mm ( LxWxH ), Receiver 152 × 100 × 27mm ( LxWxH )

Note:

  • Please use certified HDMI cables to ensure optimal signal transmission quality.
  • Do not connect uncertified switchers, splitters, or converters in series, as this may cause instability or malfunction.
  • To maintain stable performance, always use the original certified power adapter provided by the manufacturer.
  • If integration with third-party devices is required, please consult us in advance to avoid compatibility issues.
  • Use standard CAT6 network cables with all 8 pins connected for proper HDBaseT transmission.
  • The HDBaseT RJ-45 port must not be connected through a network switch or router.
  • For shipping safety, the remote control battery is not included in the package.

Package Contents

  • 1 X HD81600K Matrix Switcher
  • 16 X HD2710K-R receivers
  • 2 X Power Cord
  • 1 X Remote control (battery not provided)
  • 1 X User manual
  • 1 X Rack Accessories (set)
