HD8820K


4K 60Hz 8-in 16-out HDMI Matrix Switch + HDBaseT Extender All-in-One

Supports RS232, IR & TCP/IP Control


Products / 4K 60Hz Extenders

2-in-1 Integrated Design

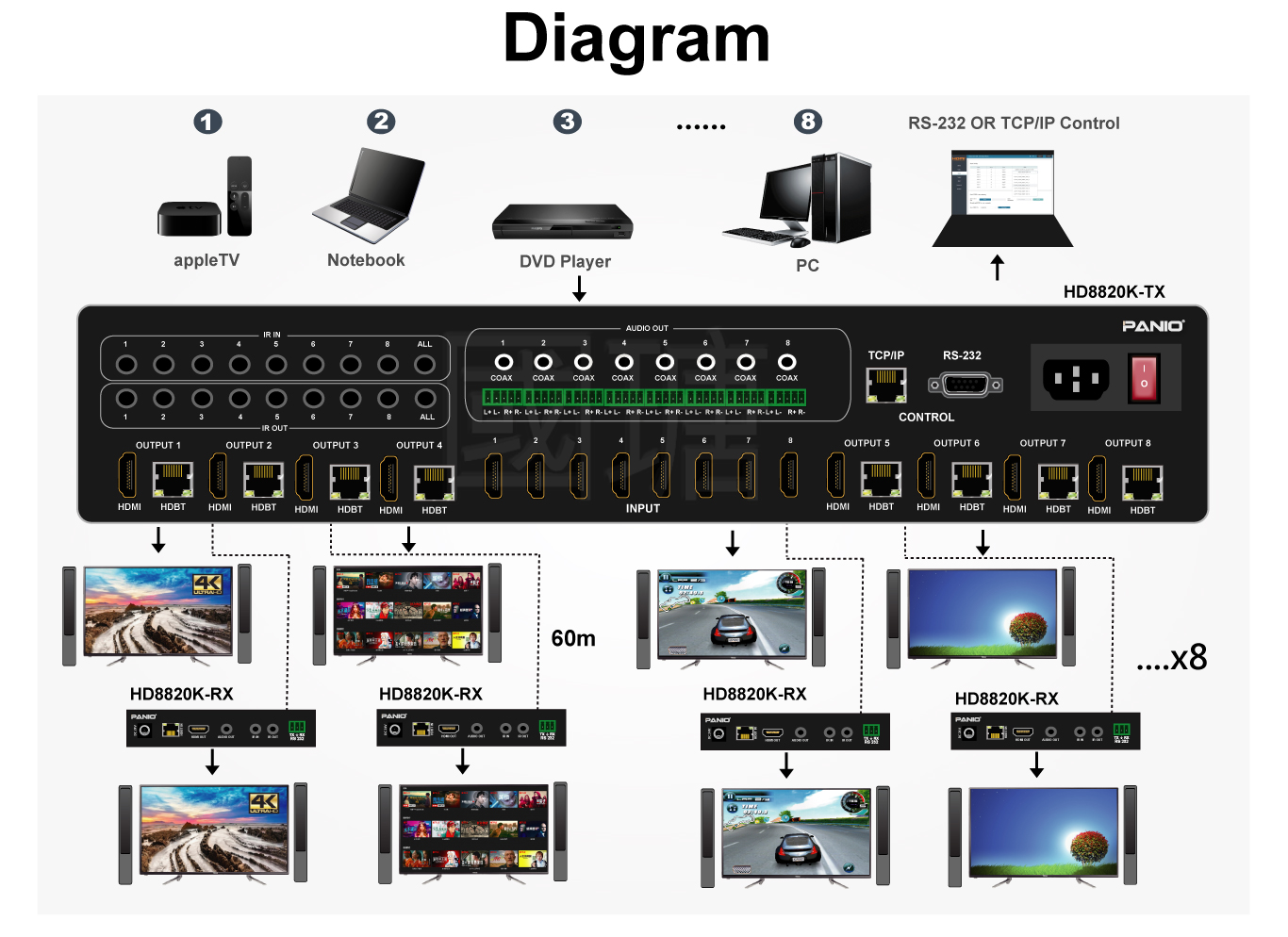

Combines HDMI matrix switching and long-distance HDBaseT signal transmission in one unit. 8x8 matrix switching functionality enables simultaneous 8-channel local and 8-channel remote video playback with synchronized output.

Long-Distance Transmission Performance

Supports lossless 150m transmission at 1080P @60Hz and 120m transmission at 4K @60Hz via standard Cat6 network cable.

HDBaseT Technology Transmission

Transmits uncompressed ultra-high definition audio and video signals over Cat6 network cables via HDBaseT technology, ensuring long-distance playback without signal degradation.

Independent Audio Output

Equipped with built-in COAX coaxial and L/R analog audio independent output ports for flexible audio separation and external audio system connection.

4K 60Hz Ultra-HD Resolution

Supports ultra-high resolution up to 3840 × 2160 @60Hz with YUV4:4:4 chroma subsampling, 18Gbps bandwidth, and HDR10+, HLG, Dolby Vision high dynamic range formats.

POC Single-Side Power Supply

Power over Cable (POC) technology enables single-side power supply; the remote receiver requires no additional power source, ideal for complex installation environments with limited power access.

HDMI CEC Functionality

Integrated HDMI Consumer Electronics Control (CEC) allows seamless one-touch control of all connected HDMI devices for simplified operation.

Minimized Signal Attenuation

All-in-one matrix switch and extender design eliminates the need for additional transmission adapters or cables, avoiding signal attenuation and compatibility issues caused by multiple device connections.

4K 60Hz 8-in 16-out HDMI Matrix Switch + HDBaseT Extender All-in-One
Key Features
  • 8 x HDMI 2.0 input ports for multi-channel ultra-high definition signal sources
  • 8 x HDMI 2.0 local output ports for direct short-distance display connection
  • 8 x RJ-45 HDBaseT ports for long-distance remote output transmission
  • Transmits uncompressed 4K audio & video signals to HD8820K-R remote receivers via Cat6 cable for HDMI display output
  • HD8820K-R receiver features HDMI, bidirectional IR, RS-232 and 3.5mm audio output interfaces
  • Supports 4K @60Hz resolution with YUV4:4:4, 18Gbps bandwidth, HDR10+, HLG and Dolby Vision
  • Compliant with HDMI 2.0b and HDCP 2.2 / 1.4 encryption standards
  • Lossless signal transmission up to 150 meters at 1080P @60Hz via Cat6 cable
  • Lossless signal transmission up to 120 meters at 4K @60Hz via Cat6 cable
  • Each output features 4K to 1080P downscaling, resolving resolution conflicts between 4K and 1080P displays
  • Built-in COAX coaxial and L/R 5-pin Phoenix connector for independent audio output
  • 21 preset EDIDs, 2 user-defined EDID modes and 8 EDID copy modes for perfect signal matching
  • Supports bidirectional infrared (IR) remote control for source and display device operation
  • Supports HDR, HDR10, HDR10+, Dolby Vision and HLG high dynamic range video formats
  • Integrated HDMI Consumer Electronics Control (CEC) for one-touch device management
  • Power over Cable (POC) enables single-side power supply for remote receivers
  • 1U rack-mountable design with high-definition front-panel OLED display for real-time status monitoring
  • Multiple control methods: front-panel buttons, IR remote control, RS-232 and Web GUI (TCP/IP)

Technical Specifications

Specification HD8820K
Input Ports 8 x HDMI 2.0, 8 x IR, 1 x RS-232, 1 x TCP/IP (RJ-45)
Output Ports 8 x HDMI 2.0 (Local), 8 x HDBaseT RJ-45 (to HD8820K-R Receiver), 8 x COAX, 8 x L/R (5-pin Phoenix), 8 x IR
Receiver (HD8820K-R) Interfaces 1 x HDMI 2.0, 1 x HDBaseT RJ-45, 1 x 3.5mm Audio, 1 x IR In, 1 x IR Out, 1 x RS-232 (3-pin Phoenix)
Maximum Video Resolution 4K @60Hz, YUV4:4:4 (18Gbps)
Compliant Standards HDMI 2.0b, HDCP 2.2 / 1.4
Control Interfaces Front-Panel Buttons, IR Remote, RS-232, Web GUI (TCP/IP)
HDMI Cable Length (Input/Output) Max 5m for direct connection; use extenders for longer distances to ensure signal integrity
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS-HD Master Audio, DTS-HD HRA, DTS:X
Coaxial & L/R Audio Formats Coaxial: PCM 2.0, Dolby Digital/Plus, DTS 2.0/5.1; L/R: PCM 2.0
HDR Formats HDR10, HDR10+, Dolby Vision, HLG
HDBaseT Transmission Distance (Cat6) 150m @1080P 60Hz | 120m @4K 60Hz (YUV4:4:4)
Audio Decoding Support DTS-HD, Dolby TrueHD, LPCM7.1, Dolby AC3, DTS, DSD
Color Space RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth 8/10/12-bit (1080P 60Hz); 8-bit (4K@60Hz YUV4:4:4); 8/10/12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
Maximum Bandwidth 18Gbps (Uncompressed)
ESD Protection Human Body Model: ±8kV (Air-gap Discharge) | ±4kV (Contact Discharge)
Power Supply AC 100~240V, 50/60Hz (Universal Voltage)
Dimensions (L×W×H) Matrix Switcher: 440 × 374 × 88.6mm; Receiver (HD8820K-R): 140 × 65 × 18mm
Net Weight Matrix Switcher: 6.45Kg; Receiver (HD8820K-R): 155g (each)

Important Notes

  • Use only certified HDMI 2.0 cables for all HDMI signal connections to ensure performance.
  • Do not daisy-chain with uncertified switchers, splitters or converters to avoid compatibility issues.
  • Use only the original certified power adapter for stable performance and device safety.
  • Inform our technical team if integrating with third-party devices to ensure full compatibility.
  • Use only Cat6 standard network cables (8-pin fully wired) for HDBaseT transmission.
  • HDBaseT RJ-45 ports are not compatible with standard network switches or LAN infrastructure.
  • Remote control batteries are not included due to international shipping safety regulations.

Package Contents

  • 1 × HD8820K Matrix Switcher & Extender Host
  • 8 × HD8820K-R Remote Receivers
  • 1 × Universal AC Power Cord
  • 1 × IR Remote Control (Batteries Not Included)
  • 1 × Multilingual User Manual (English Included)
  • 1 × Set of Rack-Mounting Accessories
