Professional 4K60 4x1 HDMI KVM Switcher with USB 3.0 Peripheral Sharing
4K@60Hz 4:4:4 | HDMI 2.0 | HDCP 2.3 | USB 3.0 5Gbps | HDR | Hotkey | IR | RS-232 | Auto Switching
HK430_W
Products / HDMI KVM Switcher
Key Features
4K60 HDMI 2.0 Switching
Supports resolutions up to 4K@60Hz 4:4:4 and 2K@60Hz / 144Hz with 18Gbps HDMI bandwidth for professional AV display quality.
4 Computers, 1 Console
Use one keyboard, mouse and HDMI display to control four computers, improving desktop efficiency and reducing cable complexity.
USB 3.0 up to 5Gbps
Integrated USB 3.0 ports share USB peripherals such as printers, scanners, webcams, flash drives and hard drives at up to 5Gbps.
HDR Pass-Through
Supports HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through for high-quality image reproduction and rich visual contrast.
Fast KVM Workflow
Fast video switching and keyboard / mouse seamless switching help users move smoothly between connected computers.
Flexible Control Methods
Switch via front-panel SELECT button, keyboard / mouse hotkeys, IR remote, auto switching or RS-232 ASCII command control.
Designed for Efficient Multi-Computer Control
One Keyboard, Mouse and Display for Four HDMI Computers

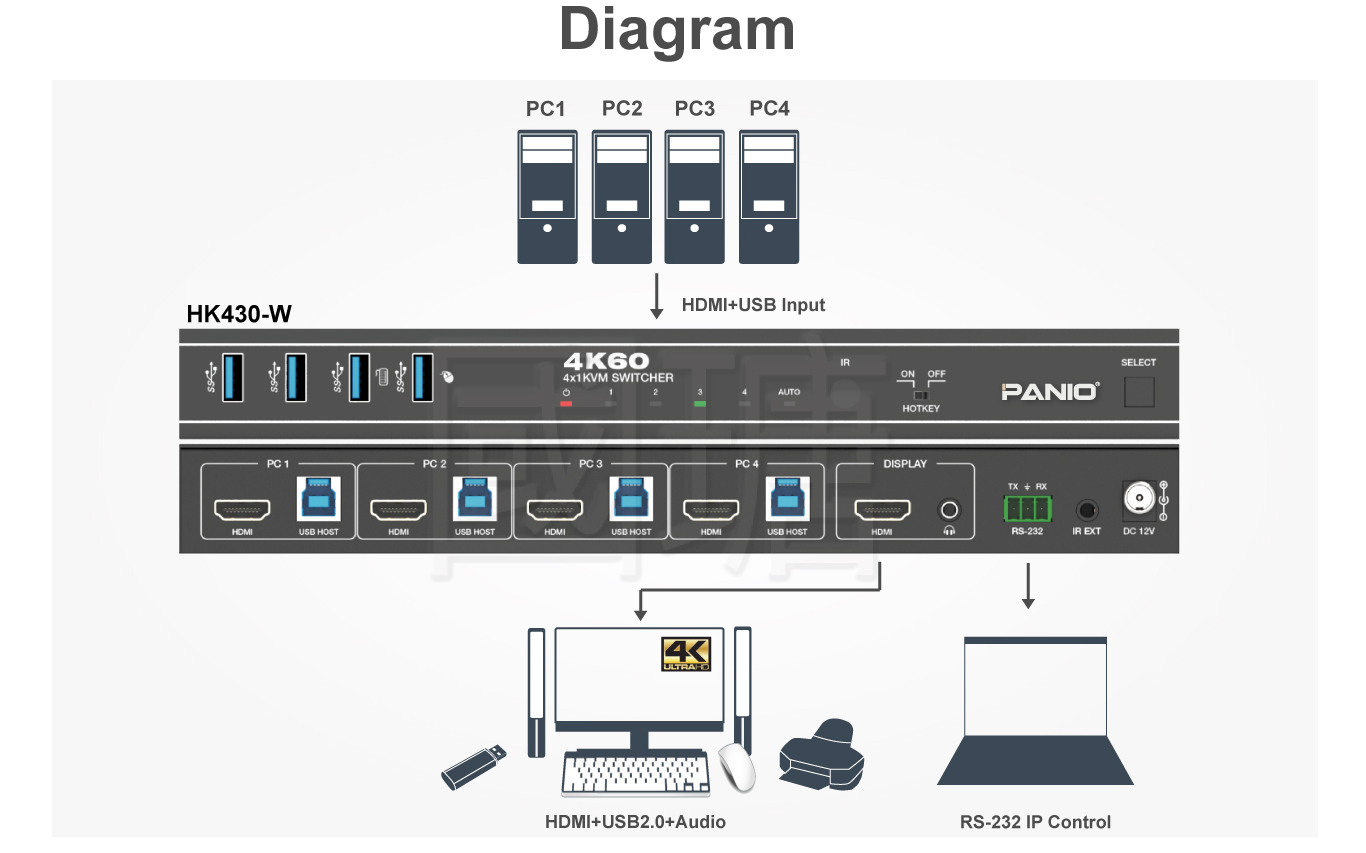

HK430_W lets one user operate four HDMI computers from a single console. It is ideal for workstations, meeting rooms, classrooms and control desks where multiple PCs must share one display and one set of USB input devices.
Four USB Host Type-B ports connect to the computers, while USB Device Type-A ports provide shared access for keyboard, mouse and USB 3.0 peripherals.
Fast Switching with Professional Control Integration
Users can switch sources from the front-panel SELECT button, IR remote, hotkey operation or auto switching. RS-232 ASCII command control is also available for integration with professional AV control systems.
Virtual interaction helps wake connected standby PCs and reduce switching time, while wide OS compatibility supports Windows, macOS and Linux without driver installation.
Why Choose HK430_W?
▸ Professional 4x1 KVM Operation
Control four HDMI computers from one console and simplify daily work across engineering desks, operator stations and conference spaces.
▸ High-Quality 4K Visuals
HDMI 2.0, 18Gbps bandwidth, 4K60 4:4:4 support and HDR pass-through deliver clear images for AV and professional display applications.
▸ USB Peripheral Sharing
Share USB 3.0 devices such as USB cameras, storage drives, printers and scanners between multiple computers without re-plugging cables.
▸ Multiple Switching Options
Front button, hotkey, IR, auto switching and RS-232 control provide flexible operation for both desktop users and system integrators.
▸ Driver-Free OS Compatibility
Designed for broad compatibility with Windows, macOS and Linux, supporting convenient deployment in mixed IT environments.
▸ Compact Metal Enclosure
Durable black metal housing with mounting accessories is suitable for desks, cabinets, AV racks and compact production spaces.
Detailed Function Description
- Professional 4K60 4x1 HDMI KVM switcher for controlling four HDMI computers from one shared keyboard, mouse and display.
- Supports HDMI 2.0, HDCP 2.3 and 18Gbps video bandwidth.
- Supports video resolutions up to 4K@60Hz and 2K@60Hz / 144Hz.
- Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0 color space with 8 / 10 / 12-bit color depth.
- Supports HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through.
- Four USB Host Type-B ports connect to host computers; four USB Device Type-A ports support keyboard, mouse and USB 3.0 peripheral sharing.
- Supports USB 3.0 transmission up to 5Gbps for high-speed peripheral sharing.
- Switching methods include front-panel SELECT button, keyboard / mouse hotkeys, IR remote, auto switching and RS-232 ASCII commands.
- Supports virtual interaction to wake connected standby PCs and reduce switching time.
- Supports no audio latency and no video latency for responsive operation.
- Supports HDMI audio formats including LPCM, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X and DSD; L/R audio output supports PCM 2.0CH.
- CEC is supported for compatible HDMI device control workflows.
Ideal Applications
HK430_W is designed for professional environments that require multi-computer HDMI switching, USB peripheral sharing and convenient console control.
Professional Workstations
Switch and control four computers from one shared keyboard, mouse and monitor.
Meeting Rooms
Connect multiple presenter PCs to one display while sharing USB peripherals.
Smart Classrooms
Switch between teaching PCs, media computers and connected USB devices.
Monitoring Rooms
Manage several PCs with one control console for monitoring, operation and maintenance.
Small Production Desks
Switch between multiple HDMI workstations and share USB input devices in compact production setups.
AV Control Spaces
Use RS-232, IR and hotkey options for flexible control in integrated AV environments.
Technical Specifications
| Specification | HK430_W |
|---|---|
| Model | HK430_W |
| Product Type | 4K60 4x1 HDMI KVM Switcher |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz, 2K@60Hz / 144Hz |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8 / 10 / 12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD; L/R OUT: PCM 2.0CH |
| Input Ports | 4 × HDMI Input [Type A, 19-pin female] |
| Output Ports | 1 × HDMI Output [Type A, 19-pin female], 1 × L/R Audio Output [3.5mm stereo mini-jack] |
| Control Ports | 1 × RS-232 [3-pin 3.81mm Phoenix], 1 × IR EXT [3.5mm stereo mini-jack], 4 × USB HOST [USB Type-B], 4 × USB DEVICE [USB Type-A] |
| IR | 5Vp-p, fixed frequency 38KHz |
| Latency | No audio latency / no video latency |
| CEC | Supported |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap discharge and ±4kV contact discharge |
| Power Supply | Input: AC 100-240V 50/60Hz; Output: DC 12V / 1A |
| Power Consumption | Typical 5.28W; standby 0.72W |
| Dimensions (W×D×H) | 270 × 100 × 30mm |
| Weight | 756g |
| Housing / Color | Metal enclosure / Black |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Relative Humidity | 20% - 90% RH, non-condensing |
| Recommended HDMI Cable | Premium High Speed HDMI cable: 4K60 4:4:4 up to 5m / 16ft; 1080P 4:4:4 up to 10m / 33ft |
⚠ Deployment Notes
- Use Premium High Speed HDMI cables for stable 4K60 4:4:4 signal transmission.
- For 4K60 4:4:4, recommended HDMI cable length is up to 5m / 16ft.
- For 1080P 4:4:4, recommended HDMI cable length is up to 10m / 33ft.
- Connect each computer with both HDMI and USB host cables to enable full KVM operation.
- In hotkey ON mode, connect keyboard and mouse to the dedicated hotkey USB ports for hotkey switching.
- For RS-232 integration, verify ASCII command format and serial communication settings before deployment.
- Confirm USB device power requirements when sharing high-power USB peripherals.
📦 Package Contents
- HK430_W 4K60 4x1 KVM Switcher × 1
- IR Remote × 1
- 3-pin 3.81mm Phoenix Connector (Male) × 1
- Fixed Frequency 38KHz IR Receiver Cable (1.5m) × 1
- USB 3.0 Cable (AM to BM, 1.8m) × 4
- HDMI Cable (Male to Male, 1.5m) × 4
- Mounting Ear × 2
- Machine Screw (KM3×4) × 4
- 12V / 1A Multinational Locking Power Supply × 1
- User Manual × 1
