Professional 4×4 4K30 USB 3.0 KVM Seamless Matrix
HDMI 4×4 | USB 3.0 KVM | Audio I/O | Zero-Second Switching | Video Wall | Web / RS232 / LAN / IR / Hotkey
HK4400_B
Products / Professional AV & KVM Matrix
Key Features
4×4 Matrix HDMI
Equipped with 4 independent HDMI+audio input sets and 4 corresponding HDMI+audio output sets, enabling fully synchronous switching of video and audio signals.
Built-in 4-Port USB 3.0 + Audio KVM Switch
Control four computers from one monitor, keyboard and mouse while switching USB 3.0 peripherals and audio together for efficient multi-host operation.
Zero-Second Seamless Switching
Reduces blank-screen interruption during source switching, keeping presentations, monitoring and display-wall operation smooth and professional.
Versatile Video Wall Splicing
Built-in multiple splicing modes eliminate the need for costly external processors, allowing seamless switching between spliced layouts and independent displays.
Scene Save & Recall
Save and recall matrix, video wall and display layouts for meeting modes, exhibition scenes and command-center workflows.
Web / LAN / RS232 Control
Supports Web GUI, TCP/IP LAN, RS232, IR remote, hotkey, app and front-panel control for professional AV integration.
Why Choose HK4400_B?
▸ AV Matrix + KVM in One Unit
Switch HDMI video, USB 3.0 control and audio together, reducing equipment count and simplifying on-site cabling.
▸ Built for Small-to-Medium Projects
The 4×4 architecture is ideal for meeting rooms, classrooms, showrooms, compact monitoring rooms and sub-control rooms.
▸ Cost-Effective Video Wall
Built-in video wall splicing eliminates the need for an expensive high-end video wall processor while supporting both spliced and independent display modes.
▸ Fast Scene Switching
Save and recall layouts for different meeting, presentation, monitoring and control-room scenarios with one-click operation.
▸ Integrator-Friendly Control
Web, RS232, LAN, IR, hotkey and front-panel control allow flexible deployment across different control architectures.
▸ Professional Features at Practical Cost
Seamless matrix switching, KVM, video wall, scene recall and multi-control interfaces are integrated into a compact cost-effective platform.
Detailed Function Description
- HK4400_B integrates four-channel HDMI KVM seamless fast switching. One console set — monitor, keyboard and mouse — can centrally control four computers while USB 3.0 peripherals and audio follow the selected source.
- 4×4 HDMI Matrix Switcher | 4K30 with Audio Embedding & De-embedding.
- Supports matrix cross-switching and four-screen video wall operation. Users can switch freely between a 2×2 spliced large display, independent multi-screen display, or mixed display layouts.
- Scene save and quick recall functions improve layout switching efficiency in meeting rooms, showrooms and control rooms.
- The Web control interface supports input/output switching, video wall mode setup, scene recall and system management.
- RS232, TCP/IP, IR, hotkey, app and front-panel control make it easy to integrate with central control systems or operate independently.
- Designed for small-to-medium professional AV environments, providing a lightweight, efficient and economical alternative to complex distributed KVM over IP or high-end 4K60 systems.

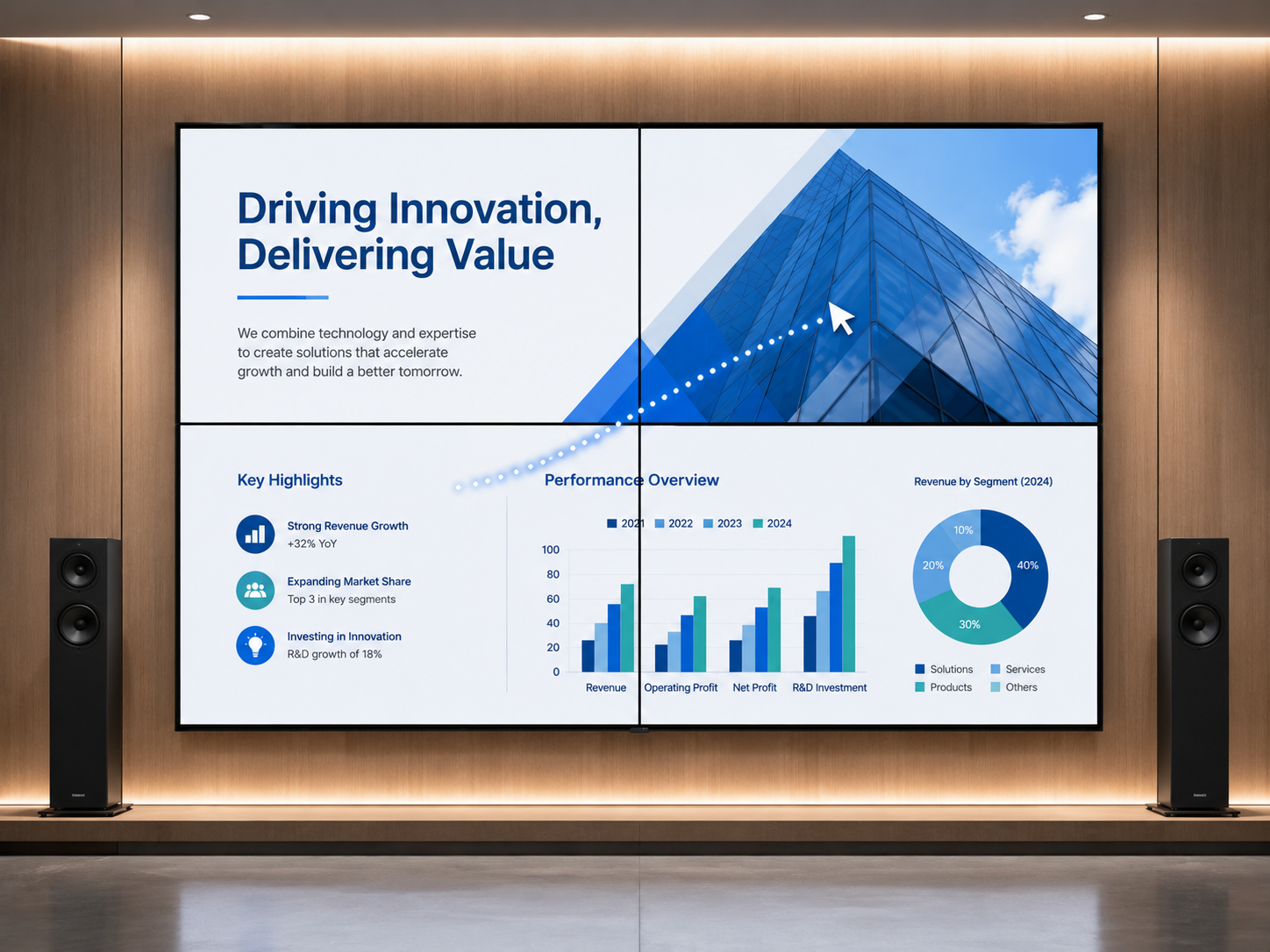

Presenting on a 2x2 Video Wall.
Supports 2×2 video wall display and fast switching among four computers, allowing users to control different PCs with one keyboard and mouse while switching USB 3.0 peripherals and audio together. Ideal for meetings, classrooms, monitoring and compact command applications.
Ideal Applications
HK4400_B is focused on small-to-medium professional control scenarios that require reliable switching, USB follow operation, scene recall and compact video wall display.
Meeting Rooms
Switch multiple computers, conference hosts, media players and display devices with seamless source transition and scene recall.
Smart Classrooms & Training Rooms
Integrate instructor PCs, projectors, interactive displays and USB control to simplify everyday teaching operation.
Compact Control Rooms
Use as a compact display matrix for factory control rooms, property monitoring rooms, campus security rooms and sub-control points.
Showrooms & Exhibition Spaces
Use one-click scenes, 2×2 video wall splicing and multi-content switching to enhance presentation efficiency.
Live Streaming & Small Broadcast
Serve as a display and control matrix for small live rooms, auxiliary production monitors and conference streaming systems.
System Integration Projects
Ideal for AV, low-voltage, education, meeting-room and exhibition integrators looking for a cost-effective control core.
Four-Screen Multi-View Application
Four output ports can independently display corresponding host signals. Output 1 integrates KVM control, allowing the operator to control the selected computer with keyboard and mouse in real time.
System Connection Diagram
- Target Applications: Meeting rooms, smart education, security monitoring, themed showrooms and compact command rooms.
- Preferred Channels: Low-voltage contractors, system integrators, meeting-room AV providers and education technology partners.
- Core Value: Professional AV/KVM functions at a practical budget, avoiding the complexity and cost of large distributed systems.
Technical Specifications
The following specifications summarize HK4400_B. Actual functions may vary by project version and system configuration.
| Specification | HK4400_B |
|---|---|
| Product Type | 4×4 4K30 USB 3.0 KVM Seamless Matrix with Video Wall |
| Inputs | 4 × HDMI, 4 × 3.5mm Audio, 4 × USB 3.0 |
| Outputs | 4 × HDMI, 4 × 3.5mm Audio, 4 × USB 3.0, 2 × USB 1.0 HID |
| Video Resolution | Input: 480p / 576p / 720p / 1080p@24/30/50/60Hz / 4K@30Hz Output: 720p@60Hz / 1080p@60Hz / 4K@30Hz |
| Standards | HDCP 1.4, USB 3.0, USB 1.0, VESA, CEA-861-F |
| Main Functions | Seamless Switching, USB Follow Switching, Video Wall Splicing, Scene Save / Recall, Audio Embed / De-embed, LCD Status Display |
| Control Methods | Front Panel Buttons, IR Remote, Hotkey Switching, Web GUI Control, RS232, TCP/IP LAN, APP |
| Default IP | 192.168.0.80 |
| Network Control | TCP Port: 5000; UDP Port: 4000 |
| RS232 | 115200 baud, 8 data bits, 1 stop bit, no parity |
| Power | AC 100–240V 50/60Hz; DC 12V 3A |
| Power Consumption | 8.2W idle; 13W full load |
| Dimensions | With rack ears: 486(W) × 279(D) × 59(H) mm Without rack ears: 440(W) × 279(D) × 44(H) mm |
| Weight | Net: 3.42 kg; Gross: 5.42 kg |
| Environment | Operating Temperature: 0°C–50°C; Storage Temperature: 0°C–50°C |
| ESD Protection | ±8 kV air-gap discharge; ±4 kV contact discharge |
⚠ Deployment Notes
- For best image quality and stability, the total HDMI cable length, including input, output and relay segments, is recommended not to exceed 10 meters.
- For long-distance cabling, use HDMI extenders, HDBaseT or AVoIP systems.
- Do not use uncertified switchers, splitters or adapters, as they may affect compatibility and stability.
- When used with other equipment, confirm compatibility in advance to avoid unnecessary installation issues.
- Use the original dedicated KVM extender whenever possible. Avoid mixing third-party extension devices to prevent protocol mismatch, signal interruption or control delay.
📦 Package Contents
- HK4400_B Main Unit × 1
- IR Remote Controller × 1
- Rack Mounting Ears for Matrix Unit × 1 Set
- 12V / 3A Power Adapter × 1
- Power Cable × 1
- Ground Wire × 1
- User Manual × 1
Ready to Build a Compact AV/KVM Control System?
HK4400_B supports 2×2 video wall display, four-computer source switching, one-keyboard-and-mouse control, USB 3.0 peripheral switching and audio follow switching for meeting, education, monitoring and compact command applications.
