HK802


Professional 8 port 4K HDMI KVM Switch

Support seamless switching, automatic scanning function, RS-232, up/down scaling, USB2.0 HUB


Products / Professional KVM Switch

0 seconds seamless switch

When switching signal sources, there is no black screen and the 0-second quick display function saves you 5 seconds of waiting time each time you switch.

Up and down scaling function

Support fixed resolution up and down to achieve the best quality image output.

Sharing USB2.0 peripheral devices

Supports USB2.0 Hub function, can share printers, mobile disks...and other devices.

4K resolution

Support resolution up to 3840 X 2160 30Hz.

Auto switch to next port

Support auto-scan function (built-in 3 seconds scan time).

Automatic signal detection

Support automatic signal detection function, automatically giving priority to displaying the last input signal.

No signal output port is not displayed

The smart mode does not display output ports with no signal, reducing the waiting time for a black screen.

Audio and video separation output

Outputs 3.5mm audio, can be connected to external speakers.

RS-232 port

Support RS-232 remote control.

Professional 8 port 4K HDMI KVM Switch|TAIWAN PANIO
Feature

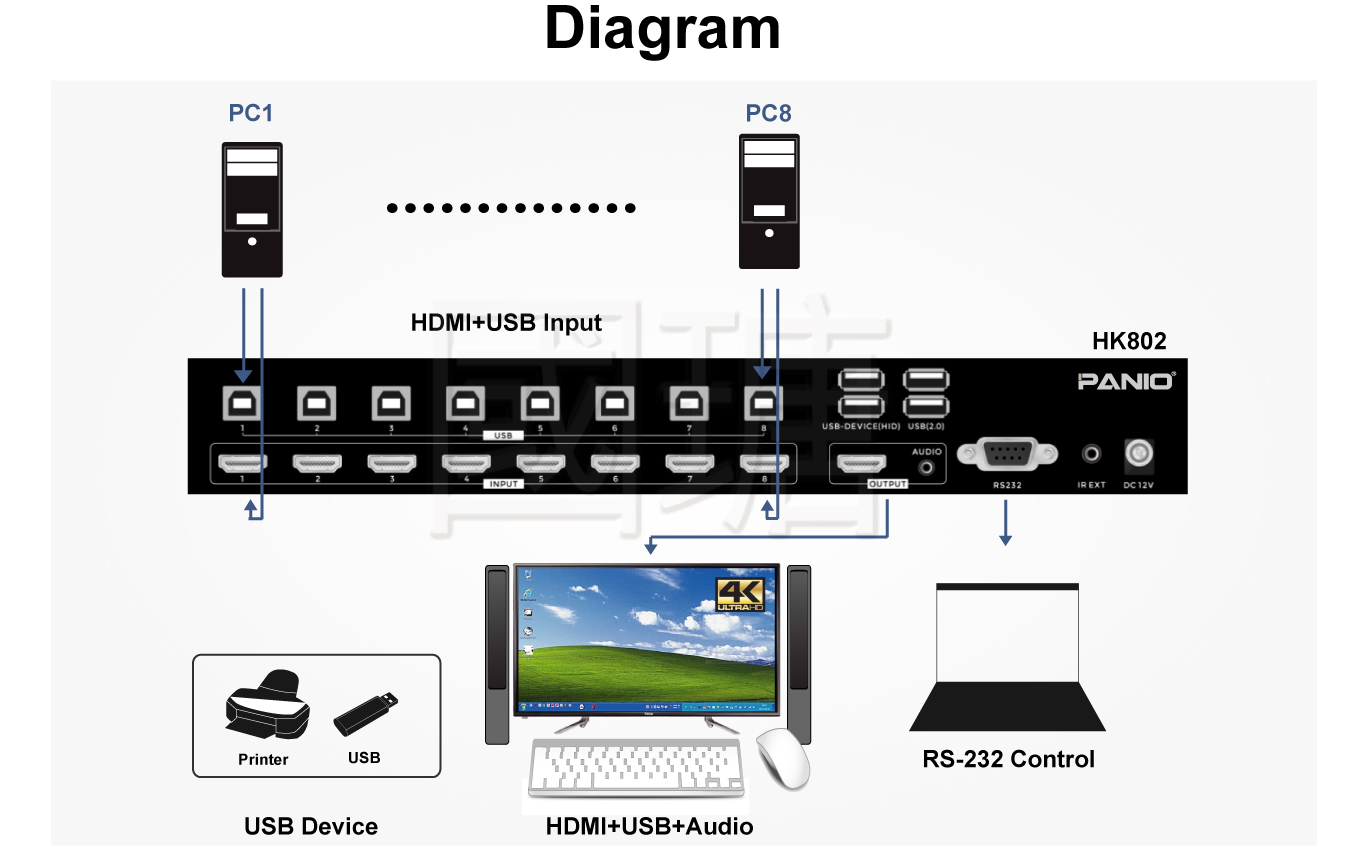

  • 1 set of 4K HDMI screen and USB keyboard and mouse to centrally manage 8 computer hosts.
  • Support resolution up to 3840 X 2160 30Hz.
  • Share USB2.0 peripheral products, such as printers, mobile disk devices, etc.
  • Turn on the automatic signal detection function. After startup, the last input signal will be automatically displayed and the output port without signal will not be displayed.
  • After starting the auto-scan function, it will automatically jump to the next port every 3 seconds.
  • Support upscaling and downscaling resolution: 1366X768/ 720P/ 1080P/ 4K 30Hz.
  • Support 0-second switching, no black screen trouble during switching, instant switching without delay, and smoother switching effect.
  • Adjust input EDID management through RS-232 command.
  • Support remote control switching, hot key switching, panel button switching, and RS-232 switching.
  • Support separate independent output of audio and video.
  • Support working and standby energy saving modes.
TAIWAN PANIO 4K

Specification

Model Name HK802
Input 8 x HDMI, 8 x USB
Output 1 x HDMI, 4 x USB, 1 x RS-232, 1 x 3.5mm
Resolution Support resolution up to 3840 X 2160 30Hz/ 4K 30Hz
Control mode Remote control, hotkeys, pushbuttons, RS-232 control
Auto scan 3 seconds
Control method Remote control, button, hotkey, USB mouse cross-screen switching, RS-232 command
Power supply DC 12V 1.5A
Dimensions 31 x 10.3 x 4.4cm ( LxWxH )
Weight 1.2Kg

Note:

  • Please use 4K cable to connect the signal.
  • Please use the original certified USB cable.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified adapter.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • It is possible that some industrial computers are not compatible with this device.

Package Contents

  • 1 X HK802
  • 1 X DC 12V 1.5A
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
