HW01


Mashup signal splicing/stacking matrix processor

Support CVBS/ VGA/ DVI/ HDMI/ SDI interface input.


Products / Video Wall Processor

Video Wall Controller

Up to 144 video walls can be spliced, and multiple groups of video walls can be set to display.

Mashup interface

Support CVBS/ VGA/ DVI/ HDMI/ SDI interface input.

Fast cut

When switching the signal source, no black screen 0 seconds fast display function.

Split screen

It can be divided into 2/4 screens and displayed simultaneously on one screen.

Screen overlay zoom

Support arbitrary placement/zooming/overlaying of images on the screen.

Preview function

You can preview the output screen in the software. (Additional purchase)

Dual backup

Support dual power control backup function. (additional purchase)

Automatic upscaling function

The image enhancement processing outputs to the same resolution.

Scene storage

4 grouped scenes, each group of 32 scenes saves up to 128 scenes in total.

Support arbitrary placement/zooming/up and down picture-in-picture images on the screen.
Feature

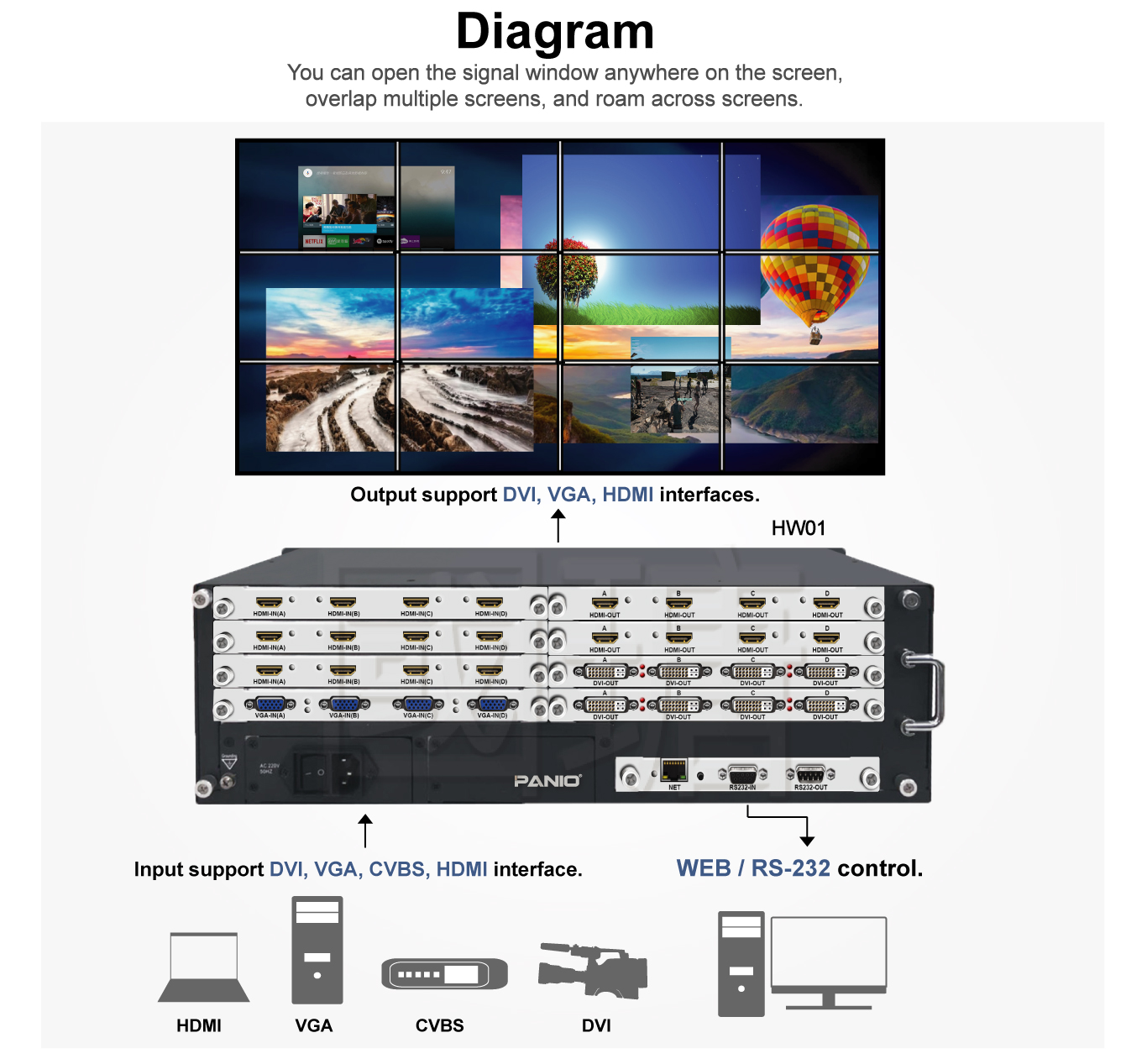

  • Input support DVI, VGA, CVBS, HDMI interface.
  • Output support DVI, VGA, and HDMI interfaces.
  • Support 16 kinds of situation mode selection.
  • Support 0 seconds of seamless switching, no delay, and real-time switching, the switching effect is more smooth.
  • Support arbitrary placement/zooming/up and down picture-in-picture images on the screen.
  • Support arbitrary cropping of input images.
  • Support OSD input text, change font type, font size, background color, foreground color, display position, and other parameters through software.
  • Support image edge processing technology to solve the image misalignment caused by the border seam produced during the splicing process of the display end.
  • Support 3D image frequency repairing, and pixel reread processing function.
  • Support splicing picture 4-layer picture-in-picture (additional purchase).
  • Support 1+1 power supply to ensure the continuous operation of the equipment for 24 hours (additional purchase).
  • Control method: TCP/IP, RS-232, APP.
  • Support 19-inch rack.

Specification

Model Name HW01
Input DVI, VGA, CVBS, HDMI interface
Output DVI, VGA, HDMI interface
Resolution The maximum resolution is 1920 x 1080 60Hz, backward compatible.
Number of card ports Each card has the same interface 4 port output, CVBS card 16 port output
The length of the connecting cable Can be connected to a 4K HDMI cable with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Control method TCP/IP, RS-232, APP.
Power supply AC 110V-240V 50/60HZ
Dimensions 3U: 483 x 428 x 133mm / 6U: 483 x 428 x 267mm / other customized (LxWxH)
Weight 15KG (without card) / 20KG (without card)

Note:

  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • The output + input cannot exceed 10 meters, and it is recommended to use an optical HDMI cable to extend the distance beyond this length.

Package Contents

  • 1 X HW01
  • 1x Power cord
  • 1 X User manual
