HW03


4K 60Hz Video wall matrix processor

Support splicing image 90 180 270 degrees rotation function, Quick switch, Quad-Split, RS-232, TCP/IP control


Products / Video Wall

Video wall splicing

Up to 16 screens Video walls can be spliced, and MxN splicing Video walls can be formed arbitrarily.

Quick switch

When the signal source is switched, there is no black screen 0 seconds quick display function.

4 Channel Multi-Viewer

One screen can be divided into 4 screens and displayed simultaneously.

4K Resolution

Support 3840 × 2160 60Hz resolution. (Video Wall mode)

Preview function

Any channel output 4 split screen, you can preview the input source screen instantly.(Matrix switch mode)

Separate sound output

Output 3.5mm audio source port, external speakers can be connected.

Modular architecture

Supports 4-in N-out matrix interleaved switching, can be flexibly expanded to 16 outputs.

Rotate the LCD to 180 degree

180-degree screen flip function can be set for each display unit, which greatly reduces the LCD splicing gap.

Rotate the screen 90 180 270 degrees

Splicing image 90 180 270 degrees rotation function, The input source can be turned into a 90 180 270 degrees image flip function.

Trimming function

The processed picture is not deformed and stretched, and the vision is more natural and lifelike.

Central control

Commonly used control codes are opened, and users can write the control codes into the central control system, and use the central control for centralized control.

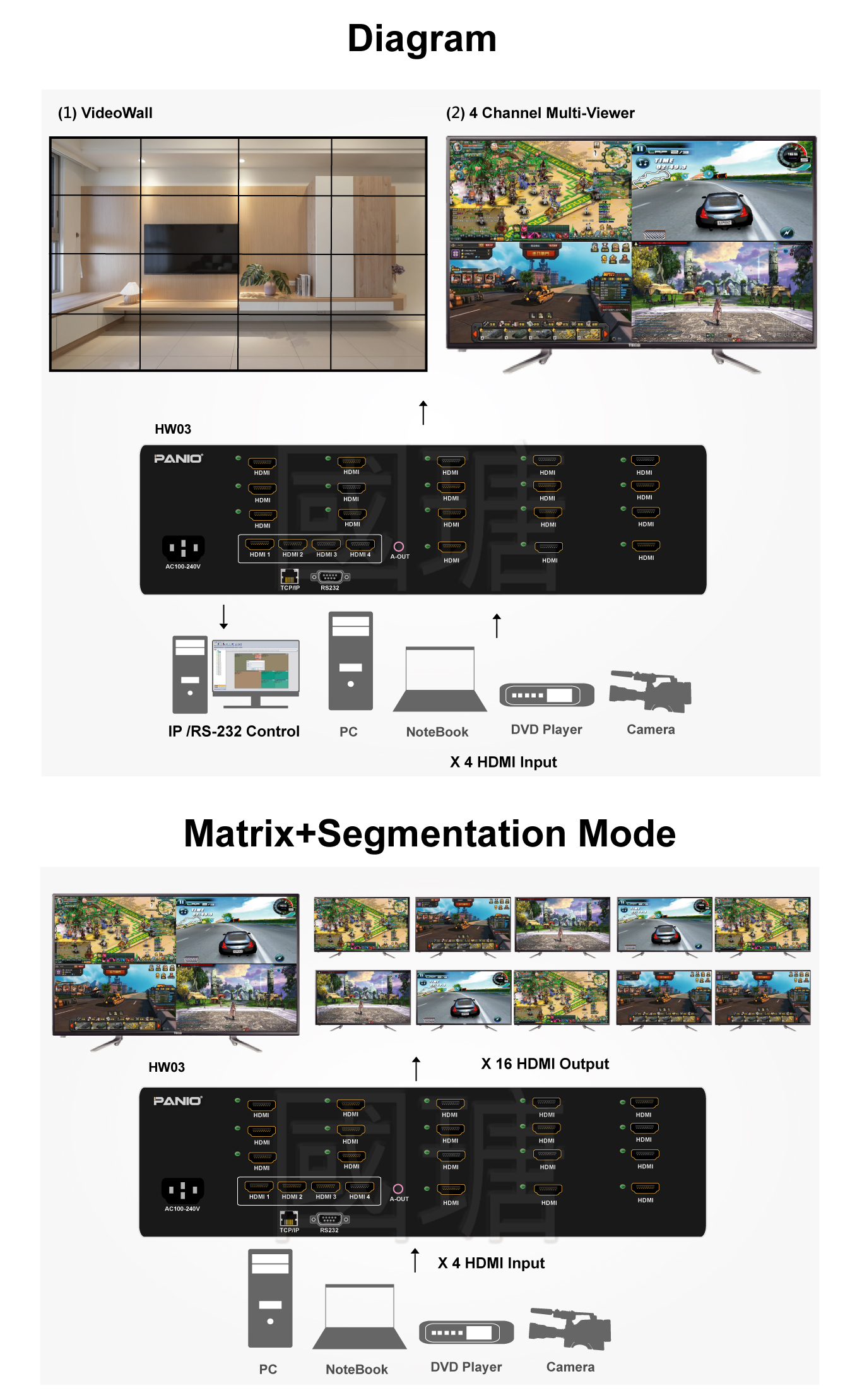

4K Quick Matrix switch with video wall
Feature
  • Support 2 x HDMI2.0, 2 x HDMI1.4 4 inputs, up to 4K 60HZ, also downward compatible.
  • Flexible expansion output card, up to 16 outputs.
  • The output resolution can be set in the stitching mode: 1024x768 60HZ, 1280 x 800 60HZ, 1280 x 720 60HZ, 1920 x 1080 60HZ, 1920 x 1200 60HZ.
  • Modular chassis design, integrated video wall processing, 4-screen split processing, fast switching matrix switching processing, and other multi-tasking audio-visual signal processors.
  • In matrix switching mode, it supports 0 seconds of seamless switching. There is no black screen trouble during the switching process, no delay, real-time switching, and the switching effect are more smooth.
  • Splicing image 90 180 270 degrees rotation function, The input source can be turned into a 90 180 270 degrees image flip function.
  • Supports 180-degree rotation of any display screen, and the display on the wall of the TV can be reversed.
  • PANIO Quick switch Technology: Support 0 second switch display function.
  • Supports preview function, 4 channels of signal sources are simultaneously displayed on any 1 TV.
  • Output up to 16 monitors, arbitrarily arranged MxN video wall splicing.
  • Supports image edge processing technology to solve the problem of image misalignment generated during the splicing process on the display side.
  • Support audio de-embedding, 3.5mm audio output independently.
  • Control method: remote control, button,TCP/IP, RS-232.
  • Support 19" rack size.

Specification

Model Name HW03
Slot Flexible expansion can connect up to 16 plug-in cards
Input Fixed 4 inputs: 2 x HDMI2.0, 2 x HDMI1.4
Output up to 16 x HDMI, 1 x 3.5mm
Input resolution support 2 channels 3840x2160 60Hz 4K 60Hz / 2 channels 3840x2160 30Hz 4K 30Hz
Stitching output resolution Optional output resolution: 1024x768 60HZ, 1280 x 800 60HZ, 1280 x 720 60HZ, 1920 x 1080 60HZ, 1920 x 1200 60HZ
Color depth 24bit, 16.77 million colors
Preview function 4 channels of signal source screens are synchronized to any TV to display 4 split screens simultaneously
Control card 1 x RJ45 (10M/100M), 2 x RS-232 input (DB9 female), 1 x RS232 output (DB9 male)
Control method Remote control, TCP/IP, RS-232, button
Power consumption 70W (Max)
Power AC170~245V 50~60HZ
Dimensions 440 x 310 x 133 (LxWxH)
Weight 7.5Kg

Note:

  • Please use a certified cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • Quick switch: need to be at the same resolution.

Package Contents

  • 1 X HW03 chassis
  • 1 X Power cord
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
