HW12


12-Port Output Video Wall Splicing Processor

Supports up to 5760x3240 30Hz Input | 12 HDMI Outputs


Products / Video Wall

Multiple Splicing Configurations

Built-in support for 4x3, 3x4, 2x6, 6x2 configurations — up to 12 screens. Perfect for both vertical and horizontal video wall setups.

Dual Interface Input

Equipped with DisplayPort and HDMI 1.4b dual-input interfaces for superior compatibility and flexible signal switching.

Ultra 5K Resolution

Supports up to 5760x3240 input at 30Hz for exceptional detail and visual fidelity on large-scale splicing displays.

Lossless, Distortion-Free Display

Delivers point-to-point precision with pixel-perfect clarity — ensuring proportional, undistorted, and stretch-free visuals.

180° Screen Rotation

Each display supports independent 180° rotation for flexible installation and creative display arrangements.

Independent Audio Output

3.5mm audio jack for separate sound output, allowing easy connection to external speakers or amplifiers.

Edge Processing Technology

Minimizes visual gaps between displays with intelligent edge correction, delivering a seamless and natural viewing experience.

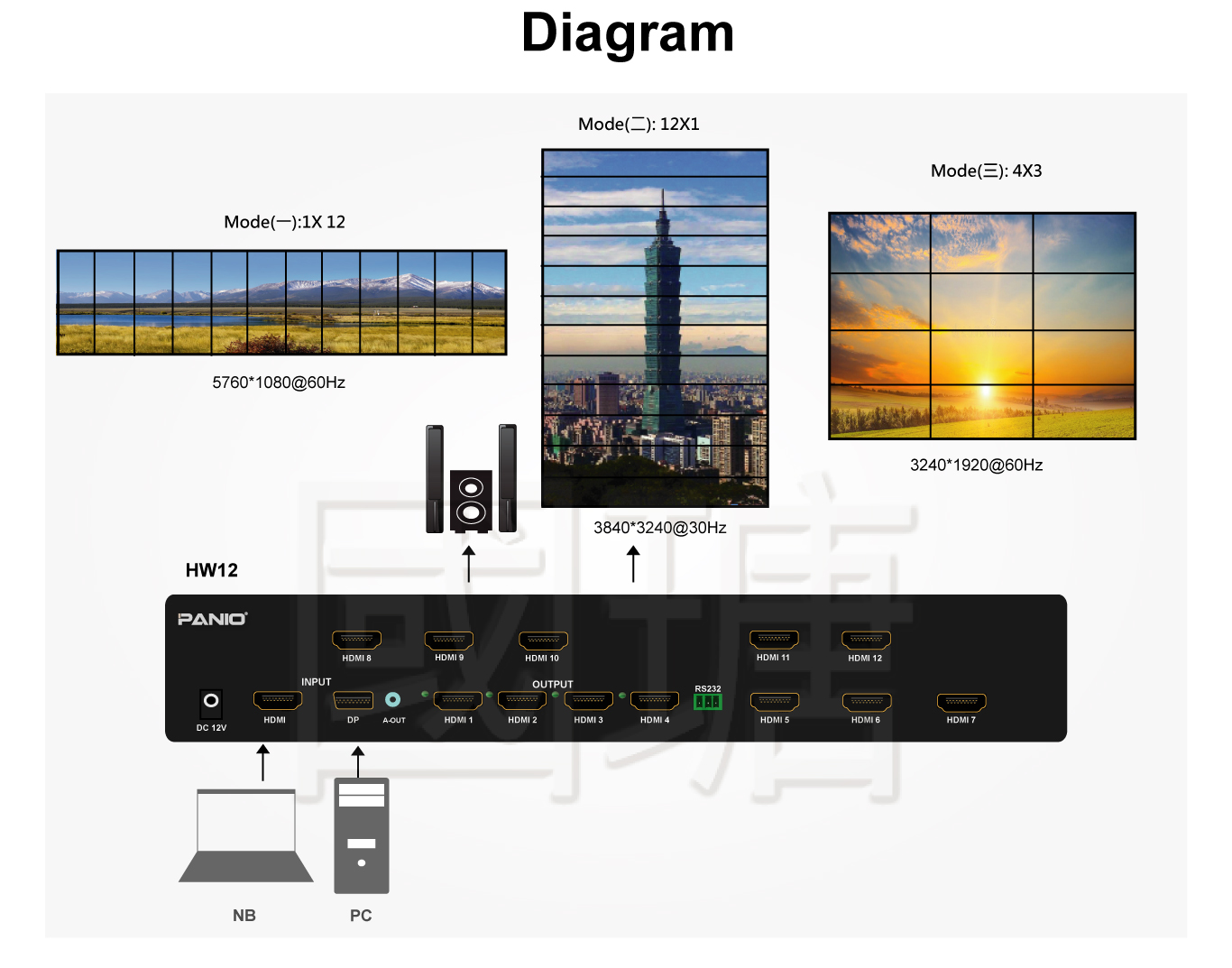

12-screen video wall 4x3, 3x4, 2x6, 6x2, 1x12, 12x1 configurations
Features
  • Supports various splicing layouts: 4x3, 3x4, 2x6, 6x2 — up to 12 screens total.
  • Dual input switching: 1x DisplayPort, 1x HDMI.
  • Supports 5760x3240 30Hz DP input and 3840x3240 30Hz HDMI input.
  • Preserves aspect ratio and ensures distortion-free visuals.
  • 180° screen rotation for each display unit.
  • Screen mirroring supported.
  • 3.5mm audio jack for dedicated sound output.
  • Plug-and-play hardware design — no software required.
  • Advanced 3D deinterlacing, noise reduction, gamma correction, and motion compensation.
  • Multiple output resolutions for projectors or monitors.
  • Dynamic contrast enhancement and six-axis color correction technology.
  • Control via remote, front panel, or RS-232.
Taiwan PANIO 4K

Specification

Model Name HW12
Input1 x HDMI, 1 x DisplayPort
Output12 x HDMI, 1 x 3.5mm Audio
Input ResolutionDP: 5760x3240 30Hz, 5760x1080 60Hz
HDMI: 3840x3240 30Hz, 1920x3240 30Hz backward compatible
Output Resolution1024x768, 1280x800, 1280x720, 1920x1080, 1920x1200 @60Hz (switchable)
Splicing Mode2x1–6, 3x1–4, 4x1–3, 6x1–2; vertical or horizontal placement supported.
Cable LengthEnsure HDMI input/output does not exceed 10 meters; use certified HDMI 2.0 4K 60Hz cables.
Control MethodRemote control, RS-232, Front panel button
PowerAC 100~240V 50/60Hz
Dimensions440 x 243 x 45mm (LxWxH)

Note:

  • Use certified 4K HDMI cables to ensure signal stability.
  • Do not use uncertified switchers or splitters.
  • Use only the original power adapter provided.
  • Remote control battery not included for shipping safety.
  • Contact us before connecting with third-party devices to ensure compatibility.
  • Total HDMI cable length (input + output) should not exceed 10 meters; use optical HDMI cables for longer runs.

Package Contents

  • 1 x HW12 Processor
  • 1 x Power Cord
  • 1 x Remote Control (Battery not included)
  • 1 x User Manual
