HW2240K


4-Screen Video Wall Controller

Support 7680 resolution input, audio separation output, 180° rotation


Products / Video Wall

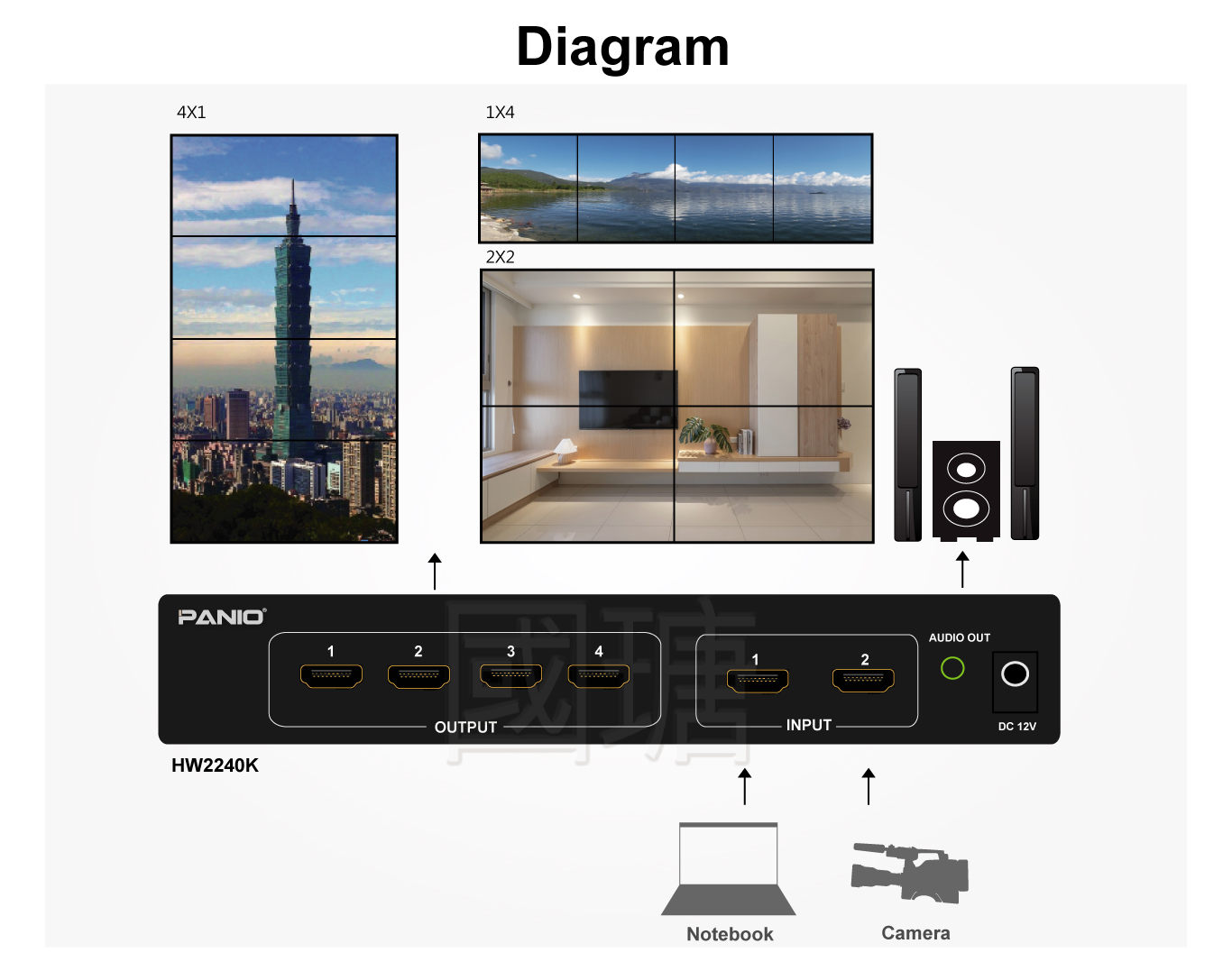

Multiple Stitching Modes

Supports various display configurations, including 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, and 4x1.

Dual HDMI2.0 Inputs

Features two HDMI input interfaces, supporting up to 4K resolution per channel.

Adjustable Bezel Compensation

Enables precise adjustment for display gaps, ensuring a seamless and natural visual experience across multiple screens.

High-Resolution Input Support

Accommodates various high-resolution input configurations, such as 1x3 (5760x1080), 1x4 (7680x1080), 2x2 (3840x2160), 2x1 (2160x1920), 3x1 (3240x1920), and 4x1 (4320x1920).

180° Screen Rotation

Allows individual screens to be rotated by 180°, offering flexible display orientation.

Audio Output

Includes a 3.5mm audio output for convenient connection to external speakers.

4K video wall
Feature
  • Integrated video wall configurations: 1x2, 1x3, 1x4, 2x2, 2x1, 3x1, and 4x1.
  • Supports seamless switching between two HDMI input interfaces.
  • Accommodates ultra-high input resolutions, including up to 7680x1080 and 4320x1920.
  • Features 180° rotation functionality for individual monitor screens.
  • Incorporates advanced image edge processing technology to mitigate display movement issues during multi-screen splicing.
  • Provides audio separation output via a 3.5mm port.
  • Pure hardware design ensures plug-and-play operation without the need for additional software installation.
  • Offers flexible control methods: remote control switching and panel button operation.
  • Includes built-in volume adjustment capabilities.
TAIWAN PANIO

Specification

Model Name HW2240K
Input 2 x HDMI
Output 4 x HDMI, 1 x 3.5mm
Input resolution 1920x1080, 1920x2160, 1920x3240, 1920x4320, 3840x2160 30Hz, 3840x1080, 5760x1080, 7680x1080
Output resolution Up to 1920x1080 60hz
Splicing TV wall 1x2 1x3 1x4 2x2 2x1 3x1 4x1
Protocol standard Support HDMI1.4b, HDCP
HDMI cable length Input and output can be connected to HDMI 4K cable up to 5 meters.
Control method Remote control, panel button
Power DC 12V/ 1.5A
Dimensions 240 x 154 x 28mm ( LxWxH )

Note:

  • Please use a 4K-compliant cable for signal connection.
  • Serial connection of uncertified switchers, distributors, or converters is not recommended.
  • To ensure stable quality, please use the original, certified power cord.
  • For shipping safety, the remote control battery is not included.
  • If intending to use with other devices, please inform us to prevent compatibility issues.
  • The total cable length for input and output should not exceed 10 meters; for longer distances, an optical HDMI cable is recommended.

Package Contents

  • 1 X HW2240K
  • 1 X 12V 1.5A Adapter
  • 1 X Remote control (Battery not provided)
  • 1 X User manual
