HW51200


4K 12-screen multi-image stacking + splicing processor

Support RS232 TCP/IP APP control and fast switching


Products / Video Wall Processor

TV wall splicing mode

Up to 12 screens can be spliced together to form a video wall.

Quick switching display

Quick display function with no black screen in 0 seconds when switching signal sources.

5 Port input

Supports up to 4 ports of HDMI input and 1 port of HDMI or DP input, and can also be used as a matrix switching signal.

PIP overlay zoom

Supports arbitrary placement/zooming/superimposition of images on the screen.

Preview function

Preview output images in software.

128 scenes

There are 4 groups of scene storage, each group can store 32 scenes.

4K 5-signal input 12-screen video wall splicer, screen overlay/arbitrary scaling/arbitrary arrangement| PANIO
Feature
  • Support splicing of up to 12 screens into a large video wall. (Any number within 12 screens can be spliced).
  • Support 5 port HDMI+DP input. (5th port HDMI or DP 2 choose 1 input)
  • Support multiple splicing images and picture-in-picture images.
  • Support opening windows/ moving/ zooming/ superimposing images up and down at any time on the screen.
  • Support input signals to be displayed on any screen.
  • Support 1 port 4K 30Hz signal input.
  • Support remote synchronization real-time preview function.
  • PANIO fast switching technology: support 0-second switching display function.
  • Permission management: support multiple groups of user permissions, such as advanced users, administrator users, ordinary users, etc.
  • There are 4 groups of scenes in total, each group has 32 scenes saved, and up to 128 scenes can be stored.
  • You can set the scene to play in sequence.
  • Support the screen cropping function.
  • It solves the problem of gaps in TV frames during the screen splicing process and has built-in image edge processing technology.
  • ESD military spec electrostatic protection.
  • Supports automatic storage and protection of power outage scenes, and automatically restores memory function after power on.
  • Control mode: Supports Web UI, RS-232 and APP control.
  • Supports 19" rack size.
  • Optional remote control panel operation -CP1000, It can be used as long as there is a network or RS-232 interface; complex commands are simplified into a single button, allowing users to get started easily and quickly.
  • Use a 4K extender to extend the input or output signal. After actual connection testing, there will be no problems such as screen flickering or no image. -HD6000K
PANIO 4K

Specification

Model Name HW51200
Input 4 x HDMI (1080P), 1 x HDMI/ DP (4K 30Hz)
Output 12 x HDMI
Input resolution Support 1920×1200 60Hz, 3840x2160 30Hz.
Output resolution Support 1920×1080 60/ 50/ 30Hz resolution is downward compatible.

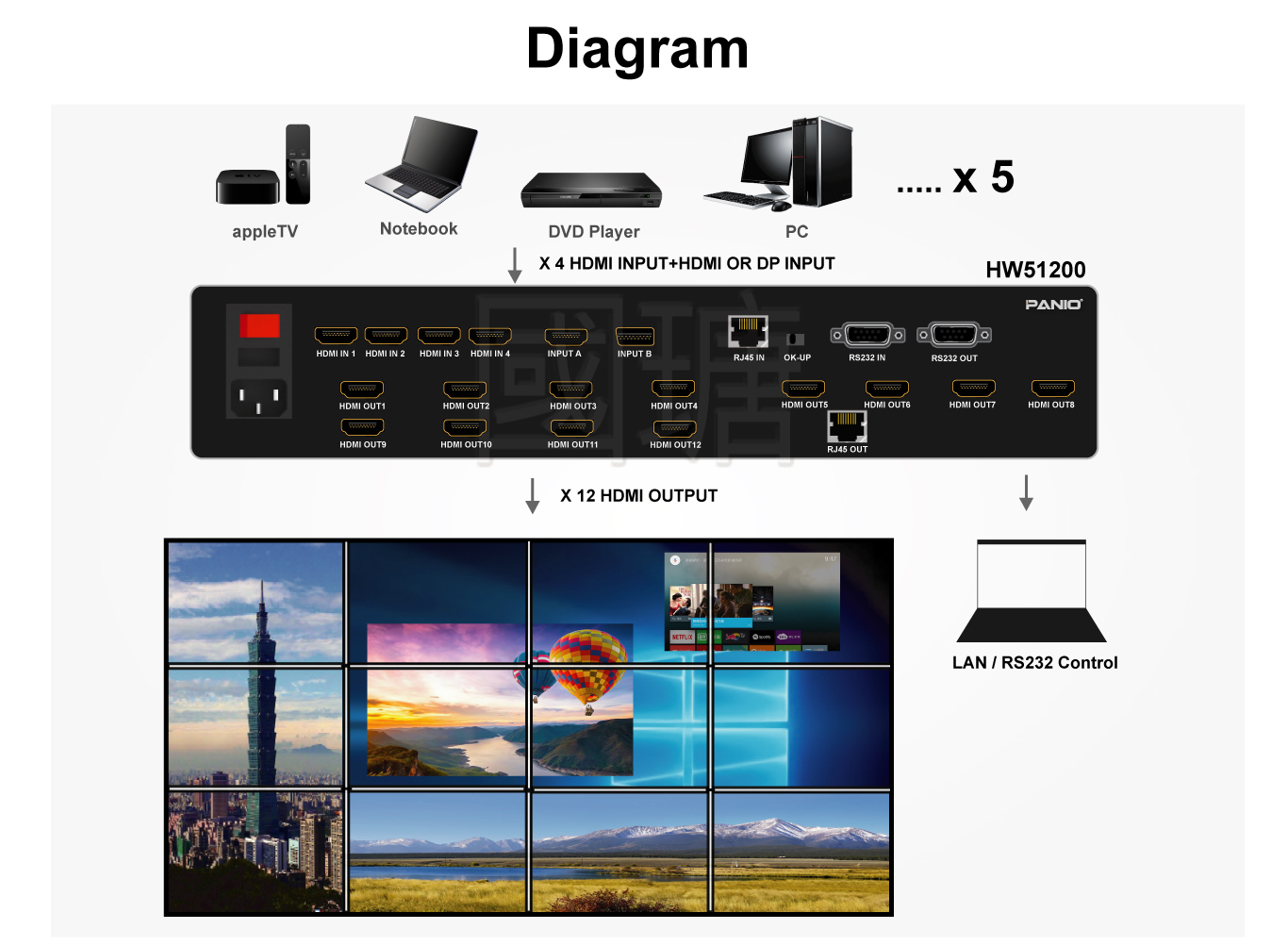

Splicing TV wall Any 5 signal sources can be displayed in the 12-screen TV wall (the 12-screen large screen can stack 5 signal sources).
Preview Card 1 x RJ45 (100M/1000M) preview output picture.
Control card 1 x RJ45 (10M/100M), 1 x RS-232 input, 1 x RS-232 output
Control software Support TCP/IP RS-232 and APP control
The video transmission distance (Max.) Extended through a standard HDMI cable, and the output/input length can be up to 5m each (over this length, please use it with an extender)
Power AC110~240V 50~60HZ
Dimensions 410 x 350 x 72mm ( LxWxH )

Note:

  • Please use 4K cable to connect the signal.
  • It is not recommended to serial switchers, distributors, converters, and so on that have not been certified by the factory.
  • To maintain quality stability, please use the original certified power cord.
  • If you need to use it with other devices, please be sure to inform us to avoid incompatibilities.
  • Please use Giga switch to connect preview card and control card.

Package Contents

  • 1 X HW51200
  • 1 X Power cord
  • 1 X User manual
