HW81600


Multi-Function Video Display Processor Controller

Multi-Screen Processing | Picture-in-Picture (PIP) | Display Layer Scaling | Video Wall Layout Control


Products / Video Wall

Up to 16-Screen Splicing

Supports seamless display across up to 16 screens, allowing for large-scale video wall configurations.

Multiple Splicing Modes

Offers a variety of configurable splicing modes, enabling flexible display arrangements to suit diverse application requirements.

Up to 9-Window Split Screen

Enables simultaneous display of up to 9 windows on a single screen, maximizing monitoring and information integration efficiency.

Arbitrary Image Placement

Supports free placement of images anywhere on the screen, breaking free from traditional grid constraints for unlimited creative layout possibilities.

Individual Image Scaling

Each image can be independently scaled and resized to meet specific display needs, highlighting key information or creating visual depth.

Flexible Image Overlay

Supports layering of images with adjustable stacking order, creating rich visual effects such as picture-in-picture, information overlays, or multi-layered animations.

Mobile App Control

Enables easy adjustment of screen layouts via smartphone or tablet, providing real-time management of display content for an efficient and convenient user experience.

32 Scene Storage

Allows storage of up to 32 different video wall display configurations, including layout, image source, scaling, layering order, and other settings.

TAIWAN PANIO 8x16 Video Wall Processor|1080P@60Hz Multi-Screen Control|PIP/Layouts/Scrolling Text|Pro AV Matrix System
Feature

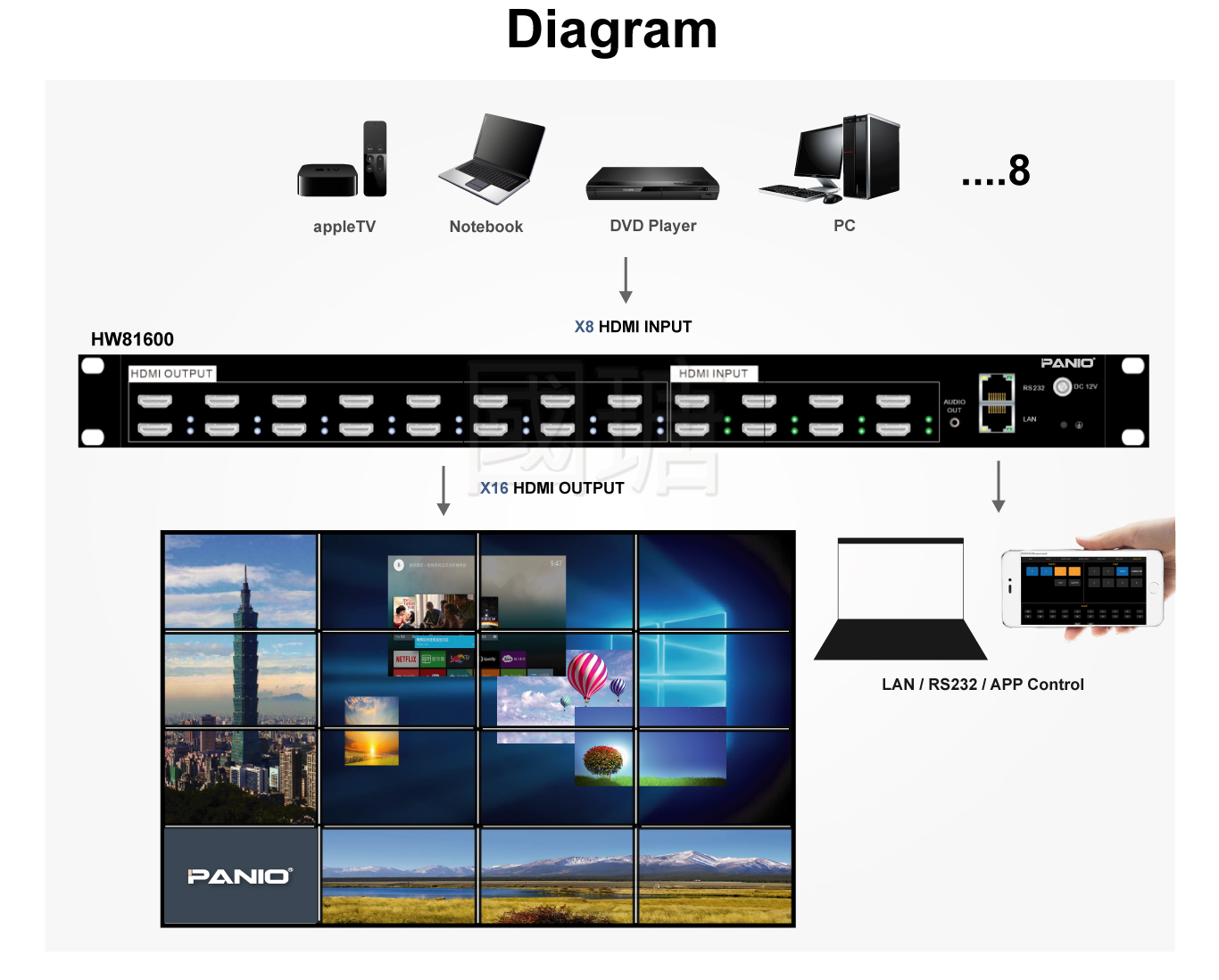

  • Supports 8 HDMI inputs and 16 HDMI outputs, with a maximum resolution of 1080P 60Hz.
  • Each screen can simultaneously display up to 9 independent windows, enabling versatile multi-window presentations that boost information monitoring and visual management efficiency.
  • Easily build vertical or horizontal video walls to suit various display sizes and aspect ratios, delivering optimal visual performance and immersive viewing experiences.
  • Equipped with state-of-the-art image processing, this solution supports multiple video wall setups—including small window displays, picture-in-picture, cross-screen display, as well as free drag-and-scale functionality—to meet complex video presentation needs.
  • Advanced settings and management can be conducted through PC control software. It features a built-in Web GUI control interface, supporting quick scene saving and recall for convenient operation.
  • 3.5mm audio de-embedding for easy connection to external audio systems.
  • Supports background image and scrolling text (marquee) functionality to enrich display content.
  • Audio de-embedding is supported with an independent 3.5mm audio output.
TAIWAN PANIO 4K

Specification

Model Name HW81600
Input Interface 8 x HDMI (Type A Female)
Output Interface 16 x HDMI (Type A Female), 1 x 3.5mm Audio Out
Supported Resolutions (Input) 720p, 1080p 30/50/60Hz
Supported Resolutions (Output) 1080p 60Hz
HDMI Pixel Clock 340MHz, Full Digital Signal Processing
HDMI Bandwidth Total Bandwidth 10.2Gbps
Audio Format 44.1KHz, 48KHz, 96KHz, 176KHz, 192KHz
HDMI Cable Length Limit 5 Meters Max. on both Input and Output. For Longer Distances, HDMI Extenders are Recommended.
Control Interface 1 x RJ-45, 1 x RS-232
Control Method Software Setting, Web GUI, RS-232 Commands, and APP Control
Power Supply AC 110V-240V 50/60Hz DC: 12V 5A
Power Consumption 25W (Max)
Dimensions (WxDxH) 482 x 255 x 55mm

Note:

  • Utilize certified cables for signal connections.
  • It is not recommended to use uncertified daisy-chain, switching, distribution, or conversion devices, as they may compromise signal stability.
  • To ensure stable device operation, use the original manufacturer's power cord.
  • If you need to use the device in conjunction with other equipment, please inform us in advance to avoid compatibility issues.

Package Contents

  • 1 X HW81600
  • 1 X 12V 5A adapter
  • 1 X User manual
