4K 60Hz DP/KVM 150M HDBaseT Extender

HDBaseT Technology ‧ 4K@60Hz 100m ‧ 1080p 150m ‧ Bi-directional POC


Products / DP KVM Extender

Ultra HD Long-Distance Transmission

Extends 4K@60Hz YUV 4:4:4 signals up to 100m (328ft) and 1080P@60Hz signals up to 150m (492ft) via a single CAT6 cable.

Full KVM Functionality

Enables complete control of a DisplayPort PC from a remote location using keyboard and mouse via USB 1.1 connectivity.

Bi-directional Power over Cable (POC)

Supports power delivery over the CAT6 cable, allowing either the transmitter or receiver to be powered while the other draws power.

Advanced EDID Management

Features an EDID DIP switch with COPY mode to replicate display EDID or STD mode for default 1080P settings.

Professional Control Integration

Supports bi-directional IR pass-through (20K-60KHz) and RS-232 for integration with professional control systems.

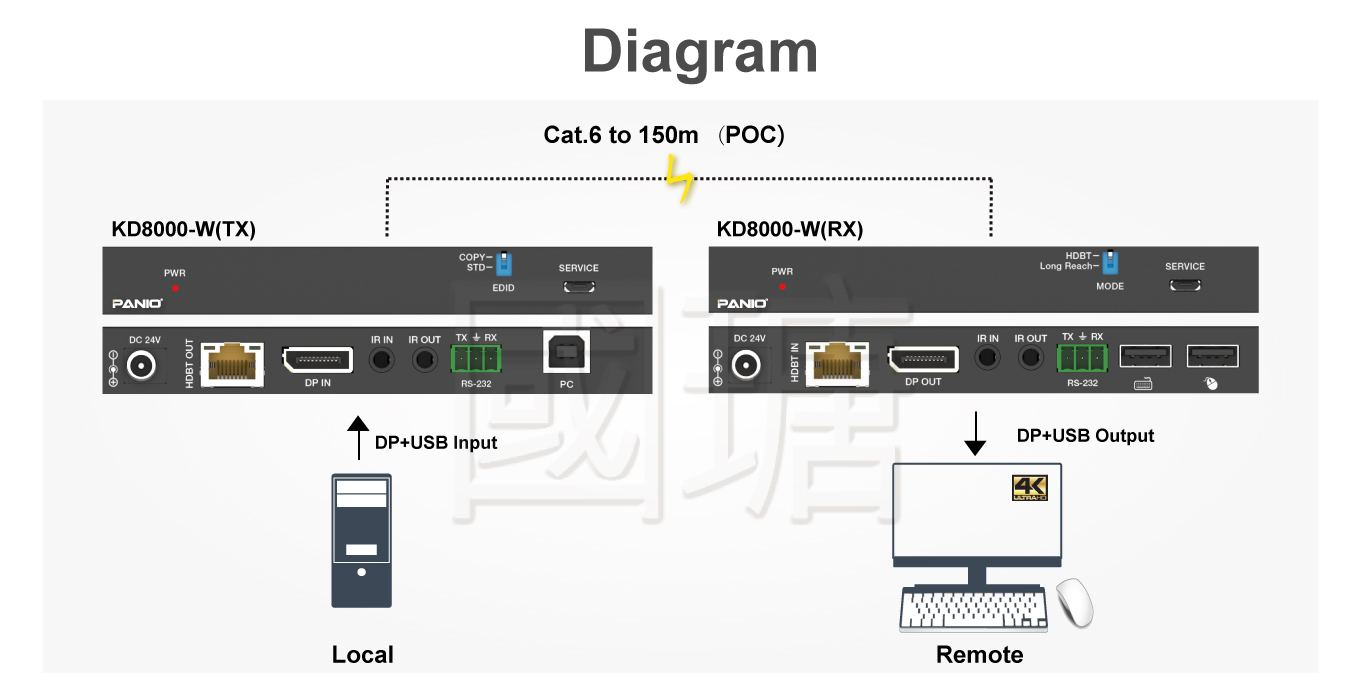

Schematic diagram

KD8000_W 4K DP KVM Extender schematic diagram
Feature
  • Compliant with DisplayPort 1.2a and HDCP 2.2 standards.
  • Supports resolutions up to 4K@60Hz YUV 4:4:4.
  • 21.6Gbps video bandwidth for high-quality signal.
  • Compatible with HDR, HDR10, HDR10+, Dolby Vision, and HLG.
  • Premium audio: LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH, and DTS-HD Master 7.1CH.
  • Compact metal housing for efficient heat dissipation and EMI/RFI shielding.
  • ESD protection rated at ±8kV (air) and ±4kV (contact).

Specification

ResolutionUp to 4K@60Hz YUV 4:4:4
Transmission Distance4K@60Hz: 100m; 1080P@60Hz: 150m (CAT6)
ComplianceDisplayPort 1.2a / HDCP 2.2
Audio FormatsLPCM 2.0, Dolby Digital Plus 5.1CH, DTS-HD Master 7.1CH
Port ConfigurationDP, HDBT, IR, RS-232, USB (B-type TX / A-type RX)
Power SupplyDC 24V / 1A (Locking Connector)
Dimensions140 (W) x 65 (D) x 18 (H) mm

Note:

  • Use high-quality UTP CAT6 or better cables with T568B standard.
  • Power only one unit; do not use two power supplies simultaneously.
  • Ensure adequate ventilation to prevent overheating.
  • RS-232 cable length should not exceed 15m (49ft).

Package Contents

  • 1 × KD8000_W Transmitter & 1 × Receiver
  • 1 × 24V/1A Locking Power Supply
  • 1 × IR Blaster & 1 × IR Wideband Receiver Cable
  • 1 × USB 2.0 Cable (USB-A to USB-B)
  • 2 × 3-pin Phoenix Connectors
  • 4 × Mounting Ears & 8 × Machine Screws
