KD8100F_W


4K 60Hz DP KVM Fiber Extender

10km Range • 4K@60Hz 4:4:4 • DP 1.4a & HDCP 2.3 • USB KVM Control


Products / KVM Extender

Ultra HD Long-Distance Transmission

The KD8100F_W extends 4K@60Hz 4:4:4 signals up to 10km via a single-mode fiber cable or up to 300m via multi-mode OM4 fiber, maintaining pristine signal quality for professional AV installations.

Comprehensive Standard Compliance

Fully compliant with DisplayPort 1.4a and HDCP 2.3/2.2/1.x standards, ensuring seamless compatibility with modern high-resolution sources and secure content protection.

Versatile Monitoring & Audio

Includes an HDMI loop output on the transmitter for local display monitoring and dedicated audio de-embedding via a 3.5mm jack on the receiver for external speaker systems.

Full KVM Functionality

Supports complete remote control of a DisplayPort-equipped PC using a keyboard and mouse via USB 1.1, ideal for securing equipment in server rooms while maintaining user access.

Robust Industrial Construction

Features a high-quality metal housing with excellent EMI/RFI shielding and ESD protection, designed for reliable 24/7 operation in demanding environments like control rooms and medical facilities.

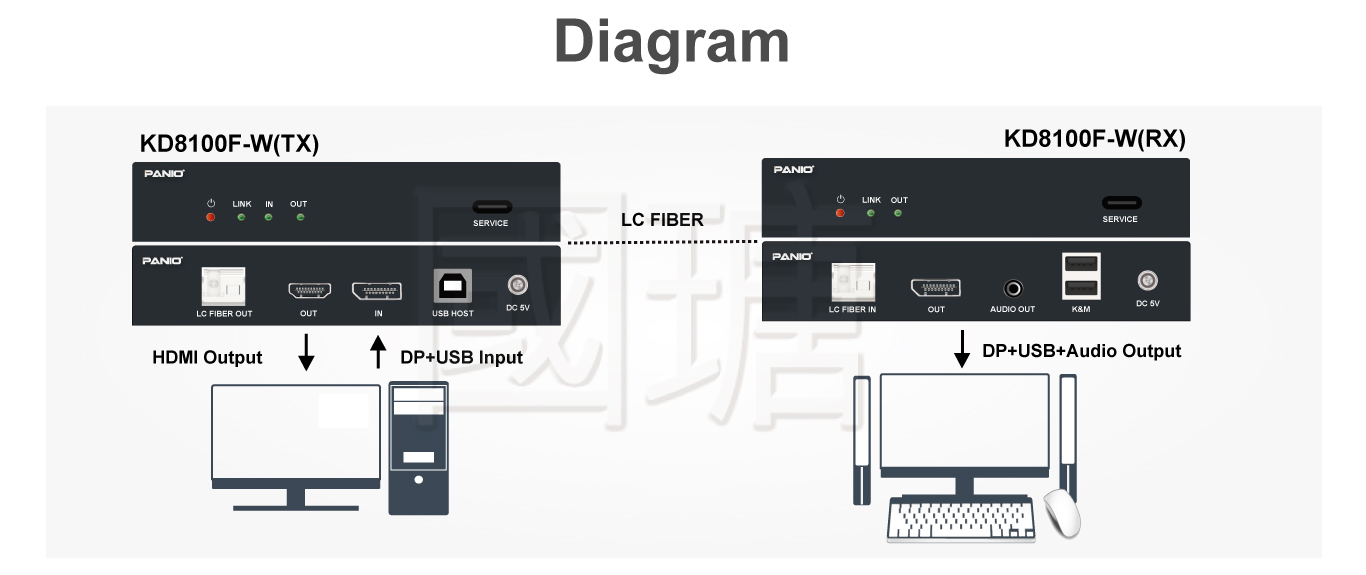

Schematic diagram

KD8100F_W 4K DP KVM Fiber Extender Diagram
Feature
  • Supports DisplayPort 1.4a and HDCP 2.3/2.2/1.x.
  • Resolution up to 4K2K@60Hz 4:4:4.
  • Video bandwidth supports HBR3, HBR2, HBR, and RBR.
  • Transmission up to 10km (Single-mode) / 300m (Multi-mode OM4).
  • USB KVM: Remote keyboard & mouse control.
  • HDMI loop out on TX and 3.5mm audio de-embedding on RX.
  • Metal housing with advanced ESD protection (±8kV Air/±4kV Contact).

Specification

ResolutionUp to 4096x2160 @60Hz 4:4:4
Audio FormatLPCM 7.1, Dolby True HD, DTS-HD Master Audio, etc.
Max Distance10km (Single-mode) / 300m (Multi-mode OM4)
Transmission Medium10G SFP+ Fiber Module (LC Connector)
Power SupplyDC 5V / 2A (AC 100–240V)
Operating Temperature0°C to +40°C
Dimensions120 × 78 × 24.5 mm

Note:

  • Use compatible fiber cables (Single-mode for 10km).
  • Ensure high-quality DP and HDMI cables for 4K60 signal integrity.
  • Maintain 5cm clearance around units for heat dissipation.
  • Discharge static electricity before handling the equipment.

Package Contents

  • 1 × KD8100F_W Transmitter (TX)
  • 1 × KD8100F_W Receiver (RX)
  • 2 × 5V/2A Multinational Power Supplies
  • 1 × USB Cable (Type A to Type B, 1.5m)
  • 4 × Mounting Ears & 8 × Screws
  • 1 × User Manual
