KH5000


4K KVM Network & Fiber Optic Extender

Supports USB 2.0 Hub, Audio & Microphone, RS-232, IR, and PoE


Products / KVM Extender

Network Redundancy

Supports transmission distances of up to 150 meters over standard network cable and extends to 80 kilometers with fiber optic connectivity.

USB2.0 Hub

Supports a built-in USB 2.0 hub for connecting various peripheral devices, including printers, touchscreens, and more.

4K Resolution

Supports up to 3840×2160 @30Hz resolution.

Distributed Remote Control

Supports 1-to-1 and 1-to-many remote control functionality via network switches.

PoE Power Supply

Supports PoE (Power over Ethernet), ideal for environments where traditional power sources are unavailable.

Safe Mode Selection

When multiple keyboards and mice are connected, the operator must press the switching safety button to prevent operational conflicts.

Separate Audio Output

Supports external speaker connectivity through the receiver, delivering a customizable audio experience.

4K KVM network cable + fiber optic extender
4K KVM network cable + fiber optic extender
Feature

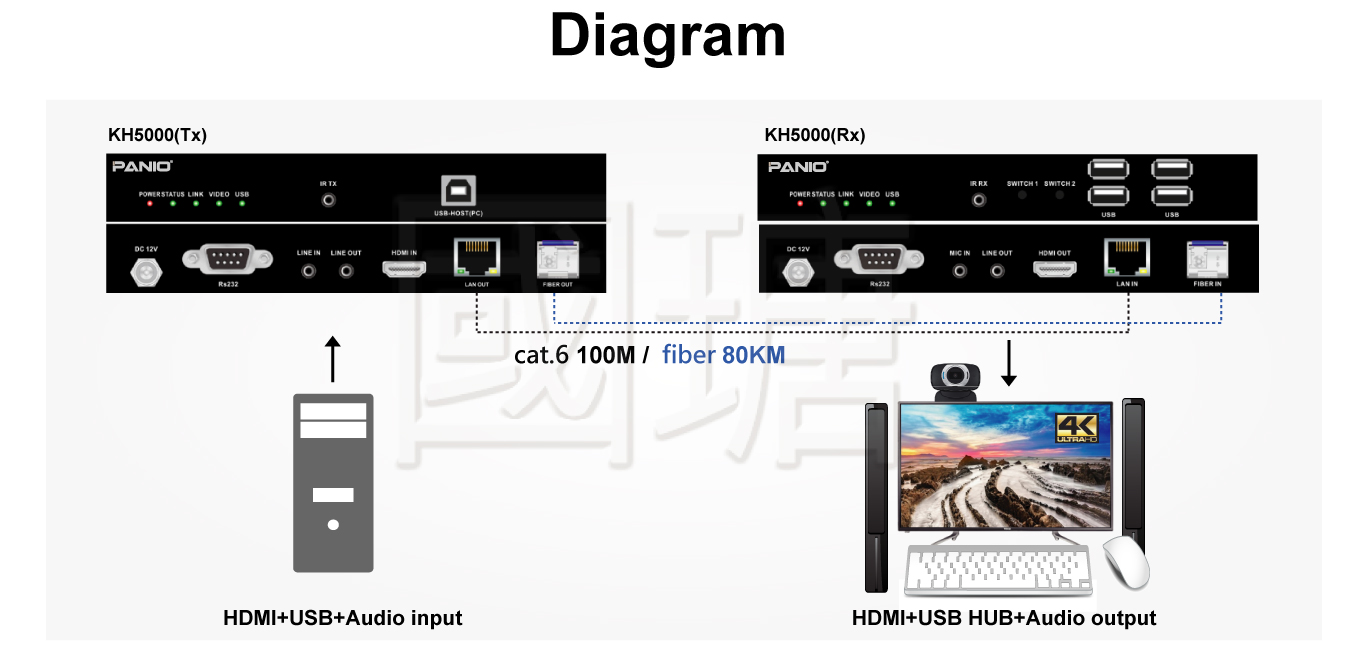

  • Extends 4K HDMI video, USB 2.0 peripherals, audio, RS-232, and IR signals over network cable or fiber optic cable.
  • Supports transmission distances of up to 150 meters via network cable and up to 80 kilometers via fiber optic cable.

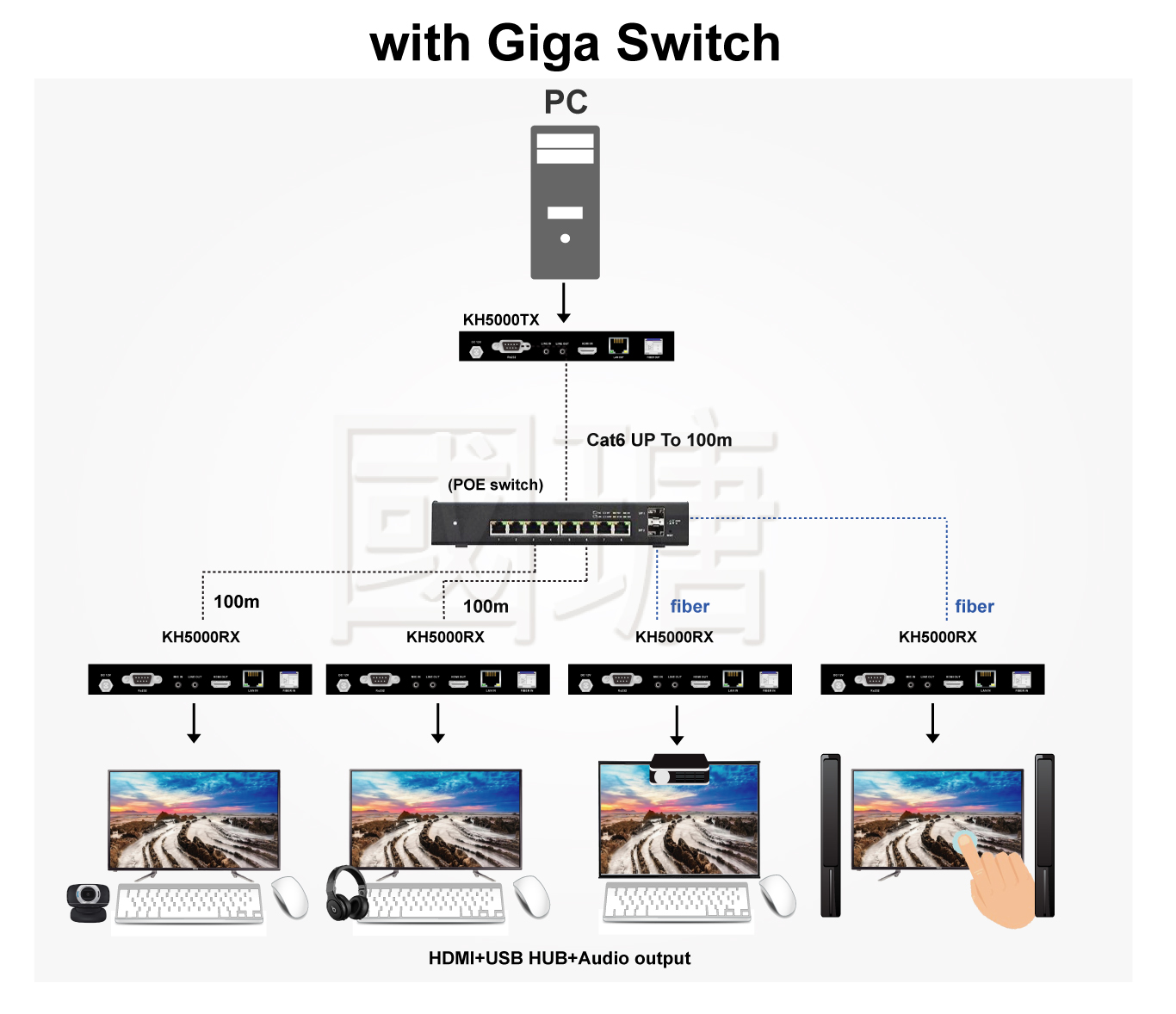

  • Connect one PC to multiple consoles via a Gigabit network switch for flexible multi-display setups.
  • The receiver features a built-in USB 2.0 hub, supporting up to 4 USB peripheral devices such as printers, touchscreens, and more.
  • In multi-keyboard/mouse setups, operators must activate the safety switch to transition control, preventing operational conflicts between multiple devices.
  • The system prioritizes the first connected line (network cable or fiber optic) for signal transmission. If the primary line is disconnected, the signal will switch to the secondary line after a brief 10 second delay, ensuring uninterrupted operation.
  • The transmitter and receiver are powered via PoE, eliminating the need for external power adapters and simplifying installation.
PANIO 4K

Specification

Model Name KH5000
Transmitter interface 1 x HDMI, 1 x USB (Type-B), 1 x LC single core single mode module included, 1 x RJ-45, 2 x 3.5mm, IRx1, 1 x RS-232
Receiver interface 1 x HDMI, 4 x USB( Type-A), 1 x LC single core single mode module included, 1 x RJ-45, 2 x 3.5mm, IRx1, 1 x RS-232
Input resolution 4K 30Hz/ 1080p 60Hz/ 1080p 50Hz/ 1080p 30Hz/ 720p 50Hz/ 720p 60Hz
Extended distance Point to point: Up to 150m through CAT5e/CAT6, Through included modules Up to 10Km.
HDMI cable length The combined length of the input source and output HDMI cables must be less than 10 meters.
Power supply DC 12V 1.5A Transmitter/ Receiver
Dimensions 125 x 83 x 25mm ( LxWxH ) Transmitter/ Receiver

Note:

  • For optimal performance, please use 4K-certified cables to connect the signal.
  • The use of switchers, distributors, and converters is not recommended, as they may affect performance and compatibility.
  • To maintain quality and stability, always use the original certified power cord.
  • If integration with other devices is required, please inform us in advance to prevent potential compatibility issues.

Package Contents

  • 1 X KH5000 Transmitter
  • 1 X KH5000 Receiver
  • 2 X DC 12V 1.5A
  • 1 X USB2.0 Cable
  • 1 X User manual
