4K60Hz KVM AV over IP Fiber & LAN Extender

Many-to-Many Signal Transmission • HDMI 2.0 • USB 2.0 • PoE/Poc • RS232 • IR

KH5500

Products / HDMI Extenders / KVM Fiber & Network Extenders

Professional 4K60Hz KVM AV over IP Transmission

KH5500 is a high-performance long-distance AV transmission system designed for large-scale commercial displays, enterprise command centers, education institutions and remote monitoring. It integrates a transmitter and receiver architecture, supporting both Cat5e/Cat6 network cable and single-core single-mode LC fiber transmission.

4K Ultra HD AV over IP Transmission

KH5500 supports up to 4K@60Hz (4:4:4) with HDMI 2.0 and HDCP 2.2 compliance, while remaining backward compatible with common lower resolutions. It provides stable, high-quality AV over IP transmission with clear images, accurate color performance, and HDR compatibility.

Dual Transmission Media for Flexible Deployment

Supports transmission up to 150 meters over Cat5e/Cat6 network cable and up to 80 kilometers over single-core single-mode LC fiber, with a 20km optical module as standard. This flexible architecture makes deployment easier across short, medium and ultra-long distance applications.

KVM Control & Full-Featured USB 2.0 Extension

Users can remotely control the source device from the receiver side through keyboard and mouse, while also extending USB 2.0 peripherals such as flash drives, USB cameras and USB headsets. This makes KH5500 suitable for control rooms, education and remote operating environments.

PoE, PoC, Audio, IR and RS232 Integration

KH5500 supports PoE (802.3AF), PoC (Power over Cable) and DC 12V power input, along with HDMI audio pass-through, 3.5mm audio extraction, infrared extension and bidirectional RS232 serial communication. One platform handles video, control, audio and power transmission together for simplified installation.

Many-to-Many Signal Transmission

Connecting multiple transmitters and receivers on a single network segment enables flexible many-to-many signal transmission.

Engineered for 24/7 Mission-Critical Operation

With a professional metal enclosure, strong heat dissipation and DIP-switch pairing architecture, KH5500 is built for stable signal transport and long-term 7×24 continuous operation in demanding environments.

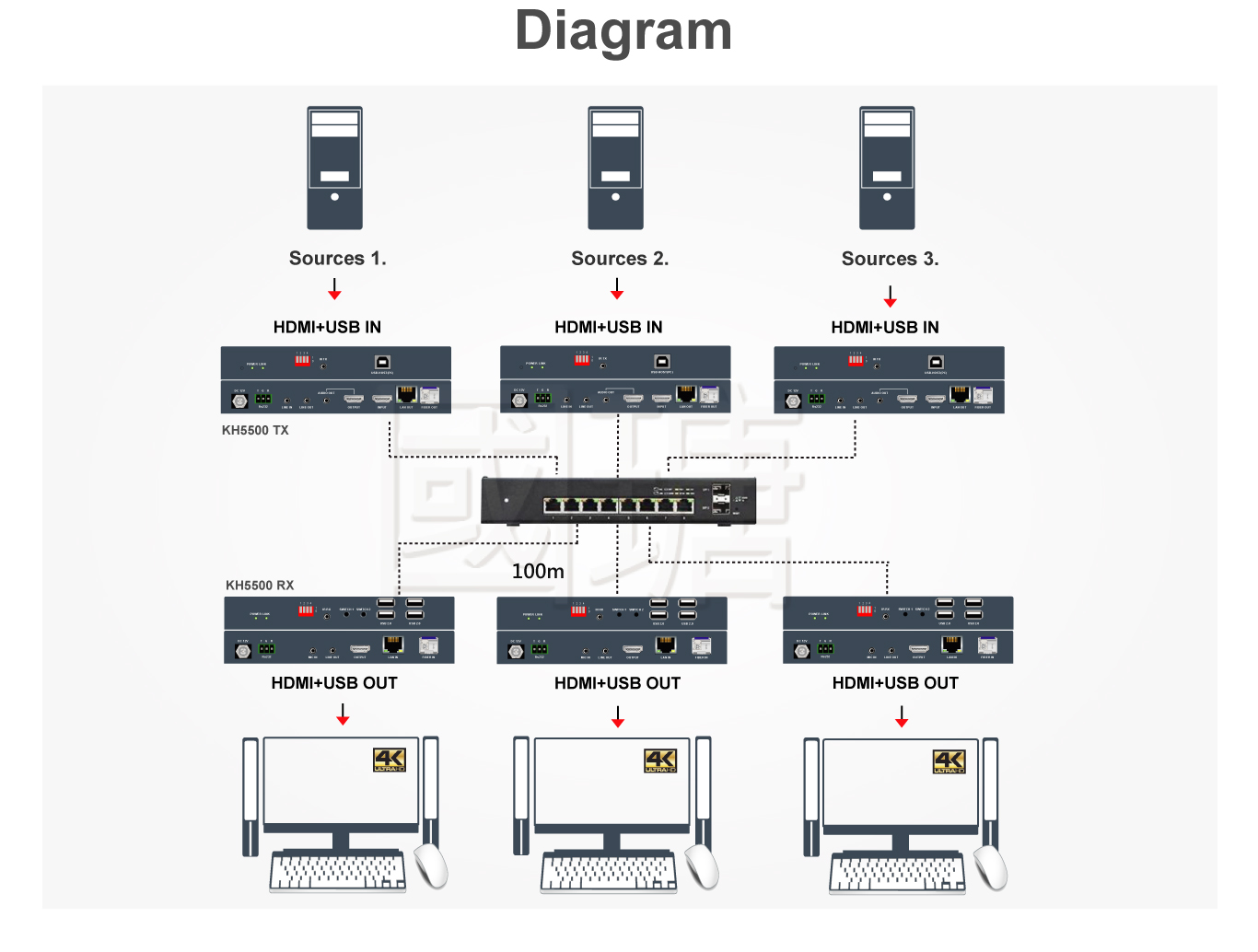

Many-to-Many Signal Transmission
System Advantages
  • 4K60Hz 4:4:4 AV over IP Transmission: Delivers stable, high-quality ultra-high-definition video with sharp image clarity and accurate color performance.
  • Network Cable & Fiber Dual Media: Up to 150m over Cat5e/Cat6 and up to 80km over single-core single-mode LC fiber for versatile deployment.
  • Remote KVM & USB 2.0 Extension: Supports keyboard, mouse and full USB 2.0 peripheral extension for interactive control and data access.
  • Flexible PoE and PoC Deployment: Supports many-to-many connectivity with PoE, as well as one-to-one transmission with PoC, offering greater installation flexibility while reducing cabling complexity and optimizing system deployment.
  • Integrated Audio / IR / RS232: Supports HDMI audio, 3.5mm audio I/O, infrared extension and bidirectional RS232 serial communication.
  • Many-to-Many Signal Transmission: Connecting multiple transmitters and receivers on a single network segment enables flexible many-to-many signal transmission.

Specification

KH5500 Parameter Details
Compatible Standards HDMI 2.0, HDCP 2.2, PoE (802.3AF)
Video Resolution Maximum 4K@60Hz (4:4:4), backward compatible with 4K@30Hz, 1080p@60/50/30Hz, 720p@50/60Hz and 480p@60Hz
Transmission Distance Up to 150m via Cat5e/Cat6 network cable; up to 80km via single-core single-mode LC fiber (20km optical module as standard)
HDR Support HDR support (optional)
Audio Formats 2.1CH / 5.1CH / 7.1CH, DTS, Dolby, with 3.5mm audio input/output interfaces
Transmitter (Tx) Ports 1× HDMI IN, 1× HDMI LOOP OUT, 1× RJ45 LAN OUT, 1× SFP Fiber OUT, 1× USB-HOST (PC), 1× 3.5mm AUDIO IN, 1× 3.5mm AUDIO OUT, 1× RS232, 1× IR-TX, 1× DC 12V input
Receiver (Rx) Ports 1× RJ45 LAN IN, 1× SFP Fiber IN, 1× HDMI OUT, 4× USB 2.0, 1× 3.5mm AUDIO IN, 1× 3.5mm AUDIO OUT, 1× RS232, 1× IR-RX, 1× DC 12V input
Power Supply PoE (802.3AF), PoC, or DC 12V / 1.5A
Power Consumption Transmitter: 6.18W; Receiver: 5.79W; T+R (Rx POC): 15.46W
Pairing & EDID 4PIN DIP pairing switches (Tx/Rx must match); supports EDID management for compatibility between source and display devices
Dimensions & Weight 175 × 100.5 × 25 mm; Tx weight: 0.52kg; Rx weight: 0.52kg
Environment Parameters Operating Temperature: 0°C ~ 40°C / Operating Humidity: 20% ~ 90% RH (non-condensing)

Application Scenarios

  • Commercial display spaces, exhibition halls, department store counters and brand experience stores.
  • Enterprise command centers and conference rooms requiring real-time signal distribution and remote collaboration.
  • Education institutions that need interactive teaching with multi-screen content sharing and USB device support.
  • Remote monitoring centers, clinics and small hospitals for live image and inspection data transmission.
  • Large-scale venues, shopping malls and transportation hubs for long-distance public information and advertisement display.
  • Remote office and industrial control environments demanding long-distance equipment operation and stable data transmission.

Package Contents

  • 1 × KH5500-Tx Transmitter Host
  • 1 × KH5500-Rx Receiver Host
  • 1 × 12V / 1.5A Power Adapter
  • 1 × IR Transmitter Cable
  • 1 × IR Receiver Cable
  • 1 × 1.5m USB Type-A to Type-B Cable
  • 1 × Mounting Ear Kit
  • 1 × Multilingual User Manual
