Professional 4K60 HDMI over IP Extender with USB 2.0
4K60 4:4:4 | 18Gbps HDMI 2.0b | USB 2.0 | Bi-Directional IR | 100m CAT5e/6
KH5600_W
Products / HDMI over IP Extender
Key Features
True 4K60 4:4:4 Extension
Supports video resolutions up to 4K2K@50/60Hz 4:4:4 with HDMI 2.0b compliance and 18Gbps video bandwidth for premium UHD signal distribution.
HDMI over IP via 1G Network
Uses standard JPEG2000 encoding and decoding to distribute one UHD source to one display or to multiple displays through a standard 1G network switch.
100m CAT5e/6 Transmission
Extends HDMI, USB, and IR signals up to 100m / 328ft between encoder and decoder over a single CAT5e/6 cable.
USB 2.0 Extension
Integrated USB 2.0 transmission up to 480Mbps allows keyboards, mice, cameras, U disks, and other USB peripherals to be used at the remote display side.
HDR & Premium Audio Pass-Through
Supports HDR10, HDR10+, Dolby Vision, HLG, LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
Bi-Directional IR Control
Built-in wideband IR pass-through enables remote control signals to travel in both directions between the source and display locations.
Why Choose KH5600_W?
▸ Professional AV-over-IP Architecture
Designed for flexible one-to-one and one-to-many HDMI distribution over standard 1G networking, ideal for scalable professional AV installations.
▸ HDCP 2.3 / 2.2 / 1.x Compliance
Supports current and legacy HDCP versions, helping integrators maintain compatibility with modern media sources and UHD display devices.
▸ Analog Audio De-Embedding
The decoder includes a 3.5mm analog audio output for PCM 2.0 audio, simplifying connection to local speakers or audio systems.
▸ Easy Switch Deployment
For systems using only KH5600_W units, configure the switch jumbo frame to 1600 or higher. VLAN isolation is recommended when other devices share the same switch.
▸ API Command Support
SERVICE port command control supports status query, reboot, reset, firmware version query, stream type selection, link channel selection, and MAC address configuration.
▸ Compact Metal Enclosure
Durable black metal housing with mounting ears included, suitable for professional rack, cabinet, desk, and behind-display installation.
Detailed Specifications
- 4K60 HDMI over IP extender kit including one encoder and one decoder for professional UHD signal extension and distribution.
- Standard JPEG2000 encoding / decoding supports configurable high-quality video over a standard 1G network switch.

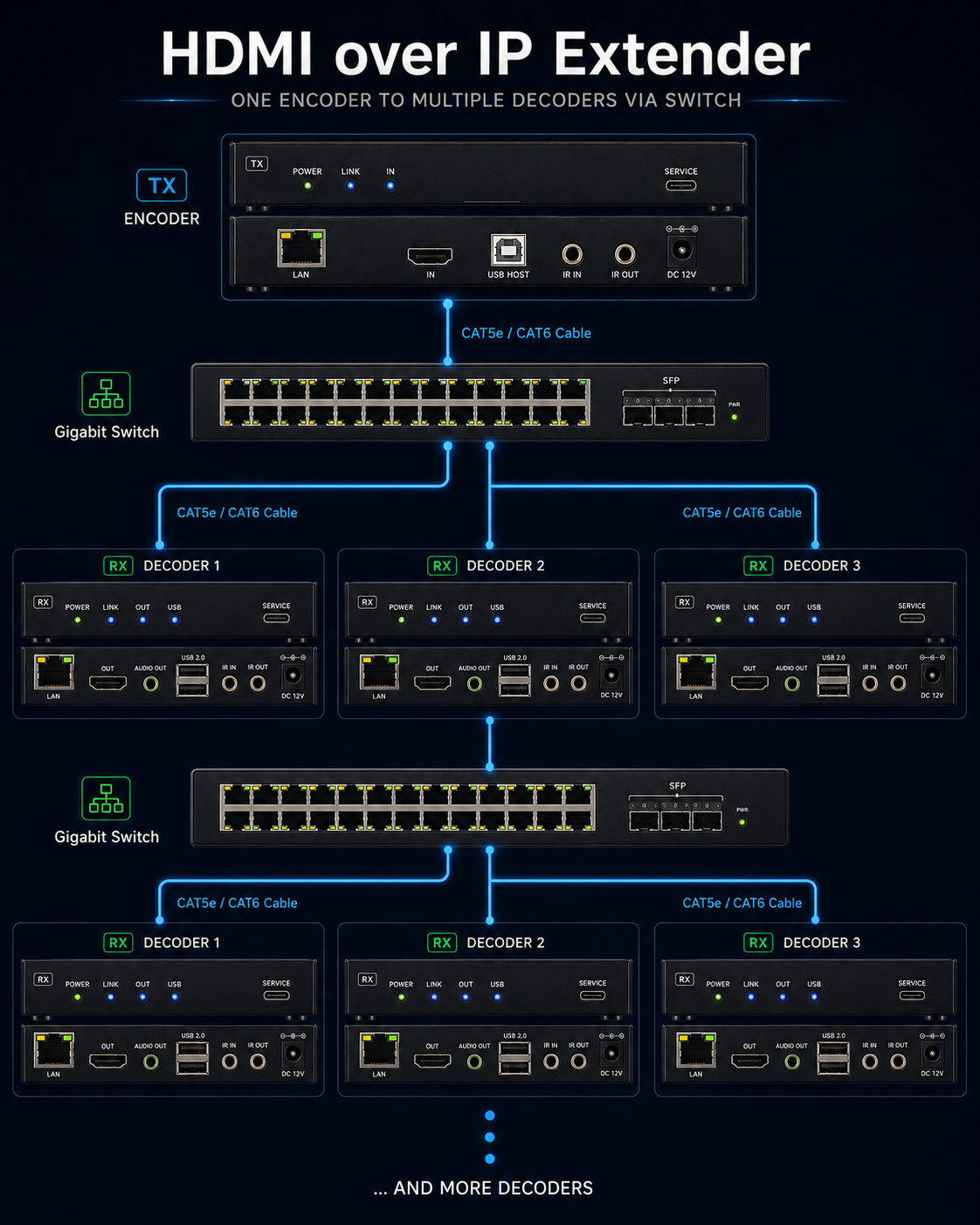

- Supports one-to-one and one-to-many distribution; one encoder can connect to multiple decoders through a compatible network switch.
- HDMI 2.0b and HDCP 2.3 / 2.2 / 1.x compliant with video bandwidth up to 18Gbps.
- Supports up to 4K2K@50/60Hz 4:4:4, plus common HDTV and PC resolutions including 1080p60 and 1920×1200@60RB.
- HDR pass-through includes HDR10, HDR10+, Dolby Vision, and HLG.
- HDMI audio pass-through supports LPCM 7.1CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X.
- USB 2.0 extension supports up to 480Mbps. The encoder provides a USB-B host port; the decoder provides four USB-A device ports.
- Bi-directional wideband IR transmission supports 20K–60KHz IR frequency for flexible source-side or display-side control.
- Decoder analog audio output supports unbalanced PCM 2.0 audio with a maximum output level of 2Vrms.
- Transmission distance is up to 100m / 328ft over CAT5e/6 cable between encoder and decoder.
- API command control is available through the USB-C SERVICE port with default serial settings of 115200 baud, 8 data bits, 1 stop bit, and no parity.
- Compact encoder / decoder enclosure: 142mm × 125.5mm × 26.5mm, with mounting ears and locking power supplies included.
Ideal Applications
KH5600_W delivers a reliable 4K HDMI, USB, and IR extension platform for professional AV/IT environments that require long-distance UHD signal routing over structured cabling.
Meeting Rooms & Collaboration
Extend a PC or media source to a remote UHD display while keeping USB peripherals available at the meeting table or display location.
Digital Signage
Distribute one 4K source to multiple displays through a 1G network switch for retail, lobby, campus, and public display systems.
Classrooms & Training Rooms
Send UHD content from the instructor station to remote displays or projectors while maintaining USB and IR control paths.
Control Rooms
Extend high-resolution operator displays and USB input devices across equipment racks, desks, and monitoring positions.
Healthcare & Medical Imaging
Provide long-distance UHD video extension for diagnostic displays, consultation rooms, and medical AV systems.
Broadcast & Production
Connect source equipment, monitoring displays, and USB peripherals across studios, editing rooms, and production workspaces.
Technical Specifications
| Specification | KH5600_W |
|---|---|
| Model | KH5600_W |
| Product Type | 4K60 HDMI over IP Extender with USB 2.0 via CAT 100m |
| System Units | Encoder + Decoder |
| Video Coding | Standard JPEG2000 encoding / decoding |
| Network Architecture | One-to-one or one-to-many over standard 1G network switch |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 / 2.2 / 1.x |
| Video Bandwidth | 18 Gbps |
| USB Bandwidth | 480 Mbps |
| Network Bandwidth | 1000 Mbps |
| Video Resolution | 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60, 1080p24/25/30/50/60, 4K2K24/25/30, 4K2K50/60 4:2:0, 4K2K50/60 4:4:4, 640×480@60, 1024×768@60, 1280×768@60, 1280×800@60, 1280×1024@60, 1360×768@60, 1440×900@60, 1680×1050@60, 1920×1200@60RB |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8 / 10 / 12-bit; 8-bit for 4K60Hz 4:4:4 |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Audio Format | HDMI Audio: LPCM 7.1CH, Dolby 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X; Analog Audio: PCM 2.0 |
| IR Level | 5 Vp-p |
| IR Frequency | Wideband 20K–60KHz |
| Transmission Distance | Up to 100m / 328ft over CAT5e/6 cable |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap discharge & ±4kV contact discharge |

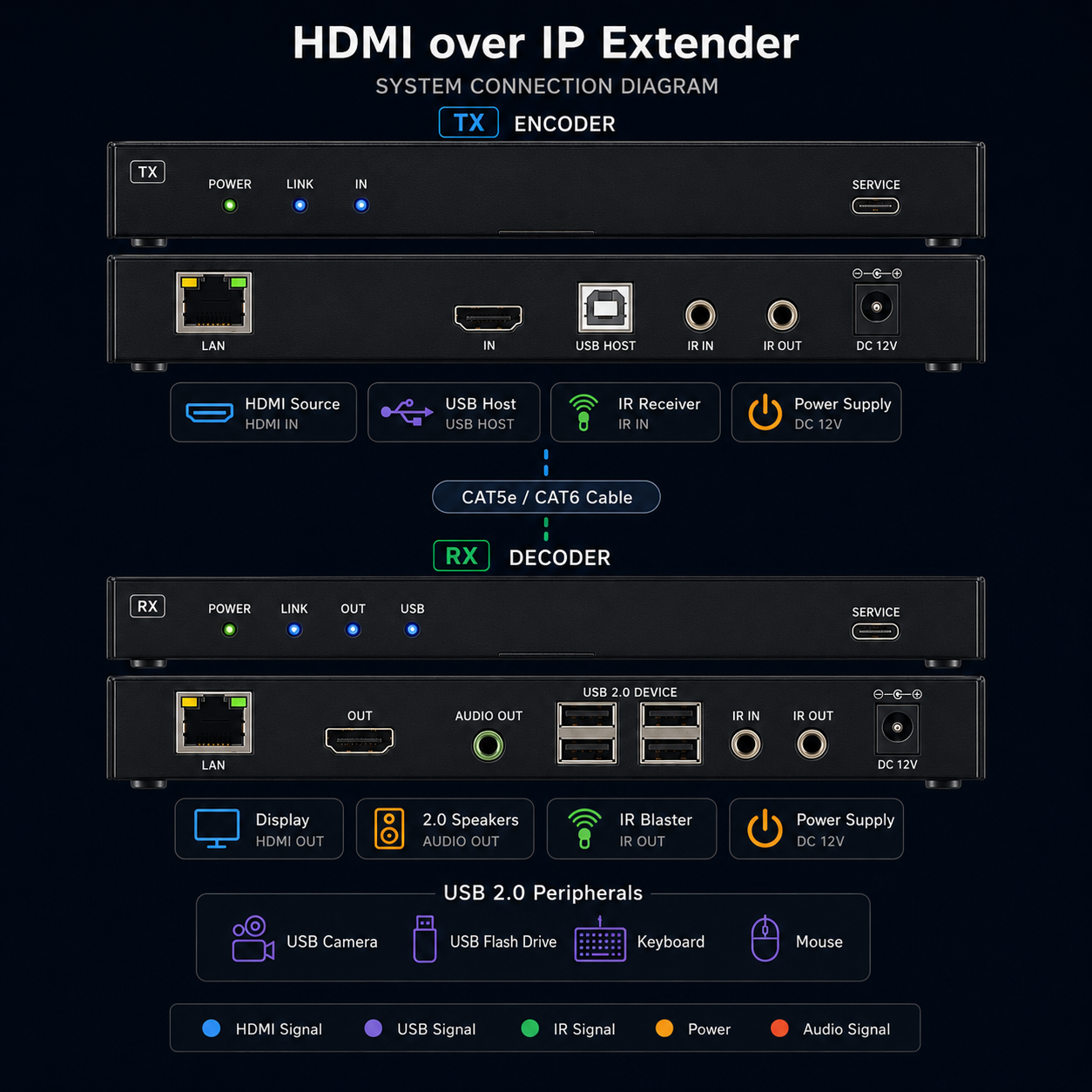

| Encoder Ports | Input: 1 × HDMI IN; Output: 1 × LAN RJ45; Control: 1 × USB HOST USB-B, 1 × IR IN, 1 × IR OUT, 1 × SERVICE USB-C |
| Decoder Ports | Input: 1 × LAN RJ45; Output: 1 × HDMI OUT, 1 × AUDIO OUT 3.5mm; Control: 4 × USB 2.0 DEVICE USB-A, 1 × IR IN, 1 × IR OUT, 1 × SERVICE USB-C |
| Analog Audio Output | Unbalanced audio output, maximum 2Vrms, PCM 2.0 |
| API / Serial Protocol | Baud rate 115200 default, 8 data bits, 1 stop bit, no parity |
| Switch Requirement | Jumbo frame ≥1600; use VLAN isolation when other devices share the same switch; one encoder supported in one switch system |
| Housing | Metal enclosure |
| Color | Black |
| Dimensions (W×D×H) | Encoder / Decoder: 142mm × 125.5mm × 26.5mm |
| Weight | Encoder: 515g; Decoder: 512g |
| Power Supply | Input: AC 100–240V 50/60Hz; Output: DC 12V/1A |
| Power Consumption | Encoder: 5.59W; Decoder: 17.58W |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 20% – 80% RH, non-condensing |
| Storage Humidity | 10% – 90% RH, non-condensing |
⚠ Deployment Notes
- Use a surge protection device to protect the product from electrical spikes, surges, electric shock, and lightning-related damage.
- Use direct interconnection network cable wiring. Do not cross-connect the CAT cable.
- For direct connection, connect the encoder LAN port to the decoder LAN port with CAT5e/6 cable.
- For one-to-many distribution through a switch, configure switch jumbo frame to 1600 or higher.
- If other devices are connected to the same switch, isolate the HDMI-over-IP devices through VLAN division.
- Only one encoder is supported in one switch system.
- Use the decoder USB button to select USB 2.0 device transmission when one encoder is connected to multiple decoders.
📦 Package Contents
- KH5600_W 4K60 HDMI over IP CAT Extender Encoder × 1
- KH5600_W 4K60 HDMI over IP CAT Extender Decoder × 1
- IR Blaster Cable (1.5m) × 1
- IR Wideband Receiver Cable (1.5m) × 1
- USB Cable, USB Type-A to Type-B (1.5m) × 1
- 12V/1A Locking Power Supply × 2
- Mounting Ear × 4
- Machine Screw × 8
- User Manual × 1
