KH6000


Multi-in and multi-out remote KVM multi-computer manager

Support HDMI+USB mouse and keyboard+RS-232+IR signal


Products / KVM Switch

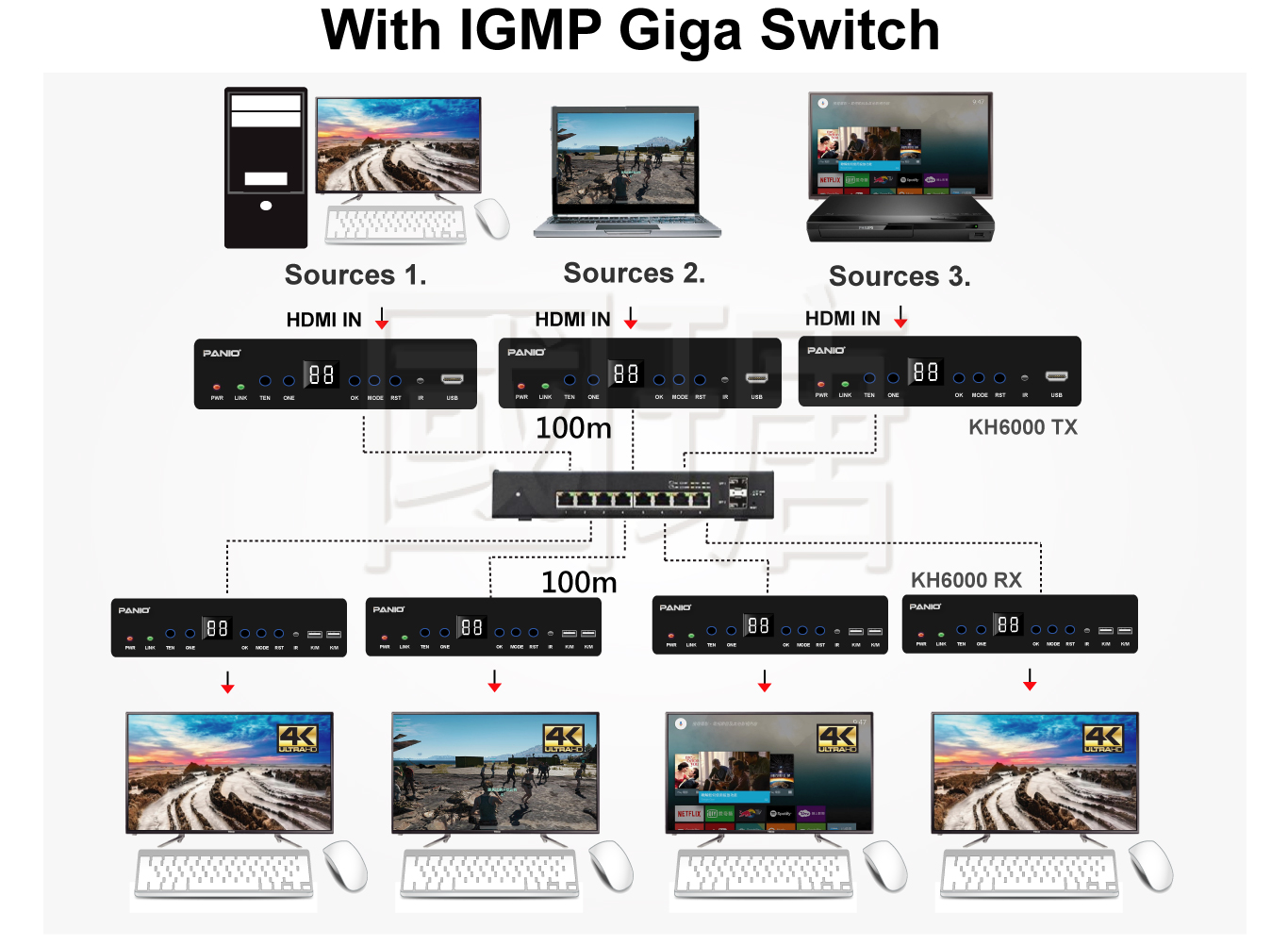

Matrix many-to-many remote control

Use IGMP Giga network switch to construct multiple sets of console remote crossover matrix to control multiple computers.

1-to-many remote control

Using the IGMP Giga network switch, construct a set of consoles to remotely control multiple computers.

Many-to-1 remote control

Using IGMP Giga network switch, build multiple sets of consoles to remotely control one computer.

Network switch transmission

It can be expanded to multiple input and multiple output through IGMP Giga Switch network switch.

Remote control switch

Support remote control to easily switch between different computer operations through the remote control.

Elastic scalability

When you need to expand the equipment, you only need to buy the computer terminal or the receiving terminal, which is economical and convenient.

Distributed remote control

Solve the problem that the computer or the control terminal is scattered everywhere and cannot be managed centrally.

Matrix KVM Switch
Feature

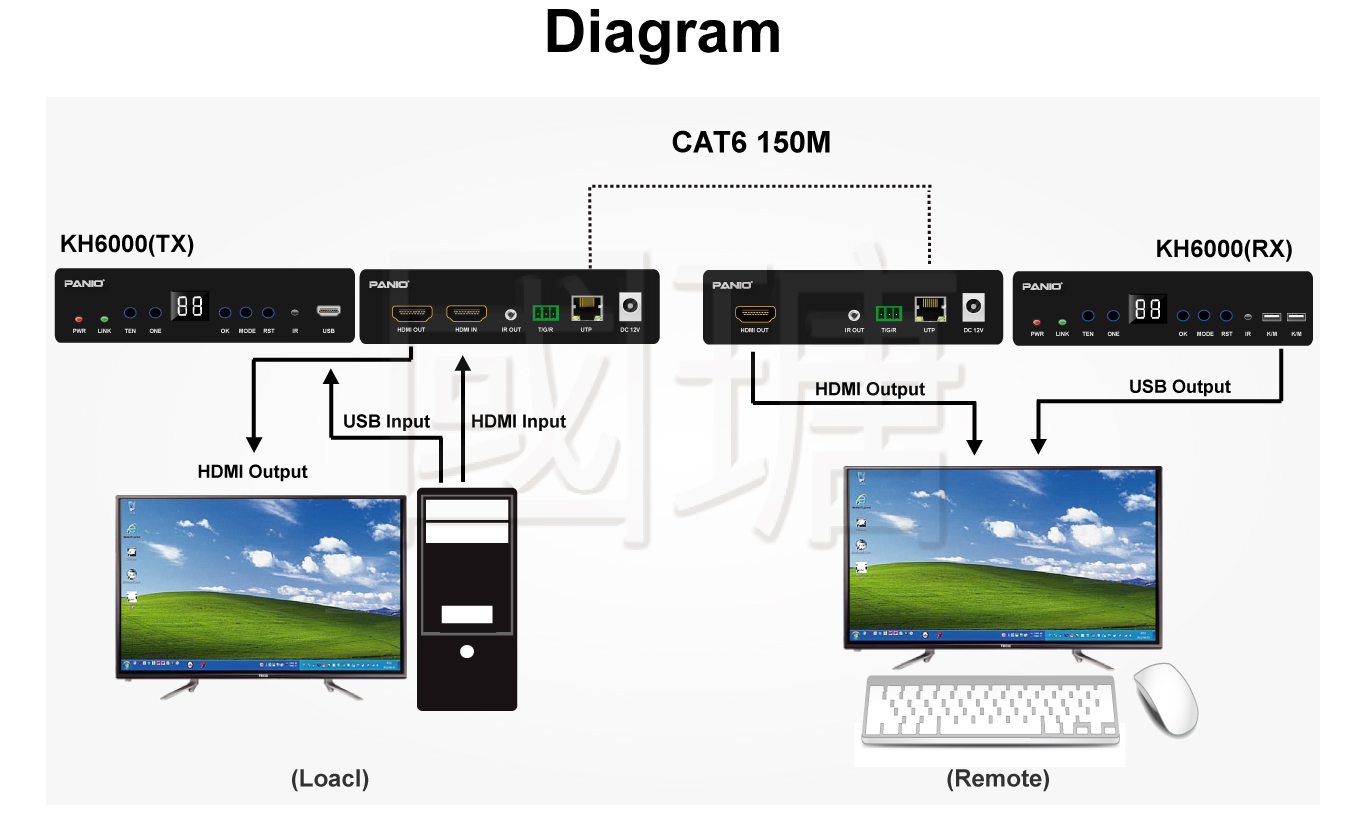

  • The computer host signal extends HDMI+USB mouse and keyboard+RS-232+IR to 150 meters long-distance operation through the network cable.
  • Resolution up to 1920 x 1080 60Hz.
  • The computer has built-in HDMI signal output, which can be connected to a monitor at the near end.
  • Through the extension of Gigabit IGMP network switch, it can reach multiple hosts to multiple console devices.
  • Support HDCP 1.3, HDCP 1.2.
  • Switching Mode: IR/ Button/ RS-232.

Specification

Model Name KH6000
Transmitter port 1 x HDMI output, 1 x HDMI input, 1 x USB input, 1 x IR, 1 x RS-232, 1 x RJ-45 output
Receiver port 1 x HDMI Out, 2 x USB Out, 1 x IR, 1 x RS-232, 1 x RJ-45 In
Supported Resolution Maximum Resolution 1080P @60Hz
IR Support 20-60Khz
Transmission distance Cat6 signal can reach 150 meters, which can be expanded to multiple computer terminals and control terminals through Giga Switch IGMP network switch.
Cable length can be connected to a 28AWG HDMI cable with a maximum length of 5 meters. If the length exceeds this length, it is recommended to use an extender to extend the distance.
Control method Remote control, RS-232, button
Power DC 12V
Dimensions 119 x 82 x 23mm (LxWxH)

Note:

  • Please use a certified HDMI cable to connect the signal.
  • Do not support industrial computer USB keyboard and mouse.
  • To maintain quality stability, please use the original certified power cord.
  • Due to shipping safety considerations, the remote control battery is not provided.
  • It is recommended not to connect to a KVM switch.
  • Do not share with Internet devices, so as not to cause audio and video delay due to insufficient bandwidth.

Package Contents

  • 1 X KH6000-T transmitter
  • 1 x KH6000-R receiver
  • 1 X Remote control (Battery not provided)
  • 2 X 12V adapter
  • 2 X IR cables
  • 1 X User manual
