All-in-One Video Control Center for Central Control Applications

Video Wall • Multiview • Matrix Switching • KVM • RS232 / RS485 / Relay / I/O

KH7000_Lite

Products / Video Wall Processor / AV over IP Central Control Solution

Purpose-Built for Centralized Video Control

KH7000_Lite is an all-in-one 4K AV over IP platform designed for control rooms, operation centers, smart campuses, and integrated command environments. By combining matrix switching, video wall processing, multiview display, and workstation-level KVM control in one device, it helps central operators manage multiple sources and displays through a single network architecture.

Central Control Integration Without Extra Control Boxes

The system supports third-party integration through TCP/UDP commands and hardware control interfaces including RS232, RS485, relay, and I/O, allowing it to communicate with central control processors, automation triggers, room control logic, and event-based workflows. Its server-free and control-box-free architecture simplifies deployment while improving system maintainability.

Video Wall, Matrix, and Multiview on One Platform

KH7000_Lite supports flexible AV over IP topologies including one-to-one extension, one-to-many distribution, many-to-many matrix routing, and video wall or multiview layouts. Each display can show up to 16 signal windows, helping operators monitor multiple live sources simultaneously and make faster switching decisions.

Fast Dispatching with Scene Recall and Real-Time Preview

Operators can preview input and output signals in real time through dedicated software, then store up to 100 custom scene presets for rapid recall. This is especially effective in environments where display layouts must change instantly for alarms, incidents, scheduled presentations, or shift-based operations.

Multi-Layer Control: PC, App, and Central Control System

The platform can be managed from Windows PC software, Android/iOS mobile app, or third-party control systems. This gives system integrators the flexibility to deploy a local workstation interface, a mobile operator interface, or a fully customized control UI that matches project-specific operational workflows.

KVM Workstation for Remote Device Operation

Integrated keyboard and mouse extension enables operators to not only view remote sources, but also directly control connected computers from the workstation side. This is highly valuable in central control rooms where operators need to monitor, switch, and interact with remote systems without relocating physical equipment.

Scalable 4K AV over IP Deployment

With encoder/decoder role switching by software, 4K30 HDMI over IP transmission up to 150 meters over CAT6, PoE support, and recommended 1G IGMP-enabled switching infrastructure, KH7000_Lite offers a scalable deployment path for projects that need to grow from a single room into a wider distributed control network.

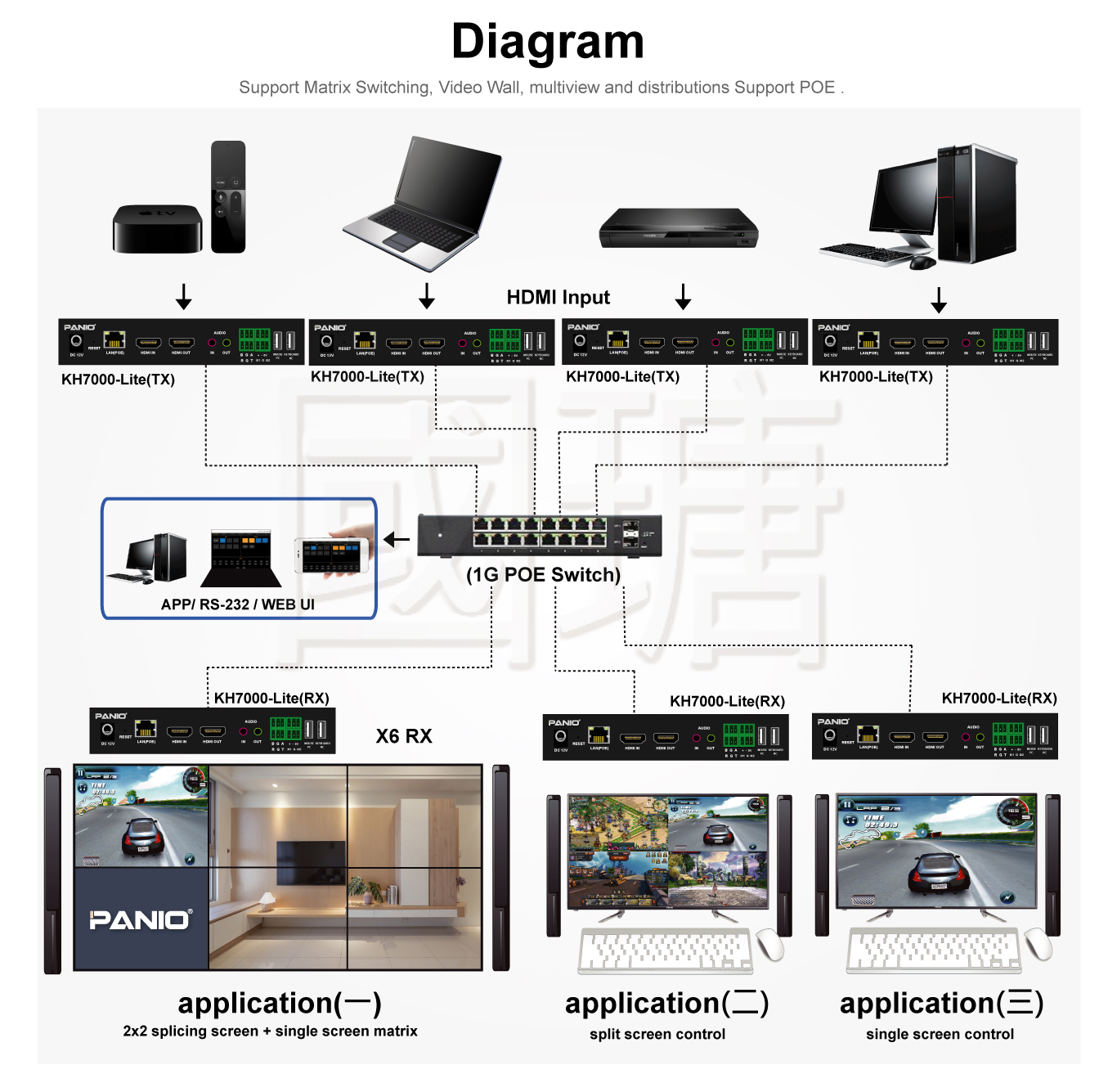

Control Layer Windows Software Mobile APP TCP/UDP / Central Control KH7000_Lite AV over IP Core Matrix Switching · Video Wall · Multiview · KVM Integration I/O RS232 · RS485 Relay · I/O Trigger & Automation Source Devices PCs · Media Players IP Cameras · Decoders 1G IGMP Switch CAT6 / PoE Network Scalable AV Routing Real-Time Dispatch Display Layer Video Wall · Single Display Up to 16 Windows

Traditional Central Control Systems vs. the KH7000 Integrated Control Solution

A quick side-by-side comparison of conventional centralized control architectures and the KH7000 distributed AV over IP approach across system design, hardware, cabling, control integration, scalability, and operational flexibility.

→ Swipe left or right to view the full table
Comparison Item Traditional Central Control System KH7000 Integrated Control Solution
System Architecture Centralized architecture dependent on a dedicated control processor, with all devices routed back to a single controller. Distributed AV over IP architecture with no standalone control processor required. KH7000 transmitters and receivers provide built-in control capability across the network.
Core Hardware Control processor, touch panel, AV matrix switcher, decoders, and amplifiers are typically required, resulting in a larger hardware stack. Requires only KH7000 TX/RX units and a Gigabit PoE switch, combining AV transport, KVM, and control in one platform.
Cabling Method Cable-intensive deployment with HDMI, RS232, audio, power, and network cabling running in parallel. Network-centric cabling. A single Cat6 infrastructure carries AV, KVM, and control signals, simplifying installation.
Power Delivery Each device needs its own power adapter and outlet planning, increasing space and power requirements. PoE support reduces extra power cabling for TX/RX units and enables more flexible wall, under-desk, or behind-display installation.
Control Integration Primarily focused on device triggering. Control, KVM, and AV subsystems are often implemented separately. Unifies AV switching, workstation KVM operation, and device control within one integrated system.
Signal Switching Matrix switching may introduce blackout during transitions, while multiview functions often require additional processors. Supports seamless switching, multiview layouts, and 4K@30Hz transmission, making it well suited to presentations, monitoring, and conferencing.
Commissioning and Maintenance Programming, protocol binding, and system tuning are complex and typically require specialized engineers. Later modifications can also be time-consuming. Graphical configuration software and one-click scene storage make deployment and maintenance more intuitive, even for non-programmers.
Total Cost Higher hardware, installation, and commissioning costs often make traditional systems less efficient for small to medium-sized spaces. Reduces the need for separate control processors and matrix hardware, improving deployment efficiency and total cost performance.
Scalability Adding sources or displays often requires replacing the matrix switcher or control processor, which limits expansion. Expansion is straightforward. Add TX/RX nodes and scale switch ports as needed for larger deployments.
Reliability A control processor failure can affect the operation of the entire system. The distributed architecture reduces single points of failure and provides more flexible maintenance and replacement.
Supports arbitrary placement/zooming/panning and picture-in-picture display on the screen.
System Advantages
  • All-in-One Central Control Platform: Integrates matrix switching, video wall control, multiview display, KVM, and AV over IP extension in a single hardware platform.
  • Third-Party Control Integration: Supports TCP/UDP command control plus RS232, RS485, relay, and I/O interfaces for connection with automation and central control systems.
  • Real-Time Visual Commanding: Dedicated software provides live source preview and rapid routing to operator screens, video walls, and local displays.
  • 100 Preset Scene Memories: Save and recall customized layouts for incidents, shift handover, meeting modes, event control, and emergency dispatch.
  • Flexible Operation Interfaces: Manage the system from Windows PC software, Android/iOS app, or a custom central control UI.
  • Scalable Multiview Deployment: Each display supports up to 16 windows, enabling operators to monitor multiple sources simultaneously from one screen.
  • Encoder/Decoder Software Switching: The same hardware can be assigned as encoder or decoder, reducing spare inventory and simplifying project expansion.
  • PoE-Ready Network Architecture: Uses CAT6 and a recommended 1G IGMP-enabled PoE switch for structured and scalable AV distribution.

Specification

KH7000_Lite Parameter Details
System Positioning All-in-one AV over IP video control center for matrix switching, video wall, multiview, KVM extension, and central control integration
Video Standards HDMI 1.4b, HDCP 1.4
Video Resolution Up to 3840 × 2160 @ 30Hz, backward compatible with lower resolutions
Core Operating Modes 1-to-1 extension, 1-to-many distribution, many-to-many matrix switching, video wall, and multiview
Multiview Capability Up to 16 source windows on a single display
Transmission Distance Up to 150 meters over CAT6 cabling
Network Architecture 1 × RJ45 port, PoE compatible; recommended 1G IGMP-enabled Gigabit switch with PoE support
Control Interfaces Windows PC software, Android/iOS mobile app, third-party TCP/UDP commands, RS232, RS485, relay, and I/O interfaces
KVM & Audio Keyboard and mouse transmission via USB; analog audio input/output plus HDMI-embedded audio handling
Operational Features Real-time signal preview, scene storage up to 100 presets, OSD, EDID management, customizable control UI, encoder/decoder role switching by software
Power Supply DC 12V input or standard PoE (IEEE 802.3af compliant)
Power Consumption 10W typical
Dimensions 175 × 110.5 × 25 mm

Application Scenarios

  • Security Operation Centers: Integrate camera feeds, map systems, access control, and operator workstations into one unified command display environment.
  • Traffic and Transportation Control Rooms: Rapidly switch road, rail, or station data to video walls and recall event-based layouts during congestion or emergency response.
  • Factory Dispatch and Utility Monitoring Centers: Combine SCADA screens, process PCs, alarm dashboards, and maintenance stations for centralized supervision.
  • Corporate NOC / IT Operation Centers: Route server dashboards, alert systems, collaboration screens, and technician workstations across multiple displays with fast preset recall.
  • Smart Campus and Lecture Hall Control: Build an AV management center for classrooms, lecture halls, signage, and operator preview with flexible mobile or software-based control.
  • Government and Emergency Command Rooms: Use scene presets for incident escalation, public briefing mode, dispatch mode, and multi-agency coordination displays.
  • Exhibition and Experience Centers: Manage dynamic source switching, multiview presentation layouts, and synchronized display zones from a single control layer.
  • Meeting Centers with Central Control Integration: Connect room automation logic to relay, I/O, and serial interfaces for fast room startup, display routing, and presentation transitions.

Package Contents

  • 1 × KH7000_Lite Unit
  • 1 × DC 12V Power Adapter
  • 1 × User Manual

Deployment Notes

  • Recommended for use with 1G IGMP-enabled Gigabit Ethernet switches.
  • PoE can simplify distributed installation in control rooms and display networks.
  • Static IP planning is recommended for large central control deployments.
  • Use CAT6 or higher cabling for stable long-distance AV over IP transmission.
  • Ideal for projects requiring custom UI, third-party integration, and rapid scene-based operations.
