KH7100


Multi-to-Multi Remote KVM Computer Manager

Full Support for HDMI, USB Keyboard and Mouse, RS-232, Audio, and IR Signals


Products / KVM Switch

Multi-to-Multi Remote Cross-Control

Multiple control ends can remotely control multiple computers simultaneously, achieving complex matrix-style control.

1-to-Multi Remote Control

A single control end can simultaneously control multiple computers, enabling centralized management of multiple systems.

Multi-to-1 Remote Control

Multiple control ends can monitor a single computer simultaneously, but only one is allowed to operate it, ensuring system security.

Network Switch Transmission

Utilize an IGMP Giga network switch to create a dedicated remote control environment, supporting multi-to-multi, one-to-multi, or multi-to-one configurations to meet diverse application requirements.

Modular Expansion

Easily expand system capacity by adding computer or receiver terminals, offering flexibility to accommodate future needs.

Distributed Remote Control

Effectively manage dispersed computers or control terminals, overcoming the challenges of decentralized management.

Matrix KVM Switch
Feature
  • Ultra-Long Transmission Distance: Extends computer host signals up to 150 meters via network cable, unrestricted by distance.
  • High-Quality Display: Supports resolutions up to 1920x1080 at 60Hz, delivering clear and detailed images.
  • Multi-Functional Integration: Simultaneously transmits HDMI, USB keyboard and mouse, Audio, RS-232, and IR signals to meet various application needs.

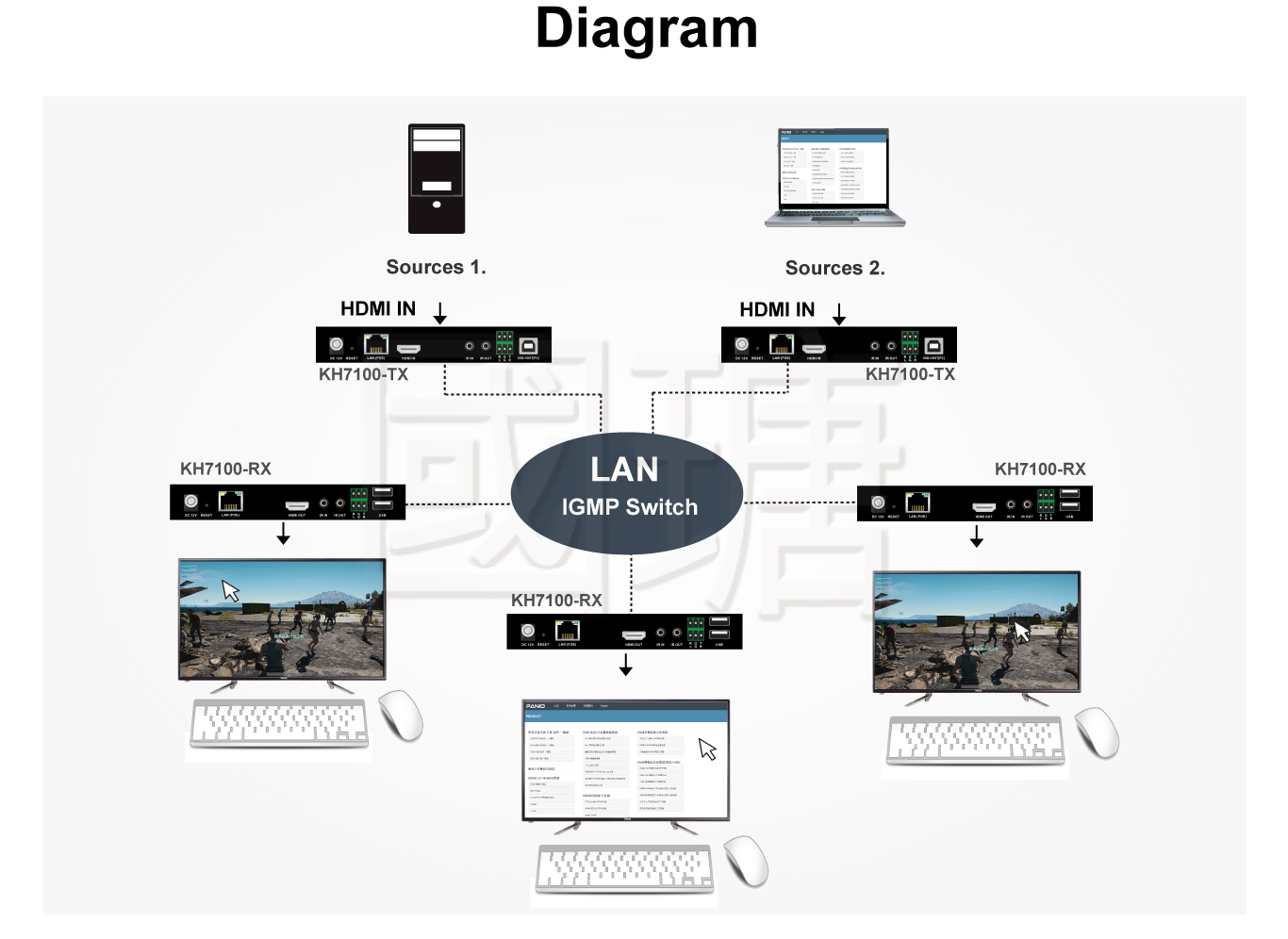

  • Gigabit IGMP Network Switch: Achieves multi-to-multi, one-to-multi, or multi-to-one remote control through a Gigabit network switch, flexibly configuring your system.
  • Built-in HDMI Output on Computer Side: Allows easy connection to a monitor at the near end for monitoring or operation.
  • Seamless Network Integration: Easily integrate your devices into existing networks supporting IGMP. Simply set the devices to the same IP segment for seamless interconnectivity.
  • Professional-Grade Switching Device Supporting Seamless 0-Second Fast Switching.
  • Power over Ethernet (PoE): Supports PoE for simplified power management and reduced cabling.
  • Flexible Signal Switching: Easily switch between signal sources using the built-in OSD on the receiver, or use centralized management software for flexible allocation of computer resources to different users.
  • Flexible Expansion Design: Users can purchase computer or receiver units as needed, reducing unnecessary equipment costs. The system supports configurations up to 255 x 255, offering high flexibility and scalability to meet various application requirements.
  • Panel OLED Display: Features an OLED display to show IP address and other relevant information.

Specification

Model Name KH7100
Transmitter port 1 x HDMI Input, 1 x USB Input, 1 x Audio Phoenix Terminal, 2 x IR Phoenix Terminals, 1 x RS-232 Phoenix Terminal, 1 x RJ-45 Output
Receiver port 1 x HDMI Output, 2 x USB Outputs, 1 x Audio Phoenix Terminal, 2 x IR Phoenix Terminals, 1 x RS-232 Phoenix Terminal, 1 x RJ-45 Input
Supported Resolution Maximum Resolution 1080P @60Hz
Transmission distance For 1-in, 1-out setup: Signal transmission up to 150 meters via Cat6 cable. Using Giga Switch with IGMP enables expansion to multiple computer and control ends.
Cable length Supports HDMI cables up to 5 meters (28AWG) at the input or output end. For longer distances, extenders are recommended to ensure stable signal and transmission quality.
Control method Real-Time Hotkey Switching Technology.
Power supply DC12V 1.5A Power Adapter
Dimensions 155 x 95 x 25 mm(LxWxH) Transmitter/Receiver

Note:

  • HDMI Cables: Use certified HDMI cables to ensure signal transmission quality.
  • Supports most USB keyboard and mouse for computers and surveillance systems, but may not be compatible with some industrial computer USB devices.
  • For product stability, please use the original certified power adapter..
  • Not recommended to connect with KVM switches from other brands. For special requirements, please contact customer service.
  • Avoid sharing with internet equipment that lacks IGMP function to prevent audio and video delay due to insufficient bandwidth.

Package Contents

  • 1 X KH7100-T transmitter
  • 1 x KH7100-R receiver
  • 2 X 12V adapter
  • 2 X IR cables
  • 1 X User manual
