MT01


Dual 4K 7-Inch 3U Rackmount Monitor

Supports HDMI/VGA Signal Input and Integrated Built-In Speakers


Products / Rackmount Monitor

Dual Screen Design

Dual independent screen design enabling simultaneous monitoring of two distinct signal sources.

HDMI + VGA Ports

Each screen supports selectable HDMI and VGA signal switching for flexible input configuration.

Built-In Speakers

Dual integrated speakers (one per screen) for clear audio output alongside visual monitoring.

4K Resolution Support

Supports ultra-high definition 4K resolution (up to 3840x2160 @ 30Hz) for crisp, detailed imaging.

Dual 4K 7-Inch 3U Rackmount Monitor | TAIWAN PANIO
Features

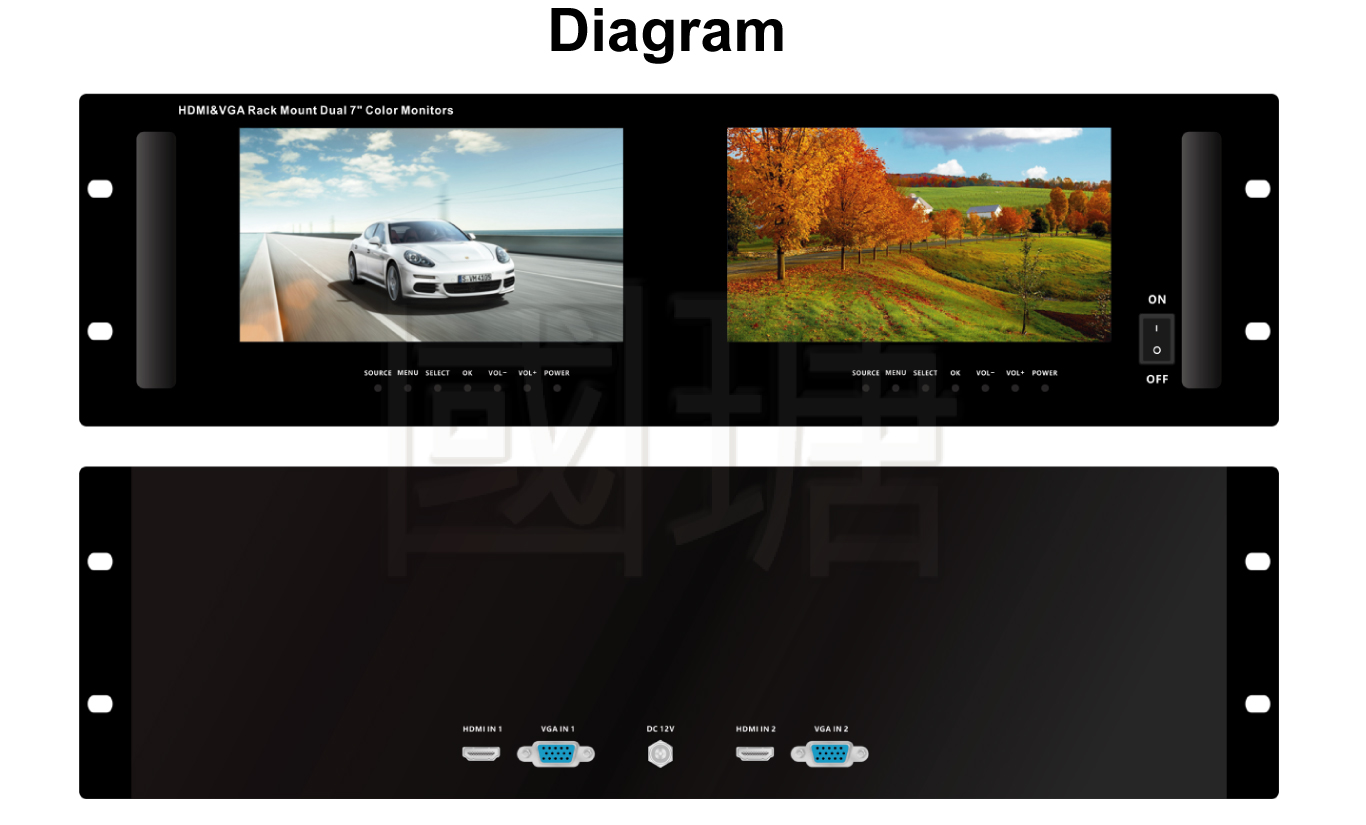

  • 3U rackmount design featuring dual 7-inch monitors, optimized for space-efficient rack integration.
  • Supports 2-channel HDMI+VGA interface switching, allowing flexible signal input selection for each screen.
  • HDMI interfaces support 4K 30Hz ultra-high definition display, delivering sharp and clear visual performance.
  • Dual-screen configuration paired with dual integrated speakers for synchronized audio-visual monitoring.
  • Integrated independent power switches for each screen, enabling individual control and energy efficiency.
  • Adjustable display parameters including brightness, contrast, and color, allowing customization for optimal viewing conditions.
  • Pure hardware architecture supporting plug-and-play functionality, eliminating the need for complex software installation.
  • Physical volume adjustment buttons for convenient audio control during monitoring operations.

Specifications

Model Name: MT01
Input Interfaces 2 Sets of HDMI + VGA Interfaces (1 set per screen)
Resolution HDMI Interface: Up to 3840x2160 @ 30Hz; VGA Interface: Up to 1920x1080 @ 60Hz
Brightness & Color 350 cd/m² Brightness, 262K Color Gamut for vibrant and clear display
Power Supply DC 12V 1.5A Power Supply, ensuring stable and reliable operation
Dimensions (L x W x H) 482 x 134 x 70.5mm

Notes:

  • For optimal 4K performance, use a certified 4K HDMI cable for HDMI signal connections.
  • To ensure stable performance and product longevity, use the factory-provided original power adapter.

Package Contents

  • 1 x MT01 Unit
  • 1 x DC 12V 1.5A Power Adapter
  • 1 x User Manual (English)
